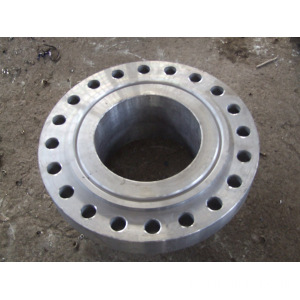

ASME B16.5 A105 Class 300 Carbon Steel Flange

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces
    Delivery Time: 15 Days

Basic Info

Model No.: Steel Flange

Standard: DIN, GB, JIS, ANSI, GOST, BSW

Type: Welding Flange

Material: Carbon Steel

Structure: Lateral

Connection: Welding

Sealing Surface: RF

Manufacturing Way: Forging

Additional Info

Packaging: Wooden Cases or as per buyer's requirements

Productivity: 1000pcs/month

Brand: Bangdong

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

HS Code: 73079900

Port: Tianjin New Port,Zhengzhou Train Station,Beijing Air Port

Product Description

A Slip On Flange(SORF) As made obvious by their name, these pipe flanges slip over the pipe. They're manufactured with an inside diameter that is slightly bigger than the pipe's outside diameter (d). These attachments are connected to the pipe via fillet weld at the top and bottom of the flange.

Bangdong Is One Of The Largest Manufacturer Of Slip On Flanges in China. SS Asme B16.5 Slip On Flanges has excellent resistance to chloride-ion stress-corrosion cracking, and as well shows appropriate resistance to a number of oxidizing environments. ANSI B16.5 Slip On Flanges is very much resistant to chemical corrosion and oxidation (corrosion resistant), and has some high stress-rupture effectiveness and low creep rates under high stresses at temperatures after suitable heat treatment.

Our ASTM A182 Slip On Flanges are accessible to our valuable customers in different range of diameters (d), wall thicknesses (w) and sizes (nom. Pipe Size) in customized form (as per customer requirment or order) and also at quite affordable rates (Best Price In CHINA). Meanwhile, we offer different types of these fitting such as [We Manufacture And Supply Slip On Flange In Other Materials Like :] Stainless Steel Slip On Flanges, Inconel 600 Slip On Flanges, Carbon Steel LF2 Slip On Flanges, Alloy Steel F5 Slip On Flanges, etc.

ASME B16.5 SLIP ON FLANGES, SS 304 BLIND WELD FLANGE, BLIND RAISED FACE FLANGES, ANSI B16.5 CLASS 150 SLIP ON FLANGES DIMENSION, STOCKIST OF STAINLESS STEEL SLIP ON FLANGES, RAISED FACED SLIP ON FLANGES DEALER IN CHINA, ANSI B16.5 SLIP ON FLANGES.

ASME B16.47 SERIES A AND B SLIP ON FLANGES, MANUFACTURER OF SLIP ON FLANGES, BEST PRICE OF DUPLEX STEEL SLIP ON FLANGES, HASTELLOY C22 SLIP ON FLANGE, ALLOY STEEL BLIND SLIP ON FLANGES, NICKEL ALLOY 200 SLIP ON FLANGE, CARBON STEEL SLIP ON FLANGE, MSS SP-44 SLIP ON FLANGES IN CHINA


ASME B16.5 SLIP ON FLANGES DIMENSION :

ASME B16.5 Slip On Flange Dimension

CLASS 150 SLIP-ON FLANGE DIMENSIONS

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts Hole Size ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 90 9.6 30 14 34.9 2 60.3 22.2 4 5/8 M14 0.8
3/4 20 100 11.2 38 14 42.9 2 69.9 27.7 4 5/8 M14 0.9
1 25 110 12.7 49 16 50.8 2 79.4 34.5 4 5/8 M14 0.9
1 1/4 32 115 14.3 59 19 63.5 2 88.9 43.2 4 5/8 M14 1.4
1 1/2 40 125 15.9 65 21 73 2 98.4 49.5 4 5/8 M14 1.4
2 50 150 17.5 78 24 92.1 2 120.7 61.9 4 3/4 M16 2.3
2 1/2 65 180 20.7 90 27 104.8 2 139.7 74.6 4 3/4 M16 3.2
3 80 190 22.3 108 29 127 2 152.4 90.7 4 3/4 M16 3.7
3 1/2 90 215 22.3 122 30 139.7 2 177.8 103.4 8 3/4 M16 5
4 100 230 22.3 135 32 157.2 2 190.5 116.1 8 3/4 M16 5.9
5 125 255 22.3 164 35 185.7 2 215.9 143.8 8 7/8 M20 6.8
6 150 280 23.9 192 38 215.9 2 241.3 170.7 8 7/8 M20 8.6
8 200 345 27 246 43 269.9 2 298.5 221.5 8 7/8 M20 13.7
10 250 405 28.6 305 48 323.8 2 362 276.2 12 1 M24 19.5
12 300 485 30.2 365 54 381 2 431.8 327 12 1 M24 29
14 350 535 33.4 400 56 412.8 2 476.3 359.2 12 1 1/8 M27 41
16 400 595 35 457 62 469.9 2 539.8 410.5 16 1 1/8 M27 54
18 450 635 38.1 505 67 533.4 2 577.9 461.8 16 1 1/4 M30 59
20 500 700 41.3 559 71 584.2 2 635 513.1 20 1 1/4 M30 75
24 600 815 46.1 663 81 692.2 2 749.3 616 20 1 3/8 M33 100

CLASS 300 SLIP-ON FLANGE DIMENSIONS

Size in Inch Size in mm Outer Dia. Flange Thick. Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts Hole Size ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 95 12.7 38 21 34.9 2 66.7 22.2 4 5/8 M14 1.2
3/4 20 115 14.3 48 24 42.9 2 82.6 27.7 4 3/4 M16 1.4
1 25 125 15.9 54 25 50.8 2 88.9 34.5 4 3/4 M16 1.4
1 1/4 32 135 17.5 64 25 63.5 2 98.4 43.2 4 3/4 M16 1.8
1 1/2 40 155 19.1 70 29 73 2 114.3 49.5 4 7/8 M20 2.7
2 50 165 20.7 84 32 92.1 2 127 61.9 8 3/4 M16 3.2
2 1/2 65 190 23.9 100 37 104.8 2 149.2 74.6 8 7/8 M20 4.6
3 80 210 27 117 41 127 2 168.3 90.7 8 7/8 M20 5.9
3 1/2 90 230 28.6 133 43 139.7 2 184.2 103.4 8 7/8 M20 7.7
4 100 255 30.2 146 46 157.2 2 200 116.8 8 7/8 M20 10
5 125 280 33.4 178 49 185.7 2 235 144.4 8 7/8 M20 12.7
6 150 320 35 206 51 215.9 2 269.9 171.4 12 7/8 M20 17.7
8 200 380 39.7 260 60 269.9 2 330.2 222.2 12 1 M24 26
10 250 445 46.1 321 65 323.8 2 387.4 277.4 16 1 1/8 M27 36
12 300 520 49.3 375 71 381 2 450.8 328.2 16 1 1/4 M30 52
14 350 585 52.4 425 75 412.8 2 514.4 360.2 20 1 1/4 M30 75
16 400 650 55.6 483 81 469.9 2 571.5 411.2 20 1 3/8 M33 86
18 450 710 58.8 533 87 533.4 2 628.6 462.3 24 1 3/8 M33 113
20 500 775 62 587 94 584.2 2 685.8 514.4 24 1 3/8 M33 143
24 600 915 68.3 702 105 692.2 2 812.8 616 24 1 5/8 M39 216

CLASS 600 SLIP-ON FLANGE DIMENSIONS

Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 95 14.3 38 22 34.9 7 66.7 22.2 4 M14 1.3
3/4 20 115 15.9 48 25 42.9 7 82.6 27.7 4 M16 1.4
1 25 125 17.5 54 27 50.8 7 88.9 34.5 4 M16 1.8
1 1/4 32 135 20.7 64 29 63.5 7 98.4 43.2 4 M16 2.3
1 1/2 40 155 22.3 70 32 73 7 114.3 49.5 4 M20 3.2
2 50 165 25.4 84 37 92.1 7 127 61.9 8 M16 4.1
2 1/2 65 190 28.6 100 41 104.8 7 149.2 74.6 8 M20 5.9
3 80 210 31.8 117 46 127 7 168.3 90.7 8 M20 7.3
4 100 275 38.1 152 54 157.2 7 215.9 116.1 8 M24 16.8
5 125 330 44.5 189 60 185.7 7 266.7 143.8 8 M27 29
6 150 355 47.7 222 67 215.9 7 292.1 170.7 12 M27 36
8 200 420 55.6 273 76 269.9 7 349.2 221.5 12 M30 52
10 250 510 63.5 343 86 323.8 7 431.8 276.2 16 M33 77
12 300 560 66.7 400 92 381 7 489 327 20 M33 91
14 350 605 69.9 432 94 412.8 7 527 359.2 20 M36 105
16 400 685 76.2 495 106 469.9 7 603.2 410.5 20 M39 150
18 450 745 82.6 546 117 533.4 7 654 461.8 20 M42 182
20 500 815 88.9 610 127 584.2 7 723.9 513.1 24 M42 232
24 600 940 101.6 718 140 692.2 7 838.2 616 24 M48 332

CLASS 900 SLIP-ON FLANGE DIMENSIONS

Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 120 22.3 38 32 34.9 7 82.6 22.2 4 M20 1.8
3/4 20 130 25.4 44 35 42.9 7 88.9 27.7 4 M20 2.3
1 25 150 28.6 52 41 50.8 7 101.6 34.5 4 M24 3.6
1 1/4 32 160 28.6 64 41 63.5 7 111.1 43.2 4 M24 4.1
1 1/2 40 180 31.8 70 44 73 7 123.8 49.5 4 M27 5.5
2 50 215 38.1 105 57 92.1 7 165.1 61.9 8 M24 11.5
2 1/2 65 245 41.3 124 64 104.8 7 190.5 74.6 8 M27 16.5
3 80 240 38.1 127 54 127 7 190.5 90.7 8 M24 12
4 100 290 44.5 159 70 157.2 7 235 116.1 8 M30 24
5 125 350 50.8 190 79 185.7 7 279.4 143.8 8 M33 38
6 150 380 55.6 235 86 215.9 7 317.5 170.7 12 M30 50
8 200 470 63.5 298 102 269.9 7 393.7 221.5 12 M36 78
10 250 545 69.9 368 108 323.8 7 469.9 276.2 16 M36 112
12 300 610 79.4 419 117 381 7 533.4 327 20 M36 148
14 350 640 85.8 451 130 412.8 7 558.8 359.2 20 M39 182
16 400 705 88.9 508 133 469.9 7 616 410.5 20 M42 193
18 450 785 101.6 565 152 533.4 7 685.8 461.8 20 M48 258
20 500 855 108 622 159 584.2 7 749.3 513.1 20 M52 317
24 600 1040 139.7 749 203 692.2 7 901.7 616 20 M64 608

CLASS 1500 SLIP-ON FLANGE DIMENSIONS

Size in Inch Size in mm Outer Dia. Flange Thickness Hub OD Flange Length RF Dia. RF Height PCD Socket Bore No of Bolts ISO Stud Size Weight in kg
A B C D E F G H
1/2 15 120 22.3 38 32 34.9 7 82.6 22.2 4 M20 1.8
3/4 20 130 25.4 44 35 42.9 7 88.9 27.7 4 M20 2.3
1 25 150 28.6 52 41 50.8 7 101.6 34.5 4 M24 3.7
1 1/4 32 160 28.6 64 41 63.5 7 111.1 43.2 4 M24 4.1
1 1/2 40 180 31.8 70 44 73 7 123.8 49.5 4 M27 5.5
2 50 215 38.1 105 57 92.1 7 165.1 61.9 8 M24 9.8
2 1/2 65 245 41.3 124 64 104.8 7 190.5 74.6 8 M27 16.4

STANDARD SLIP ON FLANGES SPECIFICATION

Dimensions : ANSI B16.5, ANSI B16.47 Series A & B, MSS SP44, ASA, API-605, AWWA, Custom Drawings

Size : 1/2" (15 NB) to 48" (1200NB)

Class : 150 LBS, 300 LBS, 600 LBS, 900 LBS, 1500 LBS, 2500 LBS, DIN Standard ND-6,10, 16, 25, 40 Etc.

DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636,DIN2637, DIN2638, DIN2673

BS : BS4504 , BS4504, BS1560, BS10

Flange Face Type : Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)

Coating/Surface Treatment: Antirust Paint, Oil Black Paint, Yellow Transparent, Zinc Plated, Cold and Hot Dip Galvanized

Value Added Services: CNC Machining, Customised Flanges


MATERIAL & GRADES OF ASME B16.5 SLIP ON FLANGES :


Stainless Steel Slip On Flanges :
ASTM A 182, A 240 F 304, 304L, 304H, 316, 316L, 316Ti, 310, 310S, 321, 321H, 317, 347, 347H, 904L



Carbon Steel Slip On Flanges :
ASTM / ASME A/SA 105 ASTM / ASME A 350 , ASTM A 181 LF 2 / A516 Gr.70 A36, A694 F42, F46, F52, F60, F65, F706


Low Temperature Carbon Steel Slip On Flanges : ASTM A350, LF2, LF3


Alloy Steel Slip On Flanges :
ASTM / ASME A/SA 182 & A 387 F1, F5, F9, F11, F12, F22, F91




ASME B16.5 SLIP ON FLANGES BUYERS
  1. Industrial Boilers
  2. Power Plants
  3. Nuclear Plants
  4. Oil & Gas Industry
  5. Refineries
  6. Ship Building
  7. Heat Exchangers
  8. Condensers
  9. Paper & Pulp
  10. Marine Applications
  11. Nuclear Power
  12. Fossil Fuel Power Plants

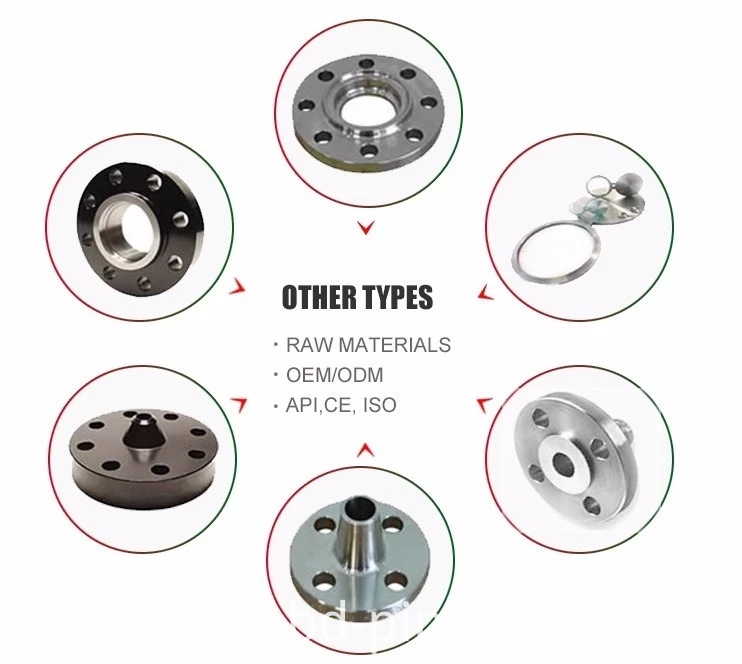

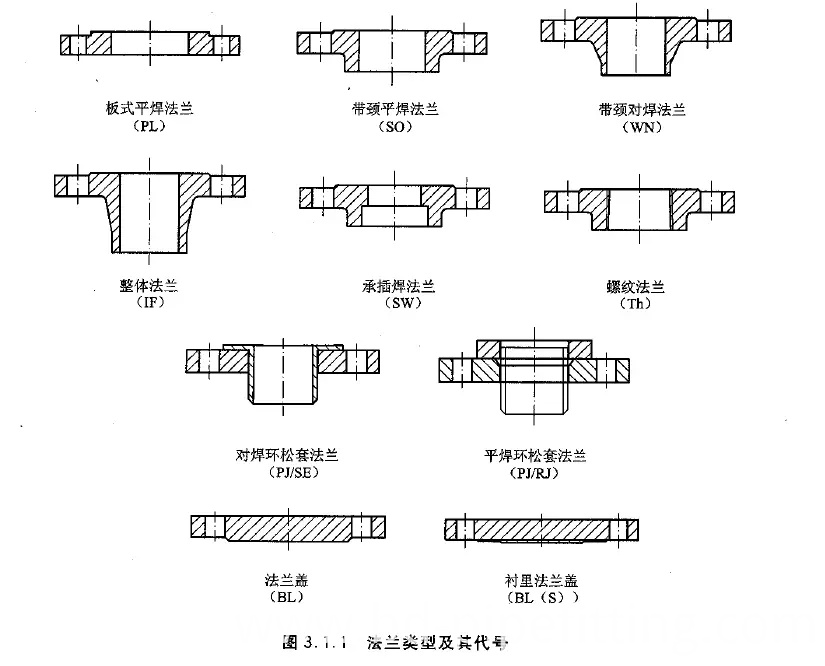

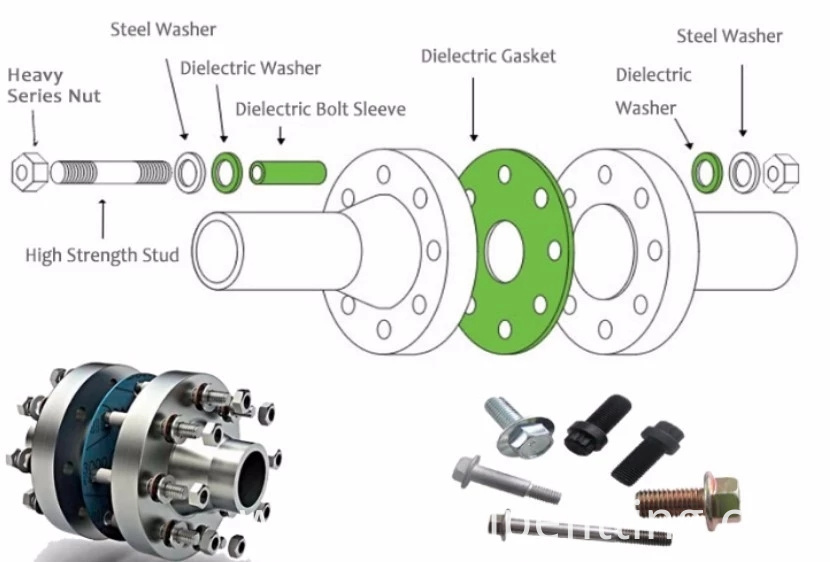

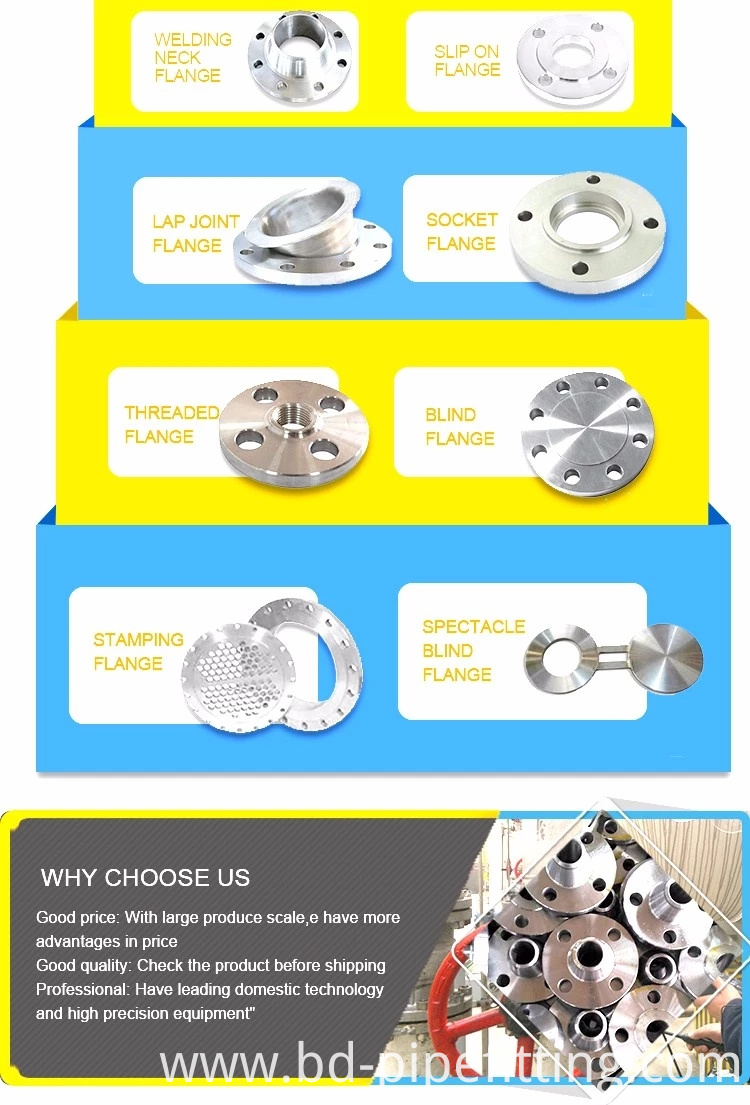

HTB1jpugjsnI8KJjSspeq6AwIpXaE.jpg_.webpHTB1zqAqir_I8KJjy1Xaq6zsxpXaG.jpg_.webp (1)HTB1468kdtHO8KJjSZFLq6yTqVXaZ.jpg_.webpHTB1n5PuPpXXXXcmXXXX760XFXXXh.png_.webp



Bongdong Supply GOST Forged Flange,Forged Plate Flange,316 Slip on Stainless Steel Flange.Weld neck flanges are flanges that are designed to be integrated into piping systems by what industry welders describe as butt welds. The production of these flanges is more expensive because of the long necks that are present. Weld neck flanges are preferred for use in high-stress applications. By welding pipe to the neck of the flange stress is transferred to the pipe. The inside diameter of the flange is machined to match the inside diameter of the tube reducing friction and obstruction of flow. The flanges are also available in some different types of material such as copper, stainless, cast iron, galvanized steel, as well as aluminum. There some advantages when we use this kind of flange along with just a few disadvantages.


Weld Neck Flange Advantages

Suitable for high pressure and high heat applications:
Some of the flange materials such as stainless steel are highly resistant to heat. The extreme pressure that is developed in Piping Applications throughout the industry calls for high-pressure resistance. A welded flange is stronger that a bolt-on flange. The bolt-on flange sometimes calls for a Gasket that could cause leaks.

Reduced friction and interference:
The welded connection will not interfere with the flow of the fluid. With the reduced friction, the fluid will not develop turbulence allowing for less vibration and a smoother flow. Less turbulence will also allow for a quieter operation.

Easier Alignment:
The neck of the flange will allow for a more accurate easier alignment to the pipe saving time. The alignment is also much more precise with less tolerance.

Testing of the pipe and joints are easier:
Radiography test can be much easier to perform because of the easy access the flanges allow.

Durable connection:
Stress on the inside is transferred to the neck of the flange taking the pressure off the pipe allowing for a more permanent connection.

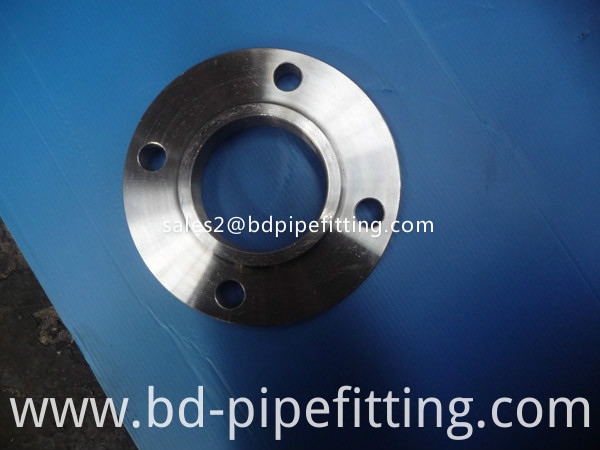

P1500199
