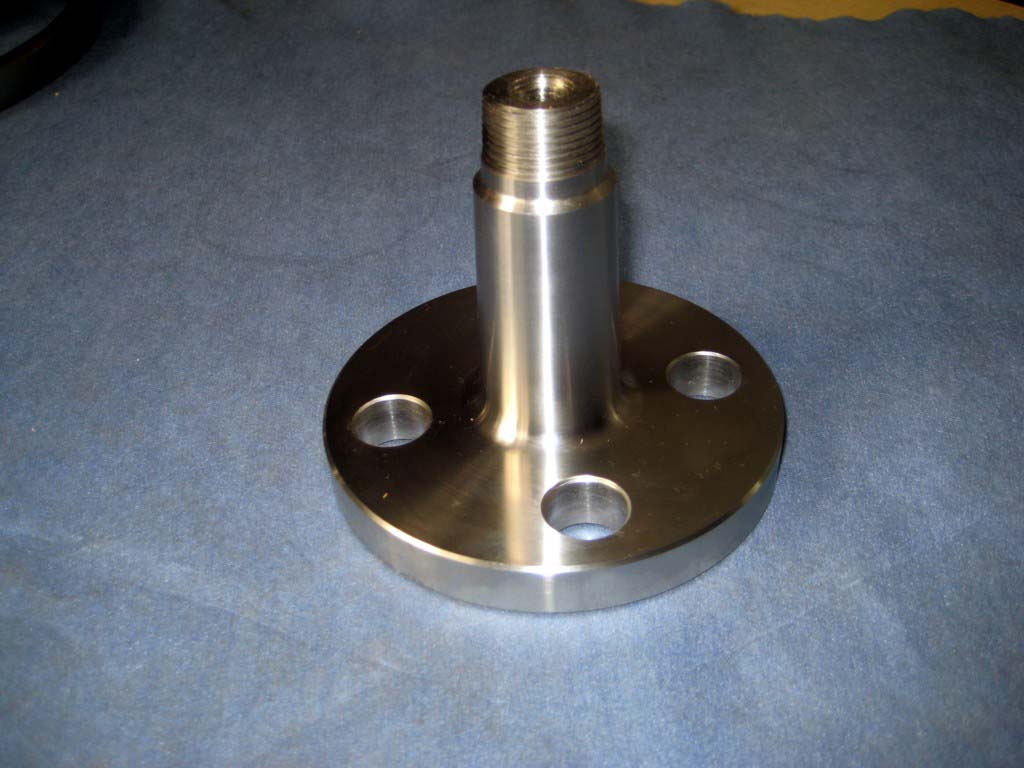

A105 Slip on RF Flange

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces
    Delivery Time: 20 Days

Basic Info

Model No.: slip on flange

Standard: DIN, GB, JIS, ANSI, GOST, BSW

Type: Threaded Connection Flange

Material: Carbon Steel

Structure: Flanges

Connection: Flanged

Sealing Surface: RF

Manufacturing Way: Forging

Additional Info

Packaging: Wooden Cases or Pallet

Productivity: 1000pcs/month

Brand: Bangdong

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou, China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

HS Code: 73079100

Port: Tianjin New Port,Beijing Air Port,Cangzhou Train Station

Product Description

A105 Slip on RF Flange


Bangdong supplies Schedule 80 300lbs Slip On Flange, ANSI B16.5 A105 Carbon Steel Flange, Forged A105 Weld Neck Flange. Slip on pipe flanges are typically provided with a raised or flat face. When a raised face is necessary for slip on pipe flanges, the standard height is 1/16" for slip on pipe flanges under 400#. For slip on pipe flanges of 400# and up, the standard Slip On Pipe Flange raised face height is 1/4". Slip-on flanges are a popular type of pipe flanges. These are type of flanges that slide over the end of piping and then welded in place. These flanges are ideal for lower pressure applications. These are easily fitted and welded into different pipes. Welding reduces fabrication costs of these pipes. These are available in wide variety of sizes and applications.


Material Used:Common materials used are as follows :
Stainless Steel
Brass
Steel
Alloy Steel
Aluminum
Plastics
Titanium
Monels
Carbon steel
Alloy titanium etc.


There are many different flange standards to be found worldwide. To allow easy functionality and interchangeability, these are designed to have standardised dimensions. Common world standards include ASME (USA), DIN (European), BS10 (British/Australian), and JIS/KS (Japanese/Korean).

Pipe flanges that are made to standards called out by Asme B16.5 or ASME B16.47, and MSS SP-44. They are typically made from forged materials and have machined surfaces. ASME B16.5 refers to nominal pipe sizes (NPS) from ½" to 24". B16.47 covers NPSs from 26" to 60". Each specification further delineates flanges into pressure classes: 150, 300, 400, 600, 900, 1500 and 2500 for B16.5, and B16.47 delineates its flanges into pressure classes 75, 150, 300, 400, 600, 900. However these classes do not correspond to maximum pressures in psi. Instead, the maximum pressure depends on the material of the flange and the temperature. For example, the maximum pressure for a Class 150 flange is 285 psi, and for a Class 300 Flange it is 740 psi (both are for ASTM A105 Carbon Steel and temperatures below 100F).

Flange dimensions are determined by the pipe size and the pressure class required for the application. Flanges are standardized according publications from organizations like ASME, MSS, API and others.

ASME/ANSI B16.5flange provides

Flange Type :

Thread Flange

Blind Flange

Slip On Flange

Weld Neck Flange

Spectacle Blind Flange

Spacer & Spade

LWN Flange

Orifice Flange

flange dimensions for pipes ranging 1/2" to 24" - in classes ranging 150 to 2500.

· Steel Pipe Dimensons - Schedule 40

· Steel Pipe Dimensions - Schedule 80



Slip On Flange . A105N Slip On Flange

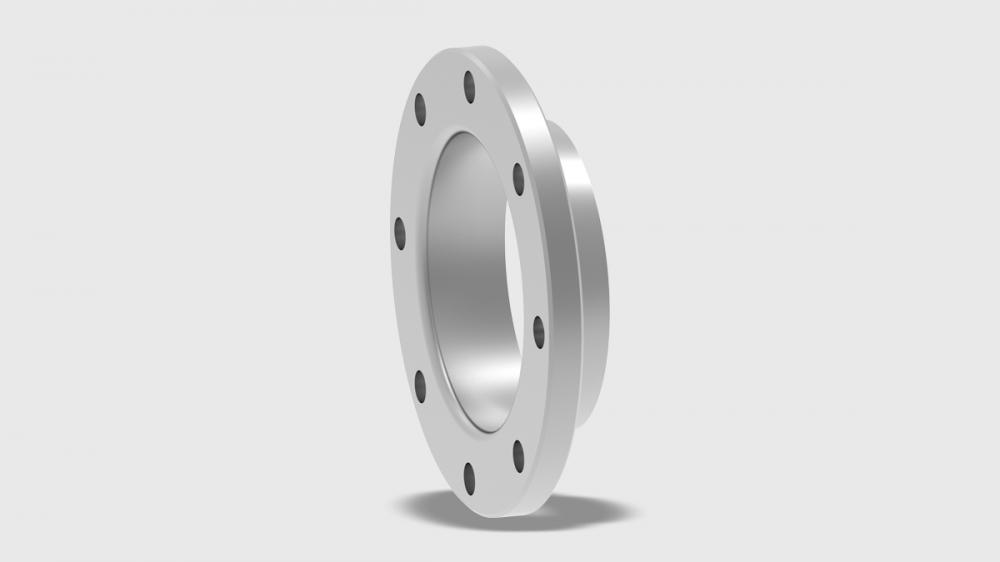

Slip On Flange


Galvanized Slip On Flange . A105N Galvanized Slip On Flange

Galvanized slip on flange


Black painted slip on flange . Black painted carbon steel slip on flange .

Flange Packing




Other forged flanges we could offer :


WN Flange

WN Flange


Blind Flange


Blind flange


Thread flange

2012-6-18 210




Plate Flange


API Flange


API 6A Flange


Spectacle blind


figure 8 blind


Should any forged flanges required , call me freely . One more good prices for your reference


A105 Slip on RF Flange

Looking for ideal Schedule 80 300lbs Slip on Flange Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the ANSI B16.5 A105 Carbon Steel Flange are quality guaranteed. We are China Origin Factory of Forged A105 Weld Neck Flange. If you have any question, please feel free to contact us.
