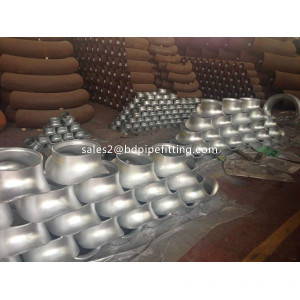

ASTM A403 WP316L BUTT WELD PIPE FITTINGS

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces
    Delivery Time: 15 Days

Basic Info

Model No.: A403 WP316L FITTINGS

Connection: Welding

Shape: Equal

Head Code: Round

Angle: 90 Degree

Wall Thickness: Sch40s

Material: Stainless Steel

Technics: Forged

Certification: ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API

Color: Black

Additional Info

Packaging: Wooden Cases or as per buyer's requirements

Productivity: 1000pcs/month

Brand: Bangdong

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

HS Code: 73079300

Port: Zhengzhou Train Station,Beijing Air Port,Tianjin New Port

Product Description

STANDARD SPECIFICATION FOR WROUGHT AUSTENITIC STAINLESS STEEL WP316L PIPING FITTINGS
A403 316L Pipe Fitting
Specifications : ASTM A403 / ASME SA403
Dimensions : ASME/ANSI B16.9, ASME B16.28, MSS-SP-43

Size : 1/8" NB TO 48" NB. (Seamless & 100% X-Ray Welded, Fabricated)

Type : Seamless / Welded / Fabricated

Items : A403 SS Bend (Long & Short) R=2D,3D,5D,10D Etc
A403 SS Elbow ( 180°, 90° & 45°)
A403 SS Tee (Equal & Unequal)
A403 SS Stubend (Long & Short)
A403 SS Reducer (Con & Ecc)
A403 SS End Cap
A403 SS Nipple (Swage, Barrel)

Thickness : Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS

Asme B16.9 ASTM A403 STAINLESS STEEL 316/316L Pipe Fitting DIMENSIONS :
ASME B16.9 ASTM A403 Stainless Steel 316L Butt Weld Fittings Size Chart

ASME B16.9 ASTM A403 STAINLESS STEEL 316L Butt Weld Pipe Fitting SIZE CHART :

ASME B16.9 Stainless Steel 316L Butt Weld Fittings Dimension
ASME B16.9 Stainless Steel 316L Butt Weld Fittings Dimension


ASTM A403 304/304L Elbow Stainless Steel Pipe Elbow/Bend

Nominal
Pipe
Size
Outside
Diameter
90° Elbows 45° Elbows 180° Returns
(inches)
Long Radius
Short Radius
Long Radius
Long Radius
(mm)
(inches)
Center to Face
(inches)
Center to Face
(inches)
Center to Face
(inches)
Radius
(inches)
Center to Center
(inches)
Back to face
(inches)
1/2
21.3
0.840
1 1/2
5/8
2
1 7/8
3/4
26.7
1.050
1 1/8
7/16
2 1/4
1 11/16
1
33.4
1.315
1 1/2
1
7/8
3
2 3/16
1 1/4
42.2
1.660
1 7/8
1 1/4
1
3 3/4
2 3/4
1 1/2
48.3
1.900
2 1/4
1 1/2
1 1/8
3
4 1/2
3 1/4
2
60.3
2.375
3
2
1 3/8
4
6
4 3/16
2 1/2
73.0
2.875
3 3/4
2 1/2
1 3/4
5
7 1/2
5 3/16
3
88.9
3.500
4 1/2
3
2
6
9
6 1/4
3 1/2
101.6
4.000
5 1/4
3 1/2
2 1/4
7
10 1/2
7 1/4
4
114.3
4.500
6
4
2 1/2
8
12
8 1/4
5
141.3
5.563
7 1/2
5
3 1/8
10
15
10 5/16
6
168.3
6.625
9
6
3 3/4
12
18
12 5/16
8
219.1
8.625
12
8
5
12
24
16 5/16
10
273.1
10.750
15
10
6 1/4
15
30
20 3/8
12
323.9
12.750
18
12
7 1/2
18
36
24 3/8

ASTM A403 WP316L STAINLESS STEEL Pipe Equal/Reducing Tee , CAPS, STUB ENDS AND STRAIGHT CROSSES

Nominal
Pipe
Size
Outside
Diameter
Caps Straight Tees Straight Crosses Stub Ends
(inches)
(mm)
(inches)
Length
(inches)
Center to End
(inches)
Center to End
(inches)
Lap Diameter
(inches)
Long Length
(inches)
Short Length
(inches)
1/2
21.3
0.840
1
1
1 3/8
3
2
3/4
26.7
1.050
1
1 1/8
1 11/16
3
2
1
33.4
1.315
1 1/2
1 1/2
1 1/2
2
4
2
1 1/4
42.2
1.660
1 1/2
1 7/8
1 7/8
2 1/2
4
2
1 1/2
48.3
1.900
1 1/2
2 1/4
2 1/4
2 7/8
4
2
2
60.3
2.375
1 1/2
2 1/2
2 1/2
3 5/8
6
2 1/2
2 1/2
73.0
2.875
1 1/2
3
3
4 1/8
6
2 1/2
3
88.9
3.500
2
3 3/8
3 3/8
5
6
2 1/2
3 1/2
101.6
4.000
2 1/2
3 3/4
3 3/4
5 1/2
6
3
4
114.3
4.500
2 1/2
4 1/8
4 1/8
6 3/16
6
3
5
141.3
5.563
3
4 7/8
4 7/8
7 5/16
8
3
6
168.3
6.625
3 1/2
5 5/8
5 5/8
8 1/2
8
3 1/2
8
219.1
8.625
4
7
7
10 5/8
8
4
10
273.1
10.750
5
8 1/2
8 1/2
12 3/4
10
5
12
323.9
12.750
6
10
10
15
10
6

ASTM A403 WP316L STAINLESS STEEL Pipe Con/Ecc Reducer

Nominal
Pipe Size
Outside
Diameter
Reducers
Reduced from
(inches)
(mm)
(inches)
Reduced to
(inches)
Concentric & Eccentric Length
(inches)
1/2
21.3
0.840
1/4
1 1/2
3/8
1 1/2
3/4
26.7
1.050
3/8
2
1/2
2
1
33.4
1.315
3/8
2
1/2
2
3/4
2
1 1/4
42.2
1.660
1/2
2
3/4
2
1
2
1 1/2
48.3
1.900
1/2
2 1/2
3/4
2 1/2
1
2 1/2
1 1/4
2 1/2
2
60.3
2.375
3/4
3
1
3
1 1/4
3
1 1/2
3
2 1/2
73.0
2.875
1
3 1/2
1 1/4
3 1/2
1 1/2
3 1/2
2
3 1/2
3
88.9
3.500
1
3 1/2
1 1/2
3 1/2
2
3 1/2
2 1/2
3 1/2
3 1/2
101.6
4.000
1 1/4
4
1 1/2
4
2
4
2 1/2
4
3
4
4
114.3
4.500
1 1/2
4
2
4
2 1/2
4
3
4
3 1/2
4
5
141.3
5.563
2
5
2 1/2
5
3
5
3 1/2
5
4
5
6
168.3
6.625
2 1/2
5 1/2
3
5 1/2
3 1/2
5 1/2
4
5 1/2
5
5 1/2
8
219.1
8.625
3
6
3 1/2
6
4
6
5
6
6
6
10
273.1
10.750
4
7
5
7
6
7
8
7
12
323.9
12.750
5
8
6
8
8
8
10
8
20180719155236

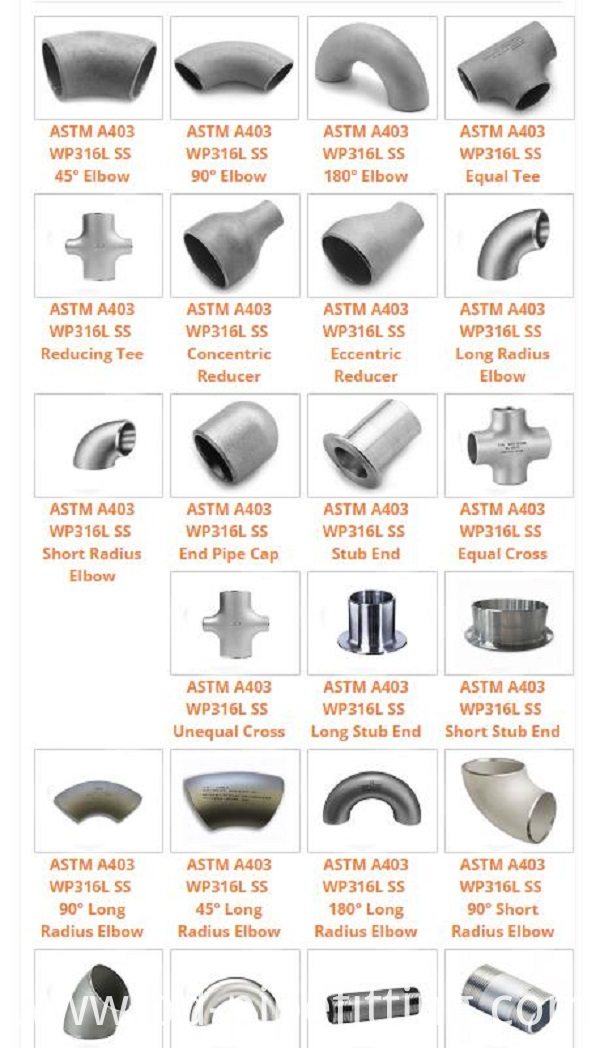

ASTM A403 WP316L STAINLESS Steel Pipe FITTINGS

Seamless/ Welded 100% Radiography Tested

Products Size
ASTM A403 WP316L SS Butt Weld Elbow – Long Radius ASTM A403 WP316L SS Butt Weld Stub Ends Sizes 1/2″ – 48″
ASTM A403 WP316L SS Butt Weld Elbow – Short Radius ASTM A403 WP316L SS Butt Weld Cross
ASTM A403 WP316L SS Butt Weld Reducing Elbow ASTM A403 WP316L SS Butt Weld Reducing Cross
ASTM A403 WP316L SS Butt Weld 45° Elbow ASTM A403 WP316L SS Butt Weld Tees
ASTM A403 WP316L SS Butt Weld Fabricated Tee ASTM A403 WP316L SS Butt Weld End Cap
ASTM A403 WP316L SS Butt Weld Reducer ASTM A403 WP316L SS Butt Weld Coupling
ASTM A403 WP316L SS Butt Weld Concentric Reducer ASTM A403 WP316L SS Butt Weld Pipe Nipple
ASTM A403 WP316L SS Butt Weld Eccentric Reducer ASTM A403 WP316L SS Butt Weld 5D Elbow
ASTM A403 WP316L SS Butt Weld 3D Elbow ASTM A403 WP316L SS Butt Welded Pipe Fittings

ASME SA403 316L STAINLESS STEEL BUTTWELD FITTINGS EQUIVALENT GRADES
STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 316L 1.4435 S31603 SUS 316L 316S11 03Ch17N14M3 Z3CND17‐11‐02 X2CrNiMo17-12-2

CHEMICAL COMPOSITION OF GRADE WP316L STAINLESS Steel Butt Weld Fittings
Grade C Mn Si P S Cr Mo Ni Fe
SS 316L 0.035 max 2.0 max 1.0 max 0.045 max 0.030 max 16.00 - 18.00 2.00 - 3.00 10.00 - 14.00 68.89 min

MECHANICAL PROPERTIES OF ASTM A403 SS 316L Butt Weld Pipe Fittings
Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
8.0 g/cm3 1399 °C (2550 °F) Psi – 75000 , MPa – 515 Psi – 30000 , MPa – 205 35 %
