Company Details
Shijiazhuang Bang dong Pipeline Technology Co,Ltd.
Payment Type: | L/C,T/T |
---|---|
Incoterm: | FOB,CFR,CIF |
Min. Order: | 10 Piece/Pieces |
Model No.: A182
Brand: Bangdong
Material: Stainless Steel
Connection: Welding
Packaging: Wooden Cases or as per buyer's requirements
Productivity: 1000pcs/month
Transportation: Ocean,Land,Air,Train/TNT/DHL
Place of Origin: Cangzhou,China
Supply Ability: 1000pcs/month
Certificate: ISO/CE/API
HS Code: 73079300
Port: Tianjin New Port,Beijing Air Port,Zhengzhou Train Station
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF

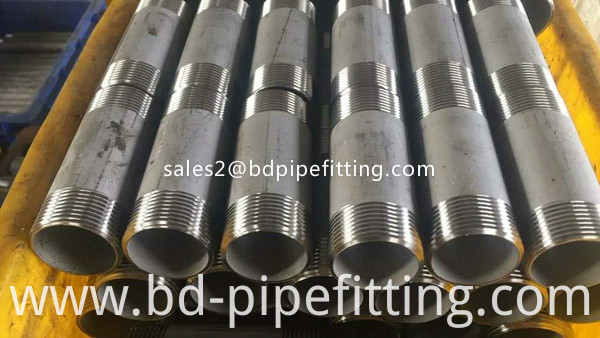

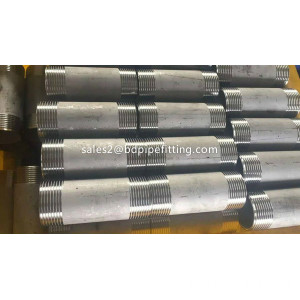

In addition to schedule 40 standard and schedule 80 extra heavy Stainless Steel Nipples, we also offer hex Steel Nipple and king Pipe Nipple – all available in 304 stainless steel and 316 stainless steel. Most of our stainless nipples can be supplied as domestic or import, as well as welded or seamless. We can also custom make any specific length, schedule, grade, or thread combination upon request. Our Steel Nipple Fittings capabilities include in-house nipple threading of National Pipe Threads (NPT), British Standard Pipe Threads (BSPT), as well as sourcing of Metric Threads upon request.
Types: Welded - Seamless
Standard:ANSI/ASME: ASTM A180,ASTM SA182
Dimension:ASME 16.11,MSS SP-79,MSS SP-95,83.97,BS3799
Sizes: 1/8" x Close - 6" x Any Length
Grades: 304 - 316
Class:2000LBS,3000LBS,6000LBS
TYPE:Threaded Pipe Fittings pipe nipple
We supply and export a wide array of plug fittings and bushings that have good impact strength. These plugs and bushings are easy to install pipe plugs for isolation of piping systems during repair, maintenance or testing of damaged lines. Made up of superior quality raw materials, these hex plugs and bushings are highly resistant to wear and tear.
Square Head Plugs | Round Head Plugs | Hex Plugs and Bushings | |||||||
DN | Nominal Pipe Size | Min Length A | Min Square Height B | Min Width Flats C | Nominal Head Diameter, E | Min Length D | Nominal Width Flats, E | Min. Hex Height | |
Bushing G | Plug H | ||||||||
6 | 1/8 | 10 | 6 | 7 | 10 | 35 | 11 | ... | 6 |
8 | 1/4 | 11 | 6 | 10 | 14 | 41 | 16 | 3 | 6 |
10 | 3/8 | 13 | 8 | 11 | 18 | 41 | 18 | 4 | 8 |
15 | 1/2 | 14 | 10 | 14 | 21 | 44 | 22 | 5 | 8 |
20 | 3/4 | 16 | 11 | 16 | 27 | 44 | 27 | 6 | 10 |
25 | 1 | 19 | 13 | 21 | 33 | 51 | 36 | 6 | 10 |
32 | 1 1/4 | 21 | 14 | 24 | 43 | 51 | 46 | 7 | 14 |
40 | 1 1/2 | 21 | 16 | 28 | 48 | 51 | 50 | 8 | 16 |
50 | 2 | 22 | 18 | 32 | 60 | 64 | 65 | 9 | 18 |
65 | 2 1/2 | 27 | 19 | 36 | 73 | 70 | 75 | 10 | 19 |
80 | 3 | 28 | 21 | 41 | 89 | 70 | 90 | 10 | 21 |
100 | 4 | 32 | 25 | 65 | 114 | 76 | 115 | 13 | 25 |
Stainless Steel
ASTM / ASME SA 182 F 304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
Carbon Steel
ASTM / ASME A 105.
ASTM / ASME A 350 LF 2.
Alloy Steel
ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91
Have good stock for A105n Forged Pipe Fittings, Mss Sp-75 PLUG ,A350 Socket Weld Pipe Fitting,A182 Threaded Fittings
Product Categories : Forged Steel Pipe Fitting > Steel Nipple
