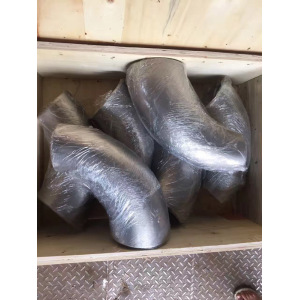

TP316L Reducing Elbow fitting
As a reputed manufacturer , we could offer high quality TP316L reducing elbow fitting , TP316L Pipe Reducing Elbow , 316 Reducing Elbow . If you require other material grade , we have wpb Elbow Reduced , A234Wp11 Elbow , A860Wphy65 Elbow .
If you happen have related inquiry , please kindly send to me, one more choice for you .
Special Elbow or other special Pipe Fitting components also could be manufactured according to the drawings .
Size: 1/2"-48"(DN15-DN1200) - Varieties: SCH5, SCH10, SCH20, SCH30,STD, SGP, SCH40, SCH60,
- XS, SCH80, XXS, SCH100,SCH120,SCH140, SCH160
- Standard: ANSI B 16.9/ANSI B16.28/MSS SP43/MSS P75/JIS2311/JIS 2312/JIS2313/ DIN2616 /GB-12459/GB-T13401,Gost17378
Material: - Carbon steel: Astm A234 GR WPB , ST37.2 , ST35.8
- Alloy steel: A234 WP5/WP9/WP11/WP22/WP91, A420 WPL6,A860 WHPY 42/52/60/65/70/80
- Stainless steel: A403 WP304/TP304 , WP304L/TP304L , WP316/TP316L,WP316L/TP316L, WP321/TP321 , WP310/TP310
ASME/ANSI B16.9
A reducing elbow is a type of fitting which is used to join two pieces of pipe of different sizes. The reducing elbow is so called because it looks like a reducing piece and elbow combined into one. Reducing elbows have different sized openings on each end and hence they can connect two different sized pipes. They are available in different materials, sizes, finishes and colors.
Types of reducing elbow:
The reducing elbows are available in various types like:
· 90° reducing elbow
· 45° reducing elbow
· 135° reducing elbow
· 180° reducing elbow etc.
Dimension of reducing elbow :
| Nominal Pipe Size | Center To End | Weight In Pounds |
| 2 X 1 | 3 | 1.2 |
| 2 X 1 1/4 | 3 | 1.3 |
| 2 X 1 1/2 | 3 | 1.4 |
| 2 1/2 X 1 1/4 | 3.75 | 2.5 |
| 2 1/2 X 1 1/2 | 3.75 | 2.6 |
| 2 1/2 X 2 | 3.75 | 2.8 |
| 3 X 1 1/2 | 4.5 | 3.3 |
| 3 X 2 | 4.5 | 3.6 |
| 3 X 2 1/2 | 4.5 | 4.2 |
| 3 1/2 X 2 | 5.25 | 4.5 |
| 3 1/2 X 2 1/2 | 5.25 | 5.5 |
| 3 1/2 X 3 | 5.25 | 6 |
| 4 X 2 | 6 | 6 |
| 4 X 2 1/2 | 6 | 6.8 |
| 4 X 3 | 6 | 7.7 |
| 4 X 3 1/2 | 6 | 8.4 |
| 5 X 2 1/2 | 7.5 | 10.7 |
| 5 X 3 | 7.5 | 11.8 |
| 5 X 3 1/2 | 7.5 | 12.6 |
| 5 X 4 | 7.5 | 13.4 |
| 6 X 3 | 9 | 16.8 |
| 6 X 3 1/2 | 9 | 17.8 |
| 6 X 4 | 9 | 18.9 |
| 6 X 5 | 9 | 21 |
| 8 X 4 | 12 | 33.1 |
| 8 X 5 | 12 | 36.2 |
| 8 X 6 | 12 | 39.7 |
| 10 X 5 | 15 | 58.5 |
| 10 X 6 | 15 | 63.2 |
| 10 X 8 | 15 | 73 |
| 12 X 6 | 18 | 86.5 |
| 12 X 8 | 18 | 98.4 |
| 12 X 10 | 18 | 113 |
Standard
| Nominal Pipe Size | Center To End | Weight In Pounds |
| 2 X 1 | 3 | 1.7 |
| 2 X 1 1/4 | 3 | 1.8 |
| 2 X 1 1/2 | 3 | 1.9 |
| 2 1/2 X 1 1/4 | 3.75 | 2.9 |
| 2 1/2 X 1 1/2 | 3.75 | 3 |
| 2 1/2 X 2 | 3.75 | 3.4 |
| 3 X 1 1/2 | 4.5 | 4.5 |
| 3 X 2 | 4.5 | 4.9 |
| 3 X 2 1/2 | 4.5 | 5.7 |
| 3 1/2 X 2 | 5.25 | 6.4 |
| 3 1/2 X 2 1/2 | 5.25 | 7.3 |
| 3 1/2 X 3 | 5.25 | 8.2 |
| 4 X 2 | 6 | 8.4 |
| 4 X 2 1/2 | 6 | 9.4 |
| 4 X 3 | 6 | 10.5 |
| 4 X 3 1/2 | 6 | 11.4 |
| 5 X 2 1/2 | 7.5 | 15.1 |
| 5 X 3 | 7.5 | 16.5 |
| 5 X 3 1/2 | 7.5 | 17.4 |
| 5 X 4 | 7.5 | 18.8 |
| 6 X 3 | 9 | 24.9 |
| 6 X 3 1/2 | 9 | 26.3 |
| 6 X 4 | 9 | 27.9 |
| 6 X 5 | 9 | 31.4 |
| 8 X 4 | 12 | 49.5 |
| 8 X 5 | 12 | 54.3 |
| 8 X 6 | 12 | 60.8 |
| 10 X 5 | 15 | 78.5 |
| 10 X 6 | 15 | 86.5 |
| 10 X 8 | 15 | 102 |
| 12 X 6 | 18 | 114 |
| 12 X 8 | 18 | 132 |
| 12 X 10 | 18 | 148 |
| | | |
Stock of Butt Weld Pipe Fitting : Combined Fittings Fitting Components Reducing Elbow Elbow In Different OD Special Elbow Elbow Reduced Reduced Elbow Elbow Reducing
If you require combined fittings , fitting components , special fittings please call me freely .
Product Categories : Butt Weld Pipe Fitting > Reducing Elbow
