Shijiazhuang Bang dong Pipeline Technology Co,Ltd.
Payment Type: | L/C,T/T |
---|---|
Incoterm: | FOB,CFR,CIF |
Min. Order: | 10 Piece/Pieces |
Model No.: Stainless Steel Elbow
Brand: Bangdong
Connection: Welding
Shape: Equal
Head Code: Round
Angle: 90 Degree
Wall Thickness: Sch40s
Material: Stainless Steel
Technics: Forged
Certification: API
Color: Black
Standard: API, ASTM, BS, GB
Packaging: Wooden Cases or as per buyer's requirements
Productivity: 1000pcs/month
Transportation: Ocean,Land,Air,Train/TNT/DHL
Place of Origin: Cangzhou,China
Supply Ability: 1000pcs/month
Certificate: ISO/CE/API
HS Code: 73079300
Port: Zhengzhou Train Station,Beijing Air Port,Tianjin New Port
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF

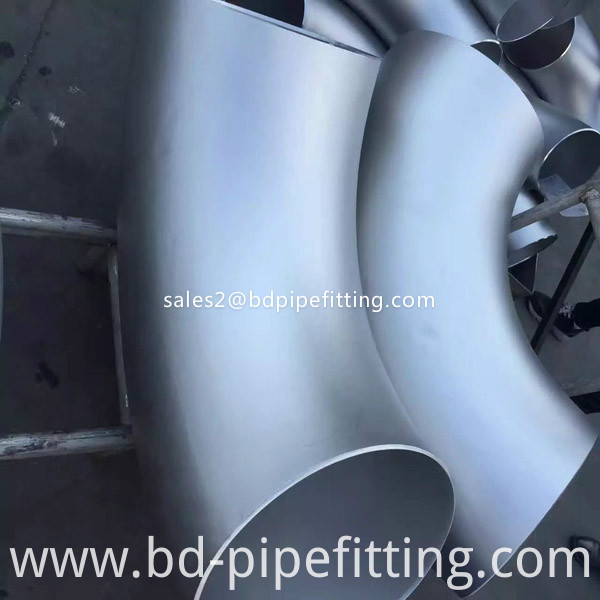

Wp 316 L Asme B16.9 219.1mm 80s 90 Deg. Lr Stainless Steel Elbow
Bangdong Supply Carbon Steel Elbows,A234 (WPA, WPB, WPC) Fittings,Butt Weld Carbon Steel Elbow.We are engaged in producing a wide range of Weld Fittings, Stainless
Fittings, Steel Fittings, Pipe Fittings, Steel Pipe Fittings, Stainless Steel Fittings, Butt Weld Fittings, Carbon Steel Fittings, Stainless Steel Pipe Fittings, all are butt weld, including
Long Radius 90 Degree Elbow, Short Radius 90 Elbow, Extra Long Radius 90 Pipe Elbow, Long Radius 45 Degree Elbow, Short Radius 45 Elbow, Extra Long Radius Elbow 45,
Long Radius 180 Elbow (Pipe Bend), Short Radius 180 Pipe Elbow (180 Return Bend) , Extra Long Radius 180 Tube Elbow (180 Return Bend), Equal Tee , Reducing Tee, Y Branch
Tee, Cross, Reducing Cross, Eccentric Reducer, Concentric Reducer, Lap Joint Stub End and Pipe Cap in stainless steel and carbon steel material.
Type: Seamless 90 Degree Elbow
Material: 316L
Degree: 45 90 180 Degree
Size: 8 Inch (DN200)
Standard: ASME B16.9, SCH80S
Ends: BW
Chemical Composition and Mechanical Property For 316L | |||||||||||
Steel Grade | Chemical Composition | Mechanical Performance | |||||||||
C(Max) | Si(Max) | Mn(Max) | P(Max) | S(Max) | Ni | Cr | Mo | N | Tensile Strength | Yield Strength | |
Mpa | Mpa | ||||||||||
316L | 0.03 | 0.75 | 2.00 | 0.045 | 0.03 | 10.0–14.0 | 16.0–18.0 | 2.00–3.00 | 0.1 | 485 | 170 |
Nominal Pipe Size | Outside Diameter | 90° Elbows | 45° Elbows | 180° Returns | ||||
---|---|---|---|---|---|---|---|---|
(inches) | | Long Radius | Short Radius | Long Radius | Long Radius | |||
| (mm) | (inches) | Center to Face (inches) | Center to Face (inches) | Center to Face (inches) | Radius (inches) | Center to Center (inches) | Back to face (inches) |
1/2 | 21.3 | 0.840 | 1 1/2 | – | 5/8 | | 2 | 1 7/8 |
3/4 | 26.7 | 1.050 | 1 1/8 | – | 7/16 | | 2 1/4 | 1 11/16 |
1 | 33.4 | 1.315 | 1 1/2 | 1 | 7/8 | | 3 | 2 3/16 |
1 1/4 | 42.2 | 1.660 | 1 7/8 | 1 1/4 | 1 | | 3 3/4 | 2 3/4 |
1 1/2 | 48.3 | 1.900 | 2 1/4 | 1 1/2 | 1 1/8 | 3 | 4 1/2 | 3 1/4 |
2 | 60.3 | 2.375 | 3 | 2 | 1 3/8 | 4 | 6 | 4 3/16 |
2 1/2 | 73.0 | 2.875 | 3 3/4 | 2 1/2 | 1 3/4 | 5 | 7 1/2 | 5 3/16 |
3 | 88.9 | 3.500 | 4 1/2 | 3 | 2 | 6 | 9 | 6 1/4 |
3 1/2 | 101.6 | 4.000 | 5 1/4 | 3 1/2 | 2 1/4 | 7 | 10 1/2 | 7 1/4 |
4 | 114.3 | 4.500 | 6 | 4 | 2 1/2 | 8 | 12 | 8 1/4 |
5 | 141.3 | 5.563 | 7 1/2 | 5 | 3 1/8 | 10 | 15 | 10 5/16 |
6 | 168.3 | 6.625 | 9 | 6 | 3 3/4 | 12 | 18 | 12 5/16 |
8 | 219.1 | 8.625 | 12 | 8 | 5 | 12 | 24 | 16 5/16 |
10 | 273.1 | 10.750 | 15 | 10 | 6 1/4 | 15 | 30 | 20 3/8 |
12 | 323.9 | 12.750 | 18 | 12 | 7 1/2 | 18 | 36 | 24 3/8 |
Alloy steel 1D Elbow:
Astm A234 wp1 / wp5 / wp9 / wp11 / wp22 / wp91
Buttwelded Pipe Elbow Production Range
Outside Diameter: Seamless Elbow ( 1/2″~24″), ERW / Welded / Fabricated Elbow (1/2″~48″)
Wall Thickness: 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Bending Radius: R=1D – 10D, 15D, 20D
Product`s Angle: 5° – 180° Elbows, 90° and 1D Elbows, 1D Returns, Short Radius Elbows and Returns
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
Steel Pipe 1D Elbow Production Range
Outside Diameter: Seamless Pipe Bends (1/2″ – 24″), ERW / Welded / Fabricated Pipe Bends (2″ – 36″)
Wall Thickness: 3mm-40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Elbow: R=1D Elbow , 2D Elbow, 3D Elbow, 5D Elbow, 6D Elbow, 8D Elbow, 10D Elbow or Custom
Bending Radius: R=1D Bend , 2D Bend , 3D Bend , 5D Bend , 6D Bend, 8D Bend, 10D Bend or Custom
Product Angle: 0° – 180°
1D Elbow Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel
Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering
1D Elbow Manufacturing Standards
ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43
DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011
EN: EN10253-1, EN10253-2
ASTM A403 – ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.9 – Factory-Made Wrought Fittings Buttwelding
ASME B16.25 – Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns
MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
Product Categories : Butt Weld Pipe Fitting > Pipe Elbow/Bend
