Shijiazhuang Bang dong Pipeline Technology Co,Ltd.
Payment Type: | L/C,T/T |
---|---|
Incoterm: | FOB,CFR,CIF |
Min. Order: | 10 Piece/Pieces |
Model No.: A182
Brand: Bangdong
Material: Alloy
Connection: Welding
Packaging: Wooden Cases or as per buyer's requirements
Productivity: 1000pcs/month
Transportation: Ocean,Land,Air,Train/TNT/DHL
Place of Origin: Cangzhou,China
Supply Ability: 1000pcs/month
Certificate: ISO/CE/API
HS Code: 73079300
Port: Tianjin New Port,Beijing Air Port,Zhengzhou Train Station
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF

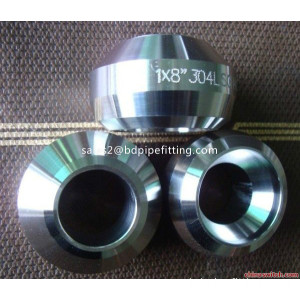

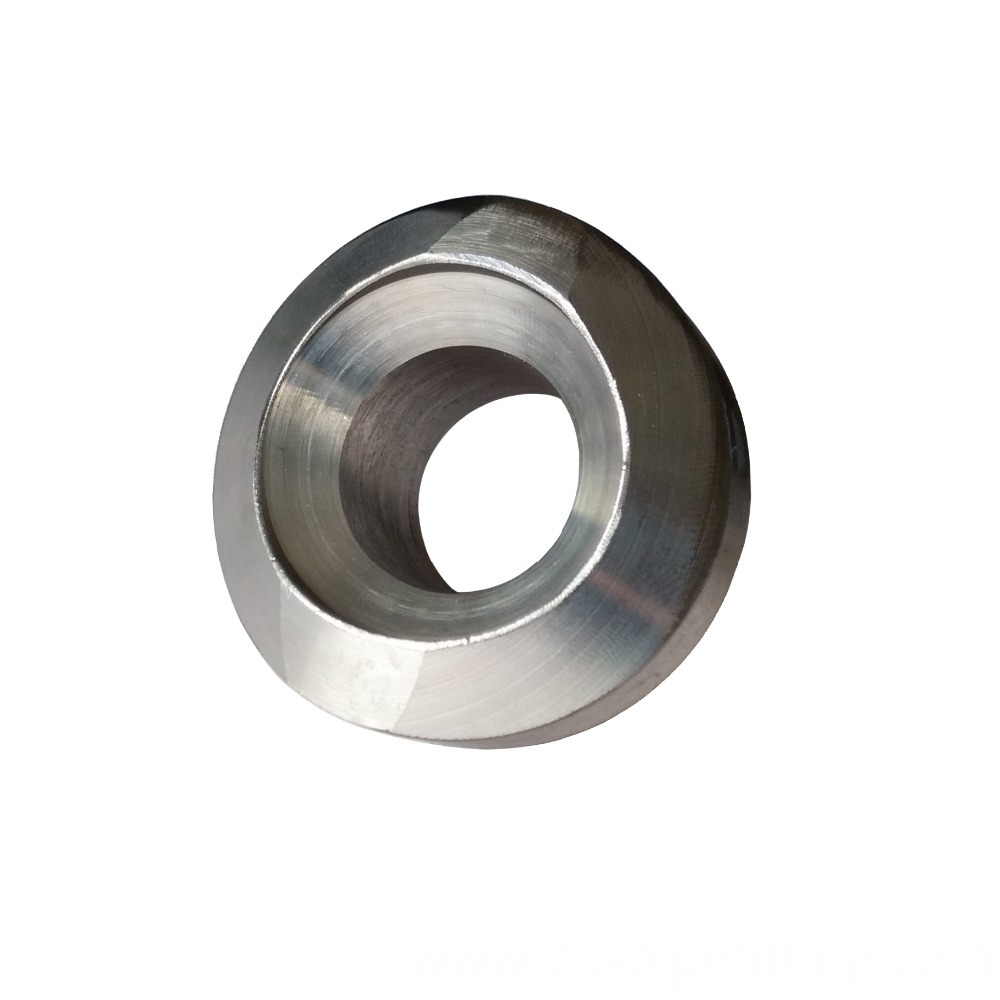

Bangdong is a leading manufacturer of buttweld pipe olets, socket weld and threaded pipe olets in all material grades and wall thicknesses and in compliance with international standard MSS-SP-97. Our production range includes pipe olets such as weldolet, sockolet, Threadolet , laterolet, elbolet, nipolets and sweepolets. We can also manufacture and supply forged Flanged Outlet fitting in Class 150 to Class 2500 flange ratings. Lateral and elbow olets can be supplied in butt-weld, socket-weld, and threaded end connections. Weld pipe Olet or Weldolet is one of the most commonly used branch connection fitting. It is widely considered a buttweld fitting, as it is welded onto the outlet of the pipe. A welding outlet helps in minimizing the stress concentrations and provides integral reinforcement without the need for reinforcing the weld.
We sell NEW, SURPLUS Weldolet.
our existing clients of Weldolet in UAE, Saudi Arabia, South Africa, USA (United States Of America), Malaysia, Singapore, Indonesia, Vietnam, Sri Lanka, Kuwait, Egypt, Netherland, Maxico, Italy any many more countries around the world call us that you are our Weldolet PROFESSIONALS, most of our clients says that we got the material in time, whenever we had urgent requirements of specific grades in Weldolet,
Why Choose Bangdong for your requirement of Forged Weldolet
1) All Sizes, Quantities and Applications to meet out all Your Needs
2) No Automated Answering Machines Here : One On One Customer Service!
3) Central Location in the China for On Time Delivery Of Quality Products!
4) Quality Assurance Department : to Meet out Your Specifications!
5) Specialty Services include Welding, Cutting, Threading, & Painting to meet out Your Special Needs!
6) Bangdong has been an authority in the Weldolet industry for over three decades, we are an industry leader in stocking, manufacturing, and fabricating quality products.
ASTM A182 – ASME SA182 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings
ASME B16.11 – Forged Pipe Fittings Socket – Welding and Threaded Fittings
MSS SP-97 – Integrally Reinforced Forged Branch Outlet Fittings – Socket Welding, Threaded and Buttwelding Ends
Weldolet Specification
Size: 1/8"NB TO 4" NB IN
Class : 150 LBS , 300 LBS, 400 LBS , 600 LBS , 900 LBS
Dimensions:
Outlet: 1/2" à 8"
Run Pipe: 1/2" à 60"
Shape: Equal , Reducing
Thickness: SCH5S / SCH10S / SCH40S / SCH80S / SCH 120S
Method: SEAMLESS AND ERW
Types: BUTT-WELDING, FORGED/CASTING THREAD SOCKET-WELD.
Manufcaturing Process: Push, Press, Forge, Cast, etc.
Stainless Steel Weldolet
Standard : ASTM / ASME A/SA 182
Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.
Carbon Steel Weldolet
Standard : ASTM / ASME A/SA 105 / 350 LF 2 / A 516 GR.70 / IS 2062
Alloy Steel Weldolet
Standard : ASTM / ASME A/SA 182 / A 387
Grade : F5, F9, F11, F12, F22, F91.
Weldolet Dimension
Outlet Nominal Pipe Size | Face to Crotch (L) | |||||
---|---|---|---|---|---|---|
Standard (SCH40S) | XS (SCH80S) | SCH160 | ||||
Réduit | Egal | Réduit | Egal | Réduit | Egal | |
1/8" | 16 | - | 16 | - | - | - |
1/4" | 16 | - | 16 | - | - | - |
3/8" | 16 | - | 19 | - | - | - |
1/2" | 19 | 19 | 19 | 19 | 28 | 28 |
3/4" | 22 | 22 | 22 | 22 | 32 | 32 |
1" | 27 | 27 | 27 | 27 | 38 | 38 |
1 1/4" | 32 | 32 | 32 | 30 | 44 | 44 |
1 1/2" | 33 | 33 | 33 | 32 | 51 | 51 |
2" | 38 | 38 | 38 | 38 | 55 | 55 |
2 1/2" | 41 | 41 | 41 | 41 | 62 | 62 |
3" | 44 | 44 | 44 | 44 | 73 | 73 |
3 1/2" | 48 | 51 | 48 | 51 | - | - |
4" | 51 | 51 | 51 | 51 | 84 | 84 |
5" | 57 | 57 | 57 | 57 | 94 | 94 |
6" | 60 | 60 | 78 | 78 | 105 | 105 |
8" | 70 | 70 | 99 | 99 | - | - |
10" | 78 | 78 | 94 | 89 | - | - |
12" | 86 | 86 | 103 | 100 | - | - |
14" | 89 | 89 | 100 | 105 | - | - |
16" | 94 | 94 | 106 | 113 | - | - |
18" | 97 | 103 | 111 | 119 | - | - |
20" | 102 | 117 | 119 | 127 | - | - |
24" | 116 | 137 | 140 | 140 | - | - |
Conventional Run Size Combinations
Standard Weight Weldolet, Extra Strong Weldolet, | |||||||
Class 3000 Thredolet, Class 3000 Sockolet, Extra Strong Nipolet | |||||||
Run Sizes | Outlet Size Inches | ||||||
1/8 | 1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | |
3/8 | 3/8 | 1/2 | 1/2 | 3/4 | 1 | 1 1/4 | |
1/2 | 1/2 | 1 3/4 | 3/4 | 1 | 1 1/4 | 1 1/2 | |
1 3/4 | 1 3/4 | 1 1/2 - 1 1/4 | 1 | 1 1/2 - 1 1/4 | 1 1/2 | 2 | |
2 1/2 - 1 1/4 | 1 1/2 - 1 1/4 | 36-3 | 1 1/2 - 1 1/4 | 2 1/2 - 2 | 2 | 2 1/2 | |
36-3 | 36-3 | flat | 2 1/2 - 2 | 5-3 | 2 1/2 | 3 1/2 - 3 | |
flat | flat | 8-3 | 12-6 | 3 1/2 - 3 | 5-4 | ||
36-10 | 36-14 | 5 - 4 | 8-6 | ||||
flat | flat | 10 - 6 | 18-10 | ||||
3/4 - 1/2 | 36 - 12 | 36-20 | |||||
36 - 1 | flat | flat | |||||
flat | |||||||
Outlet sizes 8, 10, 12, 14, 16. 18, 24, 26. 20 order to specific size combination. Size consolidation for Weldolets only |
Run Sizes | Outlet Size Inches | |||||||
1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 5 | 6 | |
1 1/2 | 2 | 2 1/2 | 3 | 3 1/2 | 4 | 5 | 6 | |
2 | 2 1/2 | 3 | 3 1/2 | 4 | 5 | 6 | 8 | |
2 1/2 | 3 | 3 1/2 | 4 | 5 | 6 | 8 | 10 | |
3 | 4 - 3 1/2 | 4 | 5 | 6 | 8 | 10 | 14-12 | |
4 - 3 1/2 | 5 | 5 | 6 | 8 | 10 | 12 | 16 | |
6-5 | 6 | 6 | 8 | 10 | 14-12 | 14 | 18 | |
12-8 | 10-8 | 8 | 10 | 14-12 | 20-16 | 18-16 | 22-20 | |
24-14 | 18-12 | 12-10 | 14-12 | 20-16 | 22 | 22-20 | 28-24 | |
36-26 | 36-20 | 18-14 | 20-16 | 36-24 | 36-24 | 28-24 | 36-30 | |
flat | flat | 36-20 | 36-24 | flat | flat | 36-30 | flat | |
flat | flat | flat |
Class 6000 Thredolet, Class 6000 Sockolet, XXS Nipolet | ||||||||
Run Sizes | Outlet Size Inches | |||||||
1/4 | 3/8 | 1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | |
1/2 | 1/2 | 1 3/4 | 1 | 1 1/2 - 1 1/4 | 1 1/2 | 2 | 2 1/2 | |
1 3/4 | 3/4 | 2 - 1 1/4 | 2 1/2 - 1 1/4 | 2 1/2 - 2 | 2 1/2 - 2 | 2 1/2 | 3 | |
2 1/2 - 1 1/4 | 1 | 6 - 2 1/2 | 10-3 | 10-3 | 3 1/2 - 3 | 3 1/2 - 3 | 4 | |
36-3 | 1 1/2 - 1 1/4 | 36-8 | 36-12 | 36-12 | 8-4 | 5-4 | 5 | |
flat | 2 1/2 - 2 | flat | flat | flat | 36-10 | 8-6 | 6 | |
8-3 | flat | 18-10 | 10-8 | |||||
36-10 | 36-20 | 20-12 | ||||||
flat | flat | 36-24 | ||||||
flat |
Schedule 160, XXS Weldolet | |||||||||
Run Sizes | Outlet Size Inches | ||||||||
1/2 | 3/4 | 1 | 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
1/2 | 1 3/4 | 1 | 1 1/2 - 1 1/4 | 1 1/2 | 2 | 2 1/2 | 3 | 4 | |
1 1/4 - 3/4 | 2 - 1 1/4 | 2 1/2 -1 1/4 | 2 1/2 -2 | 2 1/2 - 2 | 2 1/2 | 3 | 3 1/2 | 6 | |
36 - 1 1/2 | 6 - 2 1/2 | 10-3 | 10-3 | 3 1/2 -3 | 3 1/2 -3 | 3 1/2 | 4 | 8 | |
flat | 36-8 | 36-12 | 36-12 | 8-4 | 5-4 | 4 | 5 | 10 | |
flat | flat | flat | 20-10 | 8-6 | 5 | 6 | 12 | ||
22 | 18-10 | 8-6 | 8 | 14 | |||||
36-24 | 36-20 | 12-10 | 10 | 16 | |||||
flat | flat | 18-14 | 12 | 18 | |||||
36-20 | 14 | 20 | |||||||
flat | 16 | 22 | |||||||
18 | 24 | ||||||||
20 | |||||||||
22 | |||||||||
24 | |||||||||
flat |
BN-DS-C12 Pipe Fitting weldolet overall dimensionss
The below standard gives overall dimensions for study purposes of general weldolets.
HEADER | PIPE WEIGHT | WELDOLET SIZE | |||||||||||
SIZE | OR SCH. NR. | 2" | 3" | 4" | 6" | 8" | 10" | 12" | 14" | 16" | 18" | 20" | 24" |
2" | STD-40 XS-80 | 70 | | | | | | | | | | | |
| XXS-160 | 87 | | | | | | | | | | | |
3" | STD-40 XS-80 | 84 | 91 | | | | | | | | | | |
| XXS-160 | 101 | 119 | | | | | | | | | | |
4" | STD-40 XS-80 | 97 | 103 | 111 | | | | | | | | | |
| XXS-160 | 114 | 132 | 144 | | | | | | | | | |
| STD-40 | 124 | 130 | 138 | 148 | | | | | | | | |
6" | XS-80 | 124 | 130 | 138 | 165 | | | | | | | | |
| XXS-160 | 141 | 159 | 171 | 192 | | | | | | | | |
| STD-40 | 149 | 156 | 164 | 176 | 183 | | | | | | | |
8" | XS-80 | 149 | 156 | 164 | 191 | 197 | | | | | | | |
| XXS-160 | 167 | 184 | 197 | 218 | 224 | | | | | | | |
| STD-40 | 176 | 183 | 191 | 205 | 210 | 218 | | | | | | |
10" | XS-80 | 176 | 183 | 191 | 218 | 238 | 235 | | | | | | |
| XXS-160 | 194 | 211 | 224 | 245 | 251 | 265 | | | | | | |
| STD | 202 | 208 | 216 | 228 | 255 | 245 | 251 | | | | | |
12" | XS | 202 | 208 | 216 | 243 | 264 | 267 | 265 | | | | | |
| XXS-160 | 219 | 237 | 249 | 270 | 276 | 291 | 324 | | | | | |
14" | STD | 218 | 224 | 232 | 245 | 251 | 259 | 267 | 270 | | | | |
| XS | 218 | 224 | 231 | 239 | 279 | 270 | 278 | 286 | | | | |
16" | STD | 243 | 249 | 257 | 270 | 276 | 284 | 292 | 295 | 300 | | | |
| XS | 243 | 249 | 257 | 284 | 305 | 293 | 303 | 306 | 319 | | | |
18" | STD | 268 | 275 | 283 | 295 | 302 | 310 | 318 | 321 | 325 | 335 | | |
| XS | 268 | 275 | 283 | 310 | 330 | 321 | 329 | 332 | 338 | 352 | | |
20" | STD | 294 | 300 | 308 | 321 | 327 | 335 | 343 | 346 | 351 | 356 | 376 | |
| XS | 294 | 300 | 308 | 335 | 356 | 346 | 354 | 557 | 364 | 370 | 386 | |
24" | STD | 345 | 351 | 359 | 372 | 378 | 386 | 394 | 397 | 402 | 406 | 411 | 446 |
| XS | 345 | 351 | 359 | 386 | 406 | 397 | 405 | 408 | 414 | 421 | 429 | 449 |
Have good stock for A105N Weldolet,Msssp75 Olet,A350 Socket Weld Pipe Fitting
,
