Company Details
Shijiazhuang Bang dong Pipeline Technology Co,Ltd.
Payment Type: | L/C,T/T |
---|---|
Incoterm: | FOB,CFR,CIF |
Min. Order: | 1 Piece/Pieces |
Model No.: Lateral and Barried Tee
Brand: BD
Type: Angle
Connection: Welding
Material: Carbon Steel
Shape: Equal Tee
Lateral: 45°Tee
Head Code: Round
Wall Thickness: XXS
Finish: Black Painting
Technics: Welded
Pressure Rating: 2000LBS
Standard: ASTM
Certification: BV
Packaging: Wooden Case or Pallet or as per buyer's requirements
Productivity: 1000pcs/month
Transportation: Ocean,Land,Air,DHL/TNT
Place of Origin: Cangzhou,China
Supply Ability: 1000pcs/month
Certificate: ISO/API/CE
HS Code: 73079300
Port: Tianjin New Port,Zhengzhou Train Station,Beijing Air Port
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
We are manufacturer of Lateral Tee Barried Tee and supply high quality Lateral tee Barried Tee in both large and small quantities worldwide & offer you the best prices in the market.
We are manufacturer of Lateral Wye, Lateral Tee, true WYE and supply high quality Lateral Wye, Lateral Tee, true WYE in both large and small quantities worldwide & offer you the best prices in the market.

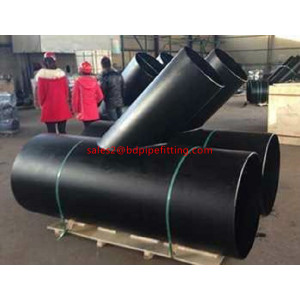

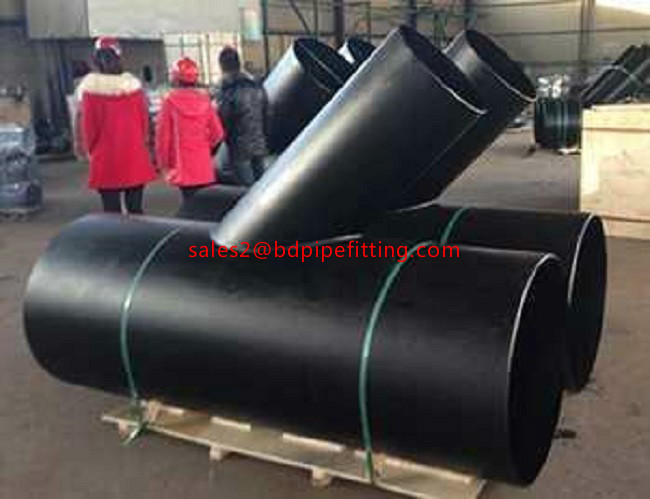

We should analyze this from their shapes:the lateral tee divide two branch pipes:one is same direction with the inflow pipe,the other have a 45 degree angle to inflow pipe. The WYE have two branch pipes at a 45 degree angle between them,and the two branch pipes are symmetrical to the centerline of the inflow pipe which means the two outflow direction are both at 22.5 degree to the inflow direction.
Comparing the two lateral pipe fittings,when the inflow pipe direction is horizontal to the ground,we can choose the lateral tee for better support from ground,and when the inflow pipe direction is vertical,then we`d better use the WYE fitting,it will bring a symmetrical interaction force to the piping system. Such designing will make sure the pipe in a stable support when running.
The latrolet (Lateral Outlet) is one kind of tee fittings,which has a 45 degree branch from a pipeline.
We have a team of experienced professionals with years of experience in manufacturing. Lateral tees are pipe fittings with two outlets, one at 90 ° to the connection to the main line that has tiny holes. Lateral tees can either be extruded or fabricated and are used to connect two pieces of pipe or fittings. Lateral tees are used in pipelines that are pigged.
A860 Wphy52 lateral tee
ASME Butt Weld Seamless Barried Equal Reducing Tee
We have specialization to manufacture customized Asme B16.9 Butt weld Equal Tee per customers` specifications, we welcome small quantity order.
ASME B16.9 Butt Weld Pipe Fitting ,Hot Formed Tee,High Pressure Tee MANUFACTURERS. ASME B16.9 BUTTWELD Barred Tee, ASTM A403 SS ASME B16.9 BUTT WELD BARRED TEES, ASME B16.9 BUTT WELD BARRED TEE DIMENSIONS, ALLOY STEEL ASME B16.9 BUTTWELD BARRED TEE, 304 SS ASME B16.9 BUTTWELD BARRED TEE, HIGH QUALITY ASME B16.9 BUTTWELD BARRED TEE MANUFACTURER OF IN China

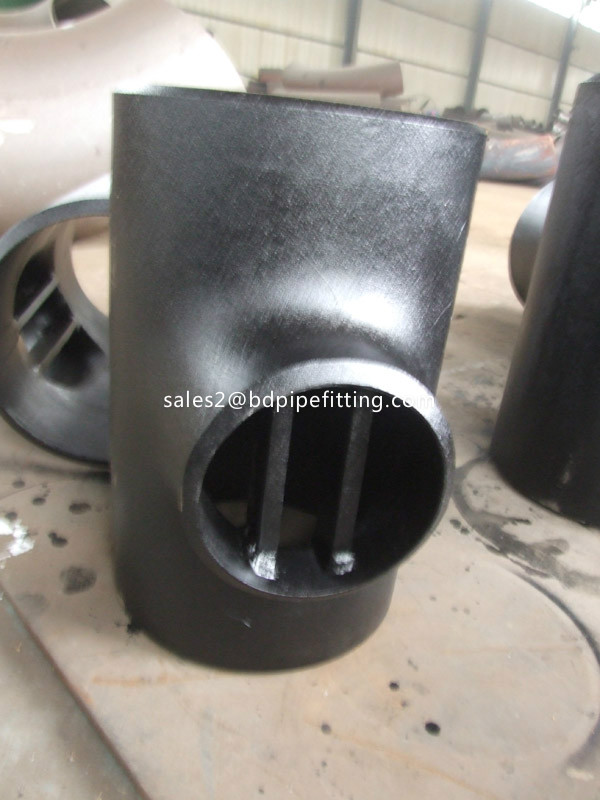

A barred tee is a tee or any fitting with a branch used in pipelines that is pigged and has a restriction bar welded internally preventing the pig from traveling down a branch connection. The bars are installed so they are flush with the inside diameter of the pipeline to keep the pig from hanging up when it passes through. The bars should be of a similar or identical material as the parent material.
Bars are placed on the internal side of a tee or really any branch connection big enough to sidetrack a pig while traveling down a pipeline. The size of the bars on the tee should be small enough so that they do not restrict the flow from the branch connection. However, they should be large enough to prevent breakage based on the flow rate through the branch connection of the tee.
ASME B16.9 Butt weld barred Equal Tee
Standards: ANSI – B 16.9
ASTM A403 – ASME SA403 – `Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings`
ASME B16.9 – `Factory-Made Wrought Buttwelding Fittings"
ASME B16.25 – `Buttwelding Ends`
MSS SP-43 – `Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications`
Schedule: Sch 5 TO Sch XXS.
Variations: Welded & Seamless
Sizes: 1/2" TO 36"
(SEAMLESS UPTO 24")
(WELDED 8" TO 36" )
Materials: Stainless Steel, Alloy Steel, Carbon Steel,
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type: Butt Weld (BW)
Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension: Outside diameter : 1/2" à 24"
(21,34 – 609,5 mm)
Thickness : SCH 5S, 10S, 40S (STD), 80S (XS), 160, XXS
(1,65 – 59.51 mm)
ASME B16.9 Butt weld Equal Tee Godown
Product Categories : Butt Weld Pipe Fitting > Lateral Tee
