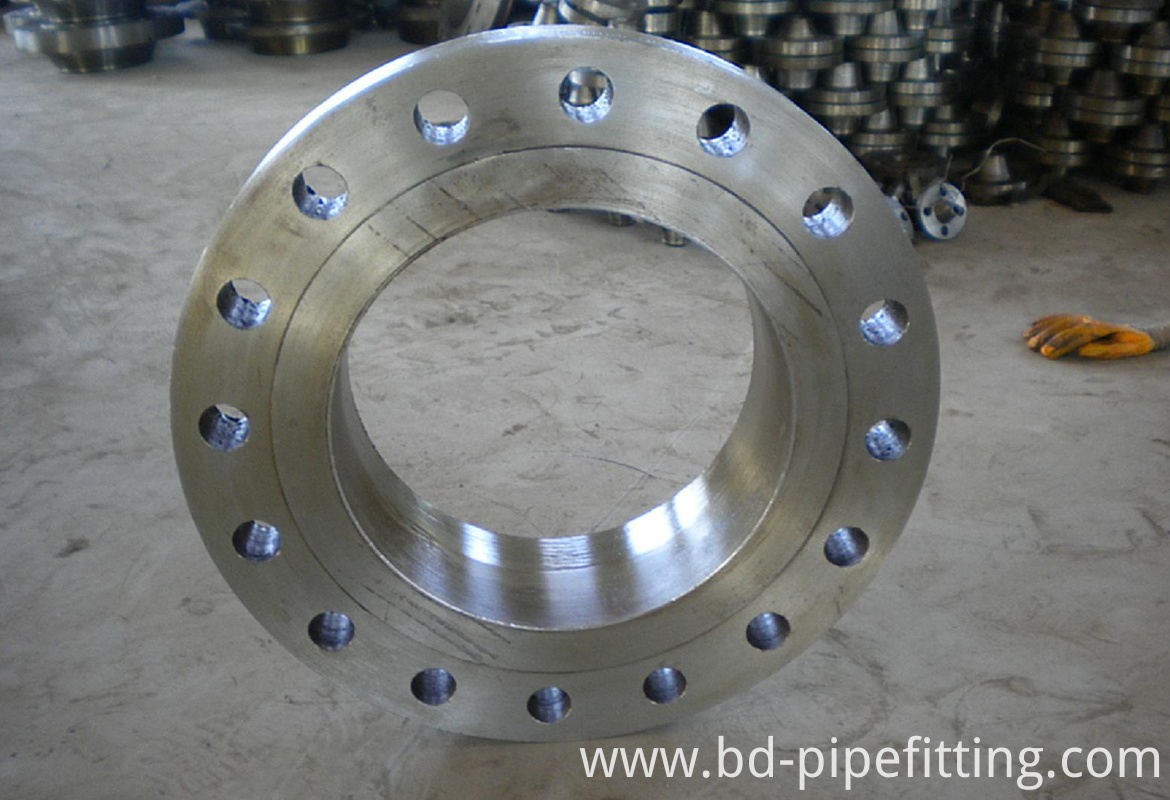

Raised Face Lap Joint Carbon Steel Flange

Raised Face Lap Joint Carbon Steel Flange

Bangdong Supply  Carbon Steel Flanges ,Carbon Steel Socket Welding Flange,Threaded Screwed Carbon Steel.Blind FlangesThe Blind Flange is a flange without a bore. It is used to close off the ends of a piping system and/or a pressure vessel opening. It also permits easy access to the interior of a line of vessel once it has been sealed and must be reopened

Carton Steel  FLANGES continue to be preferred to welding neck flanges by many users on account of their initially lower cost, the reduced accuracy required in cutting the pipe to length, and the somewhat greater ease of alignment of the assembly; however their final installed cost is probably not much, if any, less than that of welding neck flanges. Their calculated strength under internal pressure is approximately two-thirds that of welding neck flanges, and their life under fatigue is about one-third that of the latter. For these reasons, slip-on flanges are limited to sizes ½" to 2 ½" in the 1500 lb standard and are not shown in the 2500lb standard.

Materials :
Carbon Steel: ASTM A105, A350 LF1,LF2 CL1/CL2 LF3 CL1/CL2, ASTM A694 F42,F46,F48,F50,F52,F56,F60,F65,F70
Stainless Steel: ASTM A182 F304/304L, F316/316L, F316H,F316Ti,F321,F44(UNS S31254)
Alloy Steel: ASTM A182 F1,F5/a,F9,F11,F12,F22,F91
Duplex&Super Duplex Steel: ASTM A182 F51/UNS S31803,F53/UNS S32750 F55/UNS S3260

Special Alloy Steel: Monel400,Inconel 600, Inconel 625, Inconel 800, Inconel 825

• Weld Neck
  • STD & XH Bore (Sch160 and XXH also available for some sizes.)
  • Classes 150, 300, 600, 900, 1500
  • Sizes: ½" to 24"

• Slip-On
  • Classes 150, 300, 600
  • Sizes: ½" to 24"

• Threaded
  • Classes 150, 300, 600
  • Sizes: ½" to 6"

• Lap Joint
  • Class 150 only
  • Sizes: ½" to 12"

• Blind
  • Classes 150, 300, 600, 900, 1500
  • Sizes: ½" to 24"

• Socket Weld
  • STD & XH Bore
  • Classes 150, 300, 600
  • Sizes: ½" to 4"
