B16.5 Carbon Steel RF Pipe Flange

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces

Basic Info

Model No.Steel Pipe Flange

BrandBangdong

StandardBSW

TypeWelding Flange

MaterialCarbon Steel

StructureFlanges

ConnectionFlanged

Sealing SurfaceRF

Manufacturing WayForging

Additional Info

PackagingWooden Cases or Pallet

Productivity1000pcs/momth

TransportationOcean,Land,Air,Train/TNT/DHL

Place of OriginCangzhou,China

Supply Ability1000pcs/month

CertificateISO/CE/API

HS Code73079300

PortTianijin New Port,Beijng Air Port,Cangzhou Train Station

Payment TypeL/C,T/T

IncotermFOB,CFR,CIF

Product Description

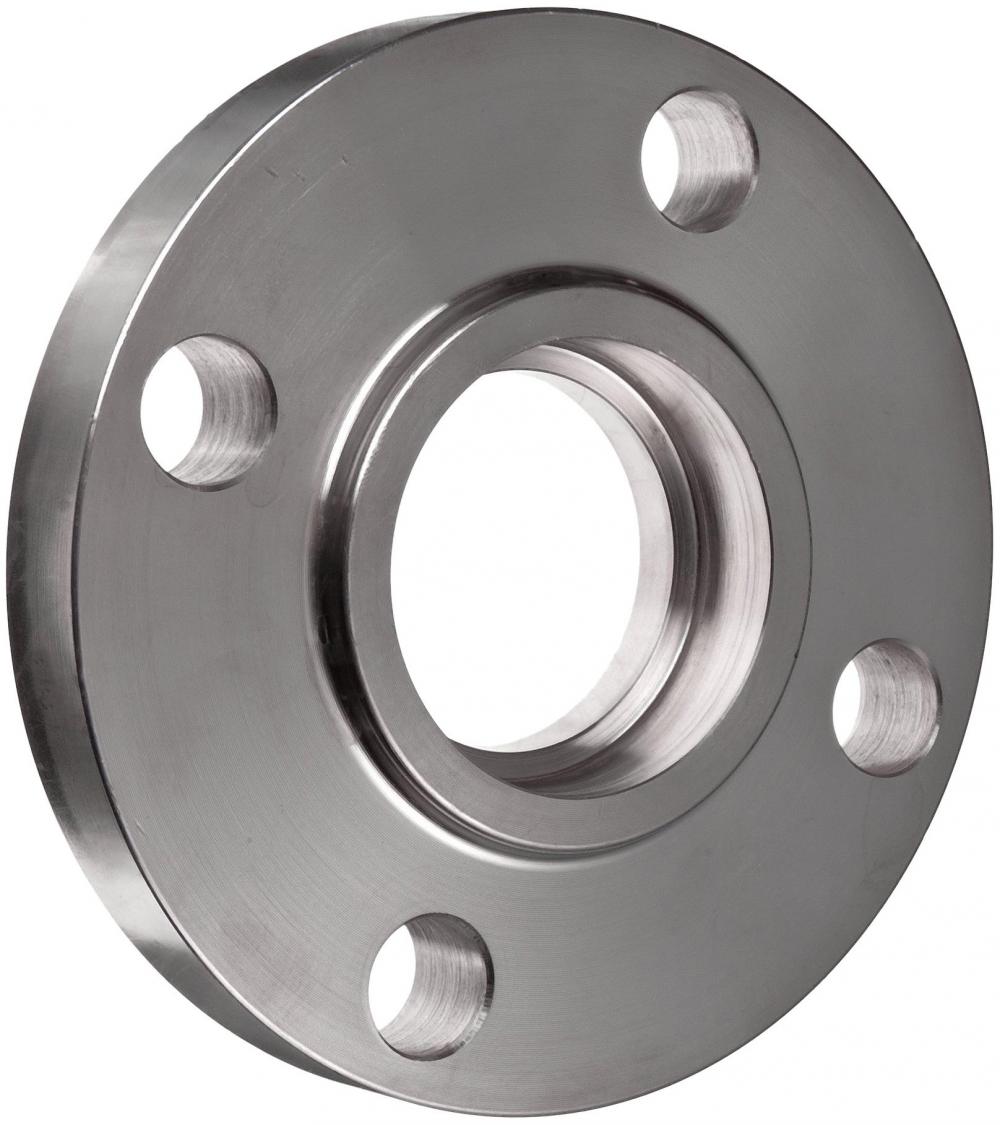

Steel Pipe Flange


A pipe flange connects piping and components in a piping system by use of bolted connections and gaskets. Most commonly used flanges are Weld Neck Flange, Slip On Flange, Blind Flange , socket weld flange, threaded flange and Lap Joint Flange (RTJ Flange). This type of connection in a pipe flange allows for ease of disassembly and separation for repair and regular maintenance. Most common specification for carbon steel and Stainless Steel Flange is ANSI B16.5 / Asme B16.5 .

Metal flanges are commonly used for industrial, commercial, and institutional application. Steel pipe flanges are available in variety of styles and pressure classes. Metal flanges are classified from 150 to 2500 # rating. In addition to specifying pressure class, certain flanges such as weld neck flange & socket weld flange also require specifying the pipe schedule. This ensures the pipe bore will match the bore of the weld neck or socket weld flange.

Bangdong offers wide variety of pipe flanges in carbon steel, stainless steel and nickel alloy. We can also provide special flanges such as long weld neck

 flange, special material request and high-yield pipe flanges.


Pipe flanges that are made to standards called out by ASME B16.5 or ASME B16.47, and MSS SP-44. They are typically made from forged materials and have machined surfaces. ASME B16.5 refers to nominal pipe sizes (NPS) from ½" to 24". B16.47 covers NPSs from 26" to 60". Each specification further delineates flanges into pressure classes: 150, 300, 400, 600, 900, 1500 and 2500 for B16.5, and B16.47 delineates its flanges into pressure classes 75, 150, 300, 400, 600, 900. However these classes do not correspond to maximum pressures in psi. Instead, the maximum pressure depends on the material of the flange and the temperature. For example, the maximum pressure for a Class 150 flange is 285 psi, and for a Class 300 Flange it is 740 psi (both are for ASTM A105 Carbon Steel and temperatures below 100F).
Flange dimensions are determined by the pipe size and the pressure class required for the application. Flanges are standardized according publications from organizations like ASME, MSS, API and others.


Stainless Steel Threaded Flange are available in stock .Has a raised face and is suitable for use with Schedule 40 or 80 Stainless Steel Pipe, in applications with air, water, natural gas, and steam.

Name               Thread Flange
Product Code    S1014TH004N
Flange Type      ANSI
Alloy                   304\304L Stainless Steel
Pressure Rating   150#
Size                       1/2″
Materials               Forged Stainless Steel
Weight                     0.8818
Packing                     - \ -
Size                          1/2″
Display Desc             304/L Stainless Steel Forged 150# ANSI RF Threaded Flange
Product Name               1/2″ 304/L Stainless Steel Forged 150# ANSI RF Threaded Flange
Family Code               S1014TH
ISO                            Manufacturing Facility is ISO 9001:2008
Packing Inner-
Packing Master -
Weight  Lb                0.8818
Thickness              0.44″
Standards              ASME A182 (Forging), ASME B16.5 (Dimensions), ASME B1.20.1 (Threads)
Bolt Hole Size         0.62″
Number Of Bolt Holes   4
Outside Diameter       3.50″
T                                  0.62″
Bolt Circle                    2.38″
Holes Diameter               0.62″
