Shijiazhuang Bang dong Pipeline Technology Co,Ltd.
Model No.: Pipe Flanges
Standard: DIN, GB, JIS, ANSI, GOST, BSW
Type: Welding Flange
Material: Carbon Steel
Sealing Surface: FM
Manufacturing Way: Forging
Packaging: Wooden Case or as per buyer's requirements
Place of Origin: Cangzhou,China
Supply Ability: 1000pcs/month
HS Code: 73079100
Port: Beijing Air Port,Tianjin New Port,Zhengzhou Train Station

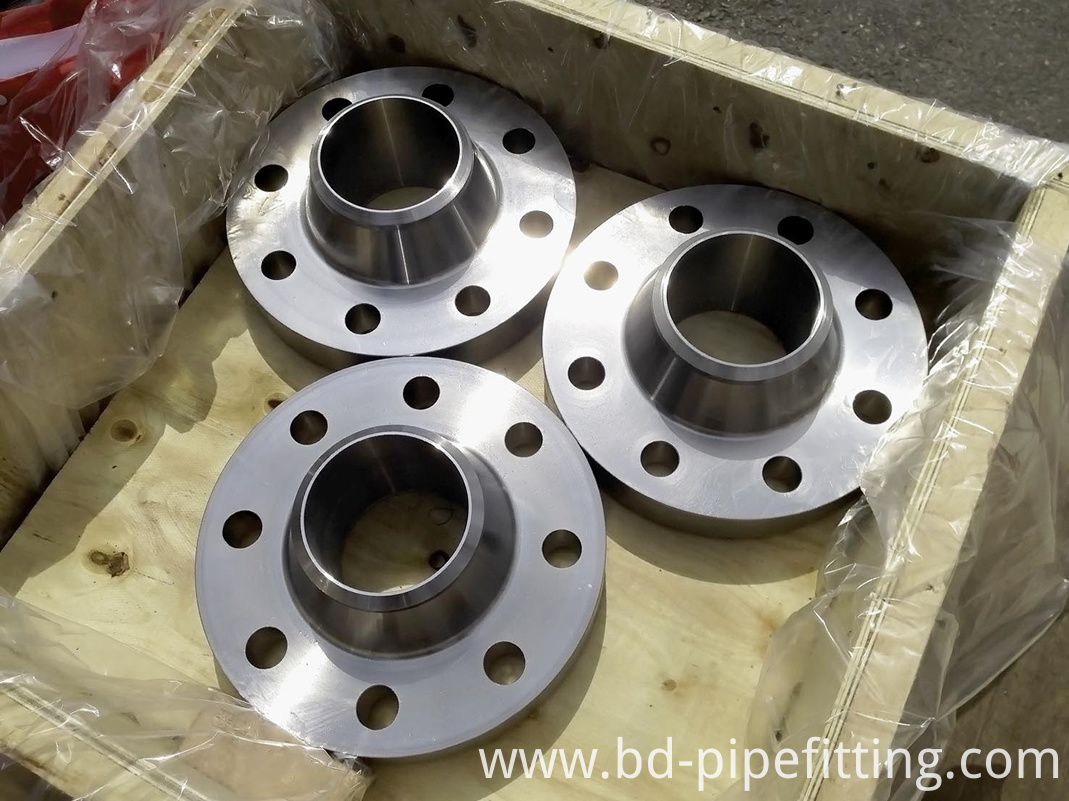

DIN Carbon Steel Welding Neck Forged Flanges
There are many different flange standards to be found worldwide. To allow easy functionality and interchangeability, these are designed to have standardised dimensions. Common world standards include ASME (USA), DIN (European), BS10 (British/Australian), and JIS/KS (Japanese/Korean).
Pipe flanges that are made to standards called out by Asme B16.5 or ASME B16.47, and MSS SP-44. They are typically made from forged materials and have machined surfaces. ASME B16.5 refers to nominal pipe sizes (NPS) from ½" to 24". B16.47 covers NPSs from 26" to 60". Each specification further delineates flanges into pressure classes: 150, 300, 400, 600, 900, 1500 and 2500 for B16.5, and B16.47 delineates its flanges into pressure classes 75, 150, 300, 400, 600, 900. However these classes do not correspond to maximum pressures in psi. Instead, the maximum pressure depends on the material of the flange and the temperature. For example, the maximum pressure for a Class 150 flange is 285 psi, and for a Class 300 Flange it is 740 psi (both are for ASTM A105 Carbon Steel and temperatures below 100F).
Flange dimensions are determined by the pipe size and the pressure class required for the application. Flanges are standardized according publications from organizations like ASME, MSS, API and others.
ASME/ANSI B16.5flange provides
Flange Type :
Slip On Flange
Weld Neck Flange
Spectacle Blind Flange
Spacer & Spade
flange dimensions for pipes ranging 1/2" to 24" - in classes ranging 150 to 2500.
Steel Pipe Dimensons - Schedule 40
Steel Pipe Dimensions - Schedule 80
Looking for ideal A182 F304L Flange Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Carbon Steel Plate FF Flange are quality guaranteed. We are China Origin Factory of DIN Cartbon Steel Flange. If you have any question, please feel free to contact us.
