Astm A105 Long Weld Neck Flange

Astm A105 Long Weld Neck Flange

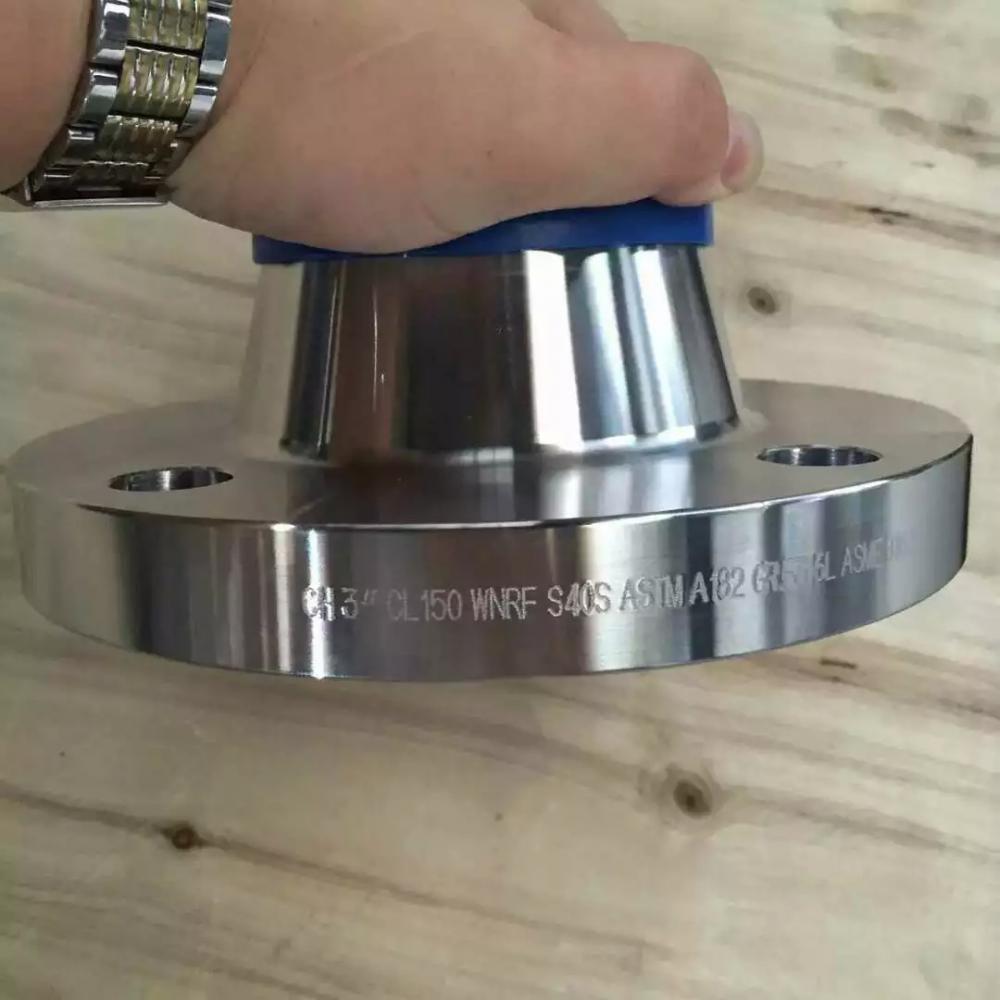

Weld Neck Flanges are flanges that are designed to be joined to a piping system by butt welding. the WN Flange is relatively expensive because of its long neck, but is preferred for high stress applications. The neck, or hub, transmits stresses to the pipe, reducing stress concentrations at the base of the Welding-Neck flanges. The gradual transition of thickness from the base of the hub to the wall thickness at the butt weld provides important reinforcement of the Weld Neck flange. The bore of the Weld-Neck flange matches the bore of the pipe, reducing turbulence and erosion.

Specifications:
Size:
1/2" (15mm) NB TO 24" (600mm) NB (ABOVE 24" NB MAKE TO ORDER BASIS)
Nominal Pressure Range:
150# - 2500#
Schedule:
5S, 10S, 10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160, and XXS
Face Type:
Flate Face (FF), Raised Face (RF), Ring Type Joint (RTJ)
Grades Available:
CARBON STEEL: ASTM A 105, LF 2, LF 3
ALLOY STEEL: ASTM A182 GR. F1, F 5, F 9, F 11, F 22, F 91
STAINLESS STEEL: ASTM A182 GR. 304/304L, 316/316L, 310, 347, 321, 904L
NON FERROUS METALS: COPPER, HASTELLOY C 276, INCONEL 600/625/825, BRASS, MONEL 400/500 ,TITANIUM, TANTALUM, BRONZE, ALUMINIUM, HIGH SPEED STEEL, ZINC, LEAD
Flange Standards:
ANSI : ANSI B16.5, ANSI B16.47, MSS SP44, ANSI B16.36, ANSI B16.48
DIN : DIN2527, DIN2566, DIN2573, DIN2576, DIN2641, DIN2642, DIN2655, DIN2656, DIN2627, DIN2628, DIN2629, DIN 2631, DIN2632, DIN2633, DIN2634, DIN2635, DIN2636, DIN2637, DIN2638, DIN2673
B.S: BS4504, BS4504, BS1560, BS10
