NPT Threaded and Socket Welding Fittings

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces
    Delivery Time: 20 Days

Basic Info

Model No.: P-NPT Threaded and Socket Welding Fittings

Type: Equal

Connection: Female

Material: Carbon Steel

Shape: Equal Tee

Lateral: 90°Tee

Head Code: Round

Wall Thickness: XS

Finish: Black Painting

Technics: Forged

Pressure Rating: 3000LBS

Standard: ASTM

Certification: ISO, API, CE

Additional Info

Packaging: Wooden Cases

Productivity: 1000pcs/month

Brand: Bangdong

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

HS Code: 73079900

Port: Tianjin New Port,Beijing Air Port,Zhengzhou Train Station

Product Description

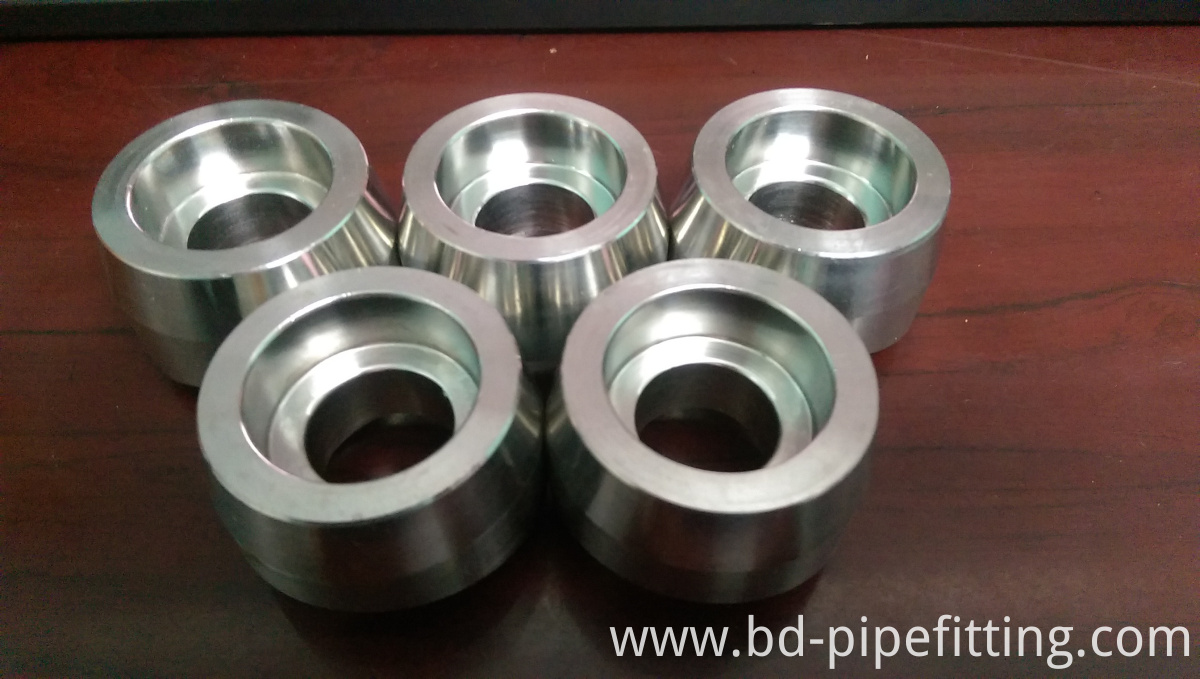

NPT Threaded and Socket Welding Fittings ANSI Standard 3000lbs


Bangdong Supply ASME B16.11 Threaded Fittings,Socket Weld and Threaded Fittings,Forged High Pressure Pipe Fittings.Threaded joints probably represent the oldest method of joining piping systems. Like Socket Weld fittings, threaded fittings are mainly used for small pipe diameters (Small Bore Piping); generally for piping whose nominal diameter is NPS 2 or smaller.
The dimensional standards for taper pipe threads are given in ASME B1.20.1. That document gives all required dimensions including number of threads per inch, pitch diameter, and normal engagement lengths for all pipe diameters.
Threaded piping is commonly used in low-cost, noncritical applications such as domestic water, fire protection, and industrial cooling water systems.
Threaded fittings are normally made of cast gray or malleable iron, cast brass or bronze, or forged alloy and carbon steel.
They are available in three pressure ratings: Class 2000, 3000 and 6000.

NPT Thread
All fittings on this page are described, are provided with NPT thread, ASME B1.20.1. The American National Pipe Thread Tapered, is the best known and most widely used connection where the pipe thread provides both the mechanical joint and the hydraulic seal. NPT has a tapered male and female thread

Advantages and Disadvantages of Threaded Fittings
ADVANTAGES
Installation productivity is moderately high, and specialized installation skill requirements are not extensive.
Leakage integrity is good for low-pressure, low-temperature installations where vibration is not encountered.
DISADVANTAGES
Rapid temperature changes may lead to leaks due to differential thermal expansion between the pipe and fittings.
Vibration can result in fatigue failures of screwed pipe joints due to the high stress intensification effects caused by the sharp notches at the base of the threads.
In hazardous piping systems threaded connections should be avoided, if possible. Their vulnerability to fatigue damage is significant, especially where exposed threads are subject to corrosion.


If you require any Thread Pipe Fitting , Stainless Steel Threaded Fittings , Weld Threaded Socket Fittings please contact me freely .


We also have good stock for Socket Weld Pipe Fitting , Forged Elbow , forged tee , Thread Pipe Fitting


NPT Threaded and Socket Welding Fittings ANSI Standard 3000lbs

Looking for ideal ASME B16.11 Threaded Fittings Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Socket Weld and Threaded Fittings are quality guaranteed. We are China Origin Factory of Forged High Pressure Pipe Fittings. If you have any question, please feel free to contact us.
