ASME B16.11 ASTM A105 Full Coupling

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Piece/Pieces

Basic Info

Model No.Full Coupling DN100

BrandBangdong

ConnectionMale

StructureDisc

Flexible or RigidFlexible

MaterialCarbon Steel

StandardStandard

Additional Info

PackagingWooden Case or as per buyer's requirements

Productivity1000pcs/month

TransportationOcean,Land,Air,Train/TNT/DHL

Place of OriginChina

Supply Ability1000pcs/month

CertificateCE/API/ISO

HS Code73079300

PortTianjin New Port,Beijing Air Port,Qingdao Port

Payment TypeL/C,T/T

IncotermFOB,CFR,CIF

Product Description

ASME B16.11 ASTM A105 Full Coupling


We  have the experience of 15 years in Full Coupling business. We can meet your EXACT SPECIFICATIONS in Full Coupling

We sell NEW, SURPLUS Full Coupling.

our existing clients of Full Coupling in India, UAE, Saudi Arabia, South Africa, USA (United States Of America), Malaysia, Singapore, Indonesia, Vietnam, Sri Lanka, Kuwait, Egypt, Netherland, Maxico, Italy any many more countries around the world call us that you are our Full Coupling PROFESSIONALS, most of our clients says that we got the material in time, whenever we had urgent requirements of specific grades in Full Coupling,


Full Coupling Producer, Full Coupling Manufacturers, Full Coupling Production, Full Coupling inventory, Full Coupling Dealers, Full Coupling Suppliers, Full Coupling Price, Full Coupling Factory, Full Coupling Godown, Full Coupling Stockyard, Full Coupling Exporters, Full Coupling Brand, Full Coupling Stockist.

Thread Pipe Fitting

Socket Weld Pipe Fitting

Forged Steel Pipe Fitting





Full Coupling Specification



Description Class Designation
2000 3000 6000
Elbows 45 and 90 degrees
Tees, Crosses, Coupling
Half-Coupling, End Cap
1/2 - 4 1/2 - 2 1/2 - 2
1/2 - 4 1/2 - 2 1/2 - 2
1/2 - 4 1/2 - 2 1/2 - 2
Pipe Wall SCH 80 and XS SCH 160 XXS



Material:

Stainless Steel ASME B16.11 Threaded Full Coupling

ASTM / ASME SA 403 GR WP "S" / "W" / " WX" 304 , 304L, 304H, 304N, 304LN, 309, 310H, 316, 316H, 317, 317L, 321, 321H, 347, 347 H

Carbon Steel ASME B16.11 Threaded Full Coupling

ASTM / ASME A 234 WPB, WPC
ASTM / ASME A860 Wphy52,A860 Wphy60 ,A860 Wphy70,WPHY 46, WPHY 65



Socket Weld Coupling Dimensions

pipe coupling dimensions



Threaded Coupling Dimensions

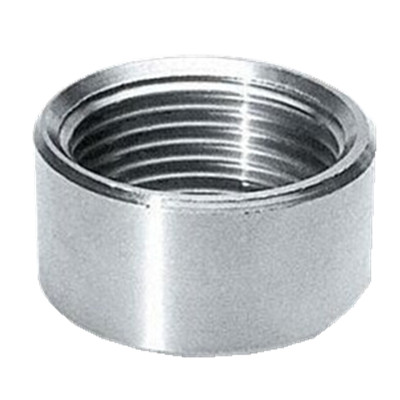

half coupling dimensions

NOMINAL PIPE SIZE END TO END MINIMUM LENGTH OF  THREAD OUTSIDE DIAMETER
Inch. Full Coupling Half Coupling # 3000 # 6000
A A/2 B C D D
1/8 32 A/2 6.7 6.4 16 22
1/4 35 A/2 10.2 8.1 19 25
3/8 38 A/2 10.4 9.1 22 32
1/2 48 A/2 13.6 10.9 28 38
3/4 51 A/2 13.9 12.7 35 44
1 60 A/2 17.3 14.7 44 57
1 1/4 67 A/2 18 17 57 64
1 1/2 79 A/2 18.4 17.8 64 76
2 86 A/2 19.2 19 76 92
2 1/2 92 A/2 28.9 23.6 92 108
3 108 A/2 30.5 25.9 108 127
4 121 A/2 33 27.7 140 159
All Dimensions are in mm

Pipe Fittings Dimensions Tolerance as per Asme B16.9

Dimension Tolerance

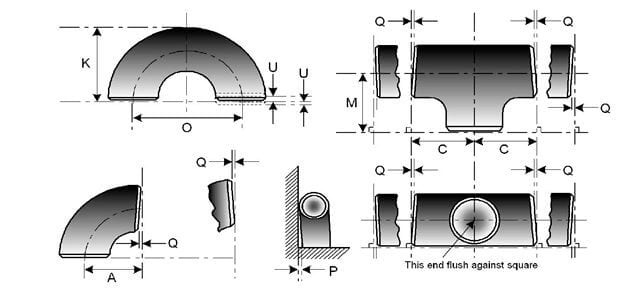

NOMINAL PIPE SIZE ALL FITTINGS ALL FITTINGS ALL FITTINGS ELBOWS AND TEES 180 DEG RETURN BENDS 180 DEG RETURN BENDS 180 DEG RETURN BENDS REDUCERS CAPS
NPS O.D. at Bevel (1), (2) I.D. at End
(1), (3), (4)
Wall Thickness (3) Centre-to-End Dimension A,B,C,M Centre-to-Centre O Back-to-Face K Alignment of Ends U Overall Length H Overall Length E
½ to 2½ 0.06
-0.03
0.03 Not less than 87.5% of nominal thickness 0.06 0.25 0.25 0.03 0.06 0.12
3 to 3 ½ 0.06 0.06 Not less than 87.5% of nominal thickness 0.06 0.25 0.25 0.03 0.06 0.12
4 0.06 0.06 Not less than 87.5% of nominal thickness 0.06 0.25 0.25 0.03 0.06 0.12
5 to 8 0.09
-0.06
0.06 Not less than 87.5% of nominal thickness 0.06 0.25 0.25 0.03 0.06 0.25
10 to 18 0.16
-0.12
0.12 Not less than 87.5% of nominal thickness 0.09 0.38 0.25 0.06 0.09 0.25
20 to 24 0.25
-0.19
0.19 Not less than 87.5% of nominal thickness 0.09 0.38 0.25 0.06 0.09 0.25
26 to 30 0.25
-0.19
0.19 Not less than 87.5% of nominal thickness 0.12 - - - 0.19 0.38
32 to 48 0.25
-0.19
0.19 Not less than 87.5% of nominal thickness 0.19 - - - 0.19 0.38
NOMINAL PIPE SIZE NPS ANGULARITY TOLERANCES ANGULARITY TOLERANCES ALL DIMENSIONS ARE GIVEN IN INCHES. TOLERANCES ARE EQUAL PLUS AND MINUS EXCEPT AS NOTED.
Off Angle Q Off Plane P (1) Out-of-round is the sum of absolute values of plus and minus tolerance.
(2) This tolerance may not apply in localized areas of formed fittings where increased wall thickness is required to meet design requirements of ASME B16.9.
(3) The inside diameter and the nominal wall thicknesses at ends are to be specified by the purchaser.(4) Unless otherwise specified by the purchaser, these tolerances apply to the nominal inside diameter, which equals the difference between the nominal outside diameter and twice the nominal wall thickness.
½ to 4 0.03 0.06
5 to 8 0.06 0.12
10 to 12 0.09 0.19
14 to 16 0.09 0.25
18 to 24 0.12 0.38
26 to 30 0.19 0.38
32 to 42 0.19 0.50
44 to 48 0.18 0.75


Astm A105 A105n Full Half Coupling


Asme B16.11 Astm A105 Full Coupling Dn100

Carbon Steel Pipe Cap Plug Coupling Nipple

Astm A105 A105n Full Half Coupling


Stainless Steel Female Threaded Full Coupling

Product Categories : Forged Steel Pipe Fitting > Thread Pipe Fitting
