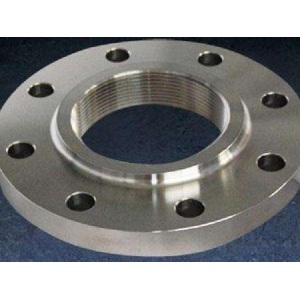

ASME/ANSI B16.5 Class 150 TH Screwed Flanges

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces
    Delivery Time: 20 Days

Basic Info

Model No.: Screwed Flanges

Standard: DIN, GB, JIS, ANSI, GOST, BSW

Material: Carbon Steel

Manufacturing Way: Forging

Type: Threaded Connection Flange

Structure: Flanges

Connection: Screws

Sealing Surface: FF

Additional Info

Packaging: Wooden Cases or as per buyer's requirements

Productivity: 1000pcs/month

Brand: Bangdong

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

HS Code: 73079900

Port: Zhengzhou Train Station,Tianjin New Port,Beijing Air Port

Product Description

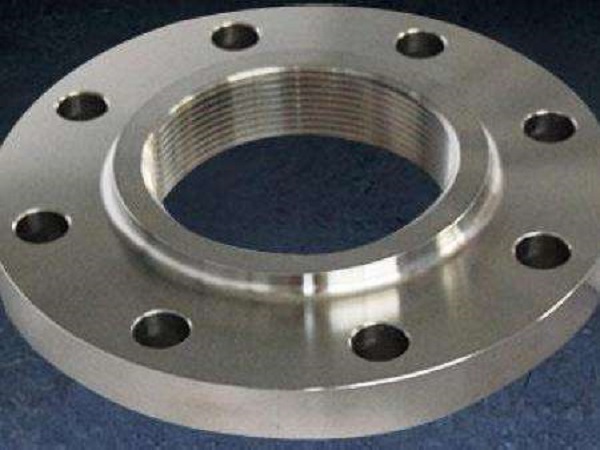

Screwed Flanges

This flange is referred to as either threaded or screwed. It is used to connect other threaded components in low pressure, non-critical applications.

The various types of Thread Flange are as follows:

  • Plain Threaded Flanges
  • Female Threaded Flanges
  • Male Threaded Flanges

No welding is required.

Types of Screwed Flanges
Standards, Dimensions & Weight
  • ANSI/ Asme B16.5 Class 150 TH
  • ASME/ANSI B16.5 Class 300 TH
  • ASME/ANSI B16.5 Class 600 TH
  • ASME/ANSI B16.5 Class 900 TH
  • DIN 2565 PN6
  • DIN 2566 PN10

Threaded Pipe Flange can be used in very high pressure services and their major advantage is that they can be assembled without welding.

Uses of threaded flanges :
Threaded flanges are threaded in the bore which match an external thread on the pipe. Threaded flanges are used with pipes that have external threads. The benefit of these flanges is that it can be attached without welding.
  • Thread Steel Fitting can be fitted to pipes of various sizes without welding and this is one chief benefit for which these flanges are highly demanded.
  • They can be used in extremely high pressure applications, particularly at or near atmospheric temperature, where the necessary post weld heat treatment is not possible.
  • They are ideal for small diameter Piping Applications.
  • They are economical and time saving devices.
  • These Threaded Fittings are normally designed for non-cyclic applications.
  • The flanges are suitable to be used in applications where welding is hazardous.
  • They can be used in highly explosive areas.
Details of Thread Pipe Fitting flange
They are the special type of pipe flanges which can be attached to the pipe without welding.
Details of Threaded flange
1. Threaded flange 2. Thread 3. Pipe or Fitting


Threaded flanges are often used for small diameter, high pressure requirements. thread flanges with a hub have published specifications that range from 1/2″ thru 24″.
Size: 1/2" to 60", DN 12mm to DN 1500mm
Pressure class: Class 150 to Class 2,500, PN 2.5 to PN 250
Facing: RF / RTJ


Material:
Cabon steel fitting: A105, A350 LF2
Stainless Steel Pipe Flange: A182 F304/F304L/F316/F316L/F321

Type:Threaded Flanges, TH Flanges, Plain threaded flanges, Female threaded flanges, Male threaded flanges

Packing: plywood case and plywood pallet

ASME/ANSI B16.5 Class 150 TH

Nominal Pipe Size Outside Diameter of Flange Diameter of Raised Face Thickness of Flanges Min. Diameter of Hub Length Through Hub Thread Length Threaded Min. Bore Diameter of Bolt Circle Diameter of Bolt Holes Number of Bolts Approximate Weight kgs
NPS O R tf X Y T B W I n
1/2 90 34.9 9.6 30 14 16 22.2 60.3 15.9 4 0.41
3/4 100 42.9 11.2 38 14 16 27.7 69.9 15.9 4 0.59
1 110 50.8 12.7 49 16 17 34.5 79.4 15.9 4 0.82
1 1/4 115 63.5 14.3 59 19 21 43.2 88.9 15.9 4 0.99
1 1/2 125 73.0 15.9 65 21 22 49.5 98.4 15.9 4 1.28
2 150 92.1 17.5 78 24 25 61.9 120.7 19.1 4 2.01
2 1/2 180 104.8 20.7 90 27 29 74.6 139.7 19.1 4 3.41
3 190 127.0 22.3 108 29 30 90.7 152.4 19.1 4 3.88
3 1/2 215 139.7 22.3 122 30 32 103.4 177.8 19.1 8 4.80
4 230 157.2 22.3 135 32 33 116.1 190.5 19.1 8 5.45
5 255 185.7 22.3 164 35 36 143.8 215.9 22.2 8 6.22
6 280 215.9 23.9 192 38 40 170.7 241.3 22.2 8 7.57
8 345 269.9 27.0 246 43 44 221.5 298.5 22.2 8 12.42
10 405 323.8 28.6 305 48 49 276.2 362.0 25.4 12 16.47
12 485 381.0 30.2 365 54 56 327.0 431.8 25.4 12 26.80
14 535 412.8 33.4 400 56 57 359.2 476.3 28.6 12 35.21
16 595 469.9 35.0 457 62 64 410.5 539.8 28.6 16 44.61
18 635 533.4 38.1 505 67 68 461.8 577.9 31.8 16 49.19
20 700 584.2 41.3 559 71 73 513.1 635.0 31.8 20 62.62
24 815 692.2 46.1 663 81 83 616.0 749.3 34.9 20 88.23





A pipe flange is a method of connecting pipes, valves, pumps and other equipment to form a piping system.

It also provides easy access for cleaning, inspection or modification. Flanges are usually welded or screwed. Pipe flanged joints are made by bolting together two flanges with a Gasket between them to provide a seal.

Materials for Flanges

Pipe flanges are manufactured in all the different materials like stainless steel, cast iron, aluminium, brass, bronze, plastic etc. but the most used material is forged carbon steel and have machined surfaces.

In addition, flanges, like fittings and pipes, for specific purposes sometimes internally equipped with layers of materials of a completely different quality as the flanges themselves, which are "lined flanges".

The material of a flange, is basically set during the choice of the pipe, in most cases, a flange is of the same material as the pipe.

All flanges, discussed on this website fall under the ASME en ASTM standards, unless otherwise indicated. ASME B16.5 describes dimensions, dimensional tolerances etc. and ASTM the different material qualities.


Threaded Pipe Flange.
