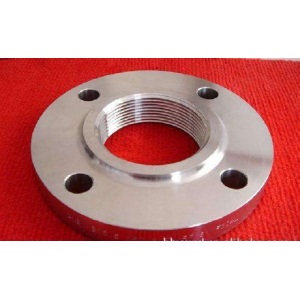

Threaded Flanges TH Flanges screwed flange

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces
    Delivery Time: 20 Days

Basic Info

Model No.: thread flange

Standard: DIN, GB, JIS, ANSI, GOST, BSW

Type: Welding Flange, Threaded Connection Flange

Material: Carbon Steel

Manufacturing Way: Forging

Structure: Flanges

Connection: Screws

Sealing Surface: RF

Additional Info

Packaging: Wooden Cases or as per buyer's requirements

Productivity: 1000pcs/month

Brand: Bangdong

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

HS Code: 73079900

Port: Zhengzhou Train Station,Tianjin New Port,Beijing Air Port

Product Description

Threaded flanges are widely demanded as pipe flanges i.e called as threaded pipe flanges used in different industrial applications.

Threaded Flanges are also known as screwed flange, and it is having a thread inside the flange bore which fits on the pipe with matching male thread on the pipe.

This type of joint connection is Speedy and simple but not suitable for high presser and temperature applications. Threaded Flanges are mostly used in utility services such as air and water.

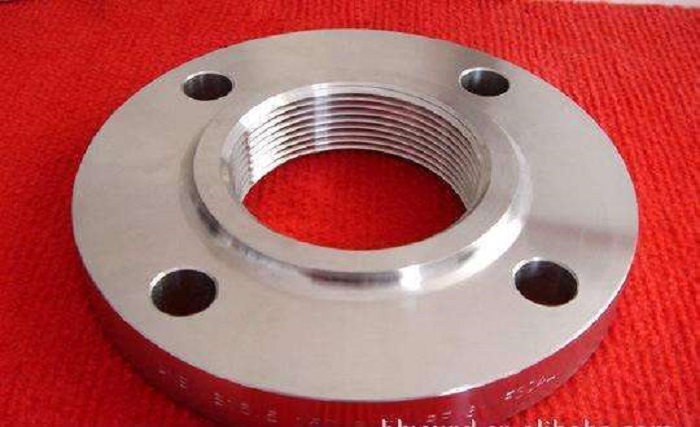

Threaed flange


Thread Steel Fitting
Threaded (Screwed) flange is similar to the
Slip On Flange , but the bore is threaded. Its chief merit is that it can be assembled withour welding, explaining its use in low pressure services at ordinary atmospheric temperatures, and in highly explosive areas where welding create a hazard.

Types of Screwed Flanges
The various types of threaded flanges are as follows:
Standards, Dimensions & Weight of Threaded Fittings
Threaded Flanges can be used in very high pressure services and their major advantage is that they can be assembled without welding.


ANSI/ Asme B16.5 Class 150 TH
ASME/ANSI B16.5 Class 300 TH
ASME/ANSI B16.5 Class 600 TH
ASME/ANSI B16.5 Class 900 TH
DIN 2565 PN6
DIN 2566 PN10

Uses of threaded flanges :
Forged Pipe Fittings,Threaded flanges are threaded in the bore which match an external thread on the pipe. Threaded flanges are used with pipes that have external threads. The benefit of these flanges is that it can be attached without welding.
  • Threaded flanges can be fitted to pipes of various sizes without welding and this is one chief benefit for which these flanges are highly demanded.
  • They can be used in extremely high pressure applications, particularly at or near atmospheric temperature, where the necessary post weld heat treatment is not possible.
  • They are ideal for small diameter Piping Applications.
  • They are economical and time saving devices.
  • These threaded flanges are normally designed for non-cyclic applications.
  • The flanges are suitable to be used in applications where welding is hazardous.
  • They can be used in highly explosive areas.
Details of Threaded flange
They are the special type of pipe flanges which can be attached to the pipe without welding.
Details of Threaded flange
1. Threaded flange 2. Thread 3. Pipe or Fitting

Threaded flanges are often used for small diameter, high pressure requirements. thread flanges with a hub have published specifications that range from 1/2″ thru 24″.
Pressure class: Class 150 to Class 2,500, PN 2.5 to PN 250
Facing: RF / RTJ

Material:
Cabon steel: A105, A350 LF2
Stainless steel: A182 F304/F304L/F316/F316L/F321
Alloy steel: F11, F12

Type:
Threaded Flanges, TH Flanges, Plain thread flanges, Female Threaded Pipe Flange, Male threaded flanges,Raised Face Threaded Flange

Packing: plywood case and plywood pallet

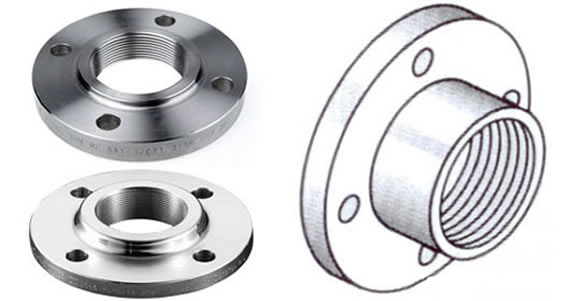

flange-type-screwed-flanges

Looking for ideal Raised Face Threaded WN Flange Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Forged Slip on Pipe Fittings are quality guaranteed. We are China Origin Factory of Stainless Steel Threaded Fittings. If you have any question, please feel free to contact us.
