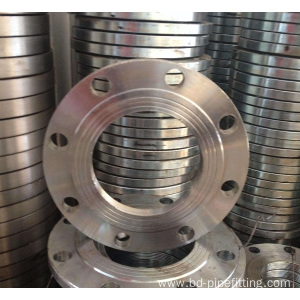

THREAD FLANGE CS 150# RF A105

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces
    Delivery Time: 20 Days

Basic Info

Model No.: RED THREAD FLANGE

Standard: DIN, GB, JIS, ANSI, GOST, BSW

Type: Threaded Connection Flange

Material: Alloy Steel

Structure: Flanges

Connection: Screws

Sealing Surface: FM

Manufacturing Way: Forging

Additional Info

Packaging: Wooden case or as per buyer's requirements

Productivity: 1000pcs/month

Brand: Bangdong

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

HS Code: 73079100

Port: Tianjin New Port,Beijing Air Port,Zhengzhou Train Station

Product Description



Keywords: 1/2", CS A105, GAL, FLANGE, RF, 150 LB, SCRD.
Name: Carbon Steel Threaded Flange.
Material: ASTM A105.
Size: 1/2 Inch (DN15).
Pressure: 150 LB (PN20).
Ends: RF.
Surface Treatment: Galvanized.


Pipe Normal Diam. O.D. Flange Thk. Of Flange Min Diam.
of
Hub
Diameter of Raised Face Length Hub.Y Thread Length Diam.
of Bolt
Circle
Diam.
of Bolt
Holes
Number
of Bolts
Diam. of
Bolts
(inch)
KG LB
inch dn O C X G Y T BC BH BN BD
1/2" 15 89.00 11.20 30.20 35.10 15.70 15.70 60.50 15.80 4 1/2" 0.4 0.9
3/4" 20 98.50 12.70 38.10 42.90 15.70 15.70 69.90 15.80 4 1/2" 0.7 1.5
1" 25 108.00 14.20 49.30 50.80 17.50 17.50 79.30 15.80 4 1/2" 0.8 1.8
1-1/4" 32 117.50 15.70 58.70 63.50 20.60 20.60 88.90 15.80 4 1/2" 1.2 2.6
1-1/2" 40 127.00 17.50 65.00 73.20 22.40 22.40 98.60 15.80 4 1/2" 1.5 3.3
2" 50 152.50 19.10 77.70 91.90 25.40 25.40 120.70 19.10 4 5/8" 2.3 5.1
2-1/2" 65 178.00 22.40 90.40 104.60 28.40 28.40 139.70 19.10 4 5/8" 3.7 8.1
3" 80 190.50 23.90 108.00 127.00 30.20 30.20 152.40 19.10 4 5/8" 4.1 9
3-1/2" 90 216.00 23.90 122.20 139.70 31.80 31.80 177.80 19.10 8 5/8" 5.1 11.2
4" 100 228.50 23.90 134.90 157.20 33.30 33.30 190.50 19.10 8 5/8" 5.9 13
5" 125 254.00 23.90 163.60 185.70 36.60 36.60 215.90 22.40 8 3/4" 7 15.4
6" 150 279.50 25.40 192.00 215.90 39.60 39.60 241.30 22.40 8 3/4" 8.4 18.5
8" 200 343.00 28.40 246.10 269.70 44.50 44.50 298.50 22.40 8 3/4" 13 28.6
10" 250 406.50 30.20 304.80 323.90 49.30 49.30 362.00 25.40 12 7/8" 18 39.5
12" 300 482.50 31.80 365.30 381.00 55.60 55.60 431.80 25.40 12 7/8" 29 64
14" 350 533.50 35.10 400.10 412.80 57.20 57.20 476.30 28.50 12 1" 39 86
16" 400 597.00 36.60 457.20 469.90 63.50 63.50 539.80 28.50 16 1" 47 103
18" 450 635.00 39.60 505.00 533.40 68.30 68.30 577.90 31.80 16 1 1/8" 57 126
20" 500 698.50 42.90 558.80 584.20 73.20 73.20 635.00 31.80 20 1 1/8" 76 167
24" 600 813.00 47.80 663.40 692.20 82.60 82.60 749.30 35.10 20 1 1/4" 97 214

There are many different flange standards to be found worldwide. To allow easy functionality and interchangeability, these are designed to have standardised dimensions. Common world standards include ASME (USA), DIN (European), BS10 (British/Australian), and JIS/KS (Japanese/Korean).

Pipe flanges that are made to standards called out by Asme B16.5 or ASME B16.47, and MSS SP-44. They are typically made from forged materials and have machined surfaces. ASME B16.5 refers to nominal pipe sizes (NPS) from ½" to 24". B16.47 covers NPSs from 26" to 60". Each specification further delineates flanges into pressure classes: 150, 300, 400, 600, 900, 1500 and 2500 for B16.5, and B16.47 delineates its flanges into pressure classes 75, 150, 300, 400, 600, 900. However these classes do not correspond to maximum pressures in psi. Instead, the maximum pressure depends on the material of the flange and the temperature. For example, the maximum pressure for a Class 150 flange is 285 psi, and for a Class 300 Flange it is 740 psi (both are for ASTM A105 Carbon Steel and temperatures below 100F).
Flange dimensions are determined by the pipe size and the pressure class required for the application. Flanges are standardized according publications from organizations like ASME, MSS, API and others.

ASME/ANSI B16.5 flange provides


Flange Type :
Thread Flange
Spectacle Blind Flange
Spacer & Spade
LWN Flange
Orifice Flange

Blind Flange
Ansi Blind Flange
Stainless Steel Blind Flange
Raised Face Blind Flange
Slip On Flange
Slip On Weld Flange
SO Flange
Slip On Pipe Flange
Weld Neck Flange



flange dimensions for pipes ranging 1/2" to 24" - in classes ranging 150 to 2500.
 Steel Pipe Dimensons - Schedule 40
Steel Pipe Dimensions - Schedule 80






Stainless Steel Threaded Flange

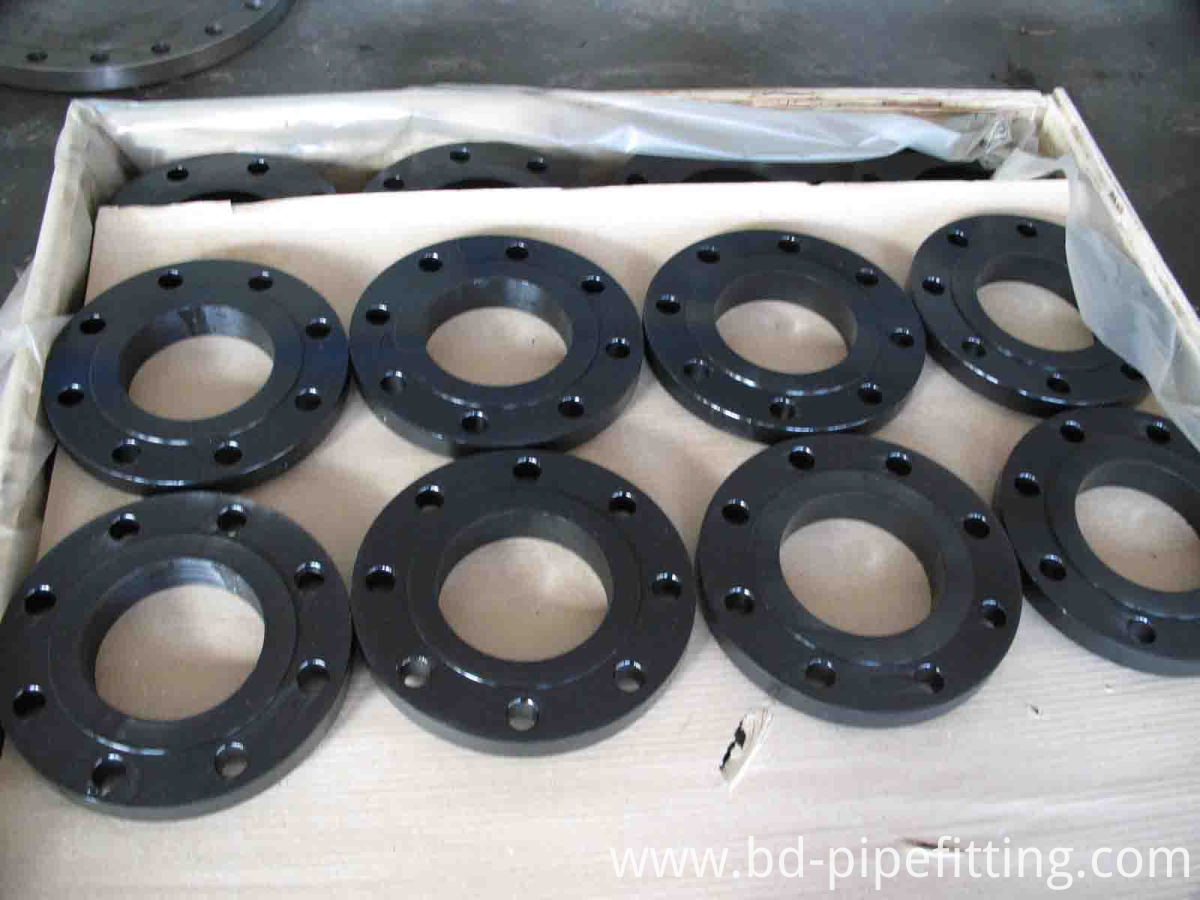

6 x 4 RED THREAD FLANGE CS 150# RF A105

Looking for ideal Steel Flat Flanges Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the RTJ Steel Flanges are quality guaranteed. We are China Origin Factory of Blind Steel Flanges. If you have any question, please feel free to contact us.
