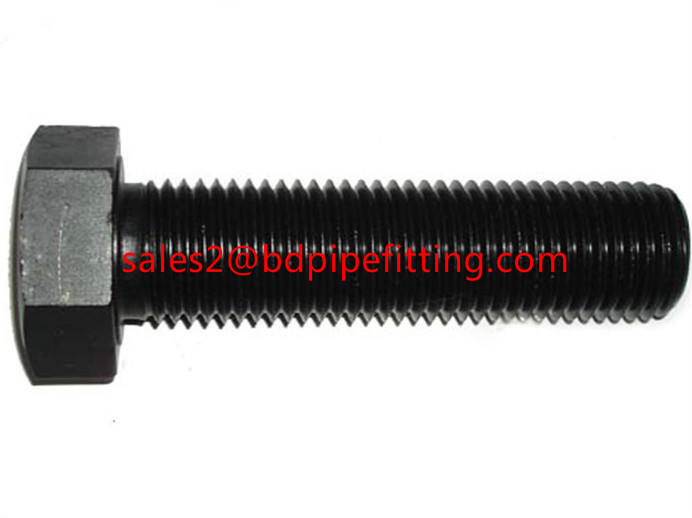

HEX BOLTS WITH 2h Heavy Hex Nut

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces

Basic Info

Model No.HEX BOLTS

BrandBangdong

ApplicationMachinery

FinishPolishing

TypeHexagon Head

GradeB7

StandardDIN, GOST, JIS, GB, ANSI

ConnectionHinged Bolts

MaterialAlloy Steel

Additional Info

PackagingWooden Cases or Pallet

Productivity10000pcs/momth

TransportationOcean,Land,Air

Place of OriginCangzhou,China

Supply Ability10000pcs/month

CertificateISO/CE/API

HS Code73079300

PortTianijin New Port,Beijing Air Port,Cangzhou Train Station

Payment TypeL/C,T/T

IncotermFOB,CFR,CIF

Product Description


Hex Bolts have hexagonal heads and machine threads for use with a nut or in a tapped hole. They are also commonly referred to as hex cap screws or machine bolts.



HEX BOLT VS CAP SCREW

Cap screws have a built-in washer underneath the hexagonal head.  However, today most hex bolts have this built-in washer, so the names are commonly used interchangeably.

BANGDONG Supply stocks a full line of grade 5 sinc plated hex bolts, from 1/4" up to 1" with a few larger sizes. The same size range is stocked in grade 8 yellow zinc. BANGDONG also carries a variety of A307-A,A325 hot dip galvanized, and A193 heavy hex bolts in plain . BANGDONG is capable of providing any bolt grade with any coating that may be applied to your particular grade of bolting that you can imagine and works closely with several manufacturers to meet these special requirements.

Size Range: 1/4" to 4" Diameter (Metric & Standard)
Types: 12 Point, U Bolt, J Bolt, Carriage, Eye, Hex, Heavy Hex, Lag, Shoulder, Socket
Carbon Steel: Grade 2, Grade 5, Grade 8, B7, B7M, L7
Stainless Steel: 18-8, 304 SS, 316 SS, B8, B8 CL2, B8M, B8M CL2, B16
Coatings: Black Oxide, Cadmium, Galvanized, Xylan, Zinc, Others Upon Request

ANATOMY OF A HEX BOLT

Fitting Components  Hex bolt length is properly measured from beneath the head of the bolt to the base of the shank (the portion of the bolt beneath the head).

Another important term when referring to hex bolts is the shoulder.  The shoulder of the bolt is the portion of the shank that is not threaded, and its width indicates the diameter of the hex bolt.

The standard length of threads for a hex bolt is twice the diameter plus a quarter of an inch (thread length = 2 X diameter + ¼).  For example, a ¼ X 4" hex bolt will have ¾" of threads, and a 3-1/4" shoulder.  Note that a hex bolt with an entirely threaded shank is referred to as a tap bolt.Galvanized Bolts and Nuts

MATERIAL

CARBON STEEL

A307 grade A (grade 2) and grade B (structural low carbon): A307 is the specification for carbon steel bolting, studs, and threaded rod with 60,000PSI tensile strength. This spec covers the chemical and mechanical requirements for 2 carbon steel grades, A307 grade A (finished hex bolt), and A307 grade B (heavy hex bolt) 2H Heavy Hex Nut.Heavy Nuts

A449 (grade 5): A449 is the standard specification for hex cap screws, bolts, and studs having a minimum tensile strength of 120 ksi for diamteters 1" and smaller; 105 ksi for diamters of 1" to 1-1/2"; and 90 ksi for diameters 1-3/4 to 3" inclusive.

A354 grades BC and BD (BD = grade 8): A354 is the ASTM Specification covering Quenched and Tempered alloy steel bolts, studs, and other externally threaded fastneners 4" and under in diameter for application at normal atmospheric temperatures, where high strength is required for limited application at eleveated temperature (note 1).

A325 (heavy hex structural): F3125 is the consolidation and replacement of 6 ASTM standards: A325, A325M, A490, A490M, F1852, and F2280. This coveres the chemical, physical, and mechanical properties and requirements for structural bolts manufactured from steel and alloy steel, in two strengths, two styles, and two types.

A490 (heavy hex structural): F3125 is the consolidation and replacement of 6 ASTM standards: A325, A325M, A490, A490M, F1852, and F2280. This coveres the chemical, physical, and mechanical properties and requirements for structural bolts manufactured from steel and alloy steel, in two strengths, two styles, and two types.

A193 (heavy hex): A193 is the ASTM standard covering alloy and stainless steel bolting materials for high temperature or high pressure service. This specification includes fasteners intended for use in pressure vessels, valves, flanges, and fittings. Material selection depends on design, service conditions, mechanical properties, and temperature characteristics. This material is often available in UNC thread pitches, if being used in traditional applications, threads are specified 8 threads per inch or 8UN for diameters above one inch.

STAINLESS STEEL

304SS 316SS

A193 B8 – Produced to grade AISI 304, carbide solution treated, standardly available in class 1

A193 B8M – Produced to grade AISI 316, carbide solution treated, standardly available in class 1

COATING AND PLATING

Hex Bolts are most commonly available with a plain finish, which is also referred to as Black.  However, there are also numerous applications that call for coating/plating, including: Cadmium, Galvanizing, and zinc plating.

Note that there are some bolting grades that are not available in certain coatings, because the coating process can compromise the integrity of the particular grade. For example, grade 8, or A354-BD cannot be hot dip galvanized due to the high temperatures of the process altering the mechanical properties of the bolt.  Another example would be A325 Type 3 bolts, it is not recommended that these bolts be coated at all due to the fact that they're a weathering steel and will not be able to produce the protective coating when exposed to the elements.Galvanized Bolts And Nuts.Fasteners Stud Bolt

Hex Bolts
