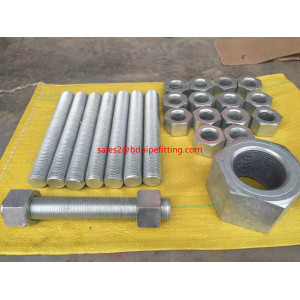

A320 B8 Stud bolts with 2h Hdg Nuts

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces

Basic Info

Model No.: A320

Type: Hexagon Head

Grade: B7

Finish: Polishing

Application: Machinery

Standard: DIN, GOST, JIS, GB, ANSI

Connection: Hinged Bolts

Material: Alloy Steel

Additional Info

Packaging: Wooden Cases or Pallet

Productivity: 10000pcs/momth

Brand: Bangdong

Transportation: Ocean,Land,Air

Place of Origin: Cangzhou,China

Supply Ability: 10000pcs/month

Certificate: ISO/CE/API

HS Code: 73079300

Port: Tianijin New Port,Beijing Air Port,Cangzhou Train Station

Product Description

Stud Bolts, a term used for cut-to-length all thread rod, are used for: bolting together flanges, anchor bolting, as well as general fastening.
Bangdong is a Stud Bolt distributor, offering stud bolts in carbon, stainless, along with several special alloys. With stud bolt diameters ranging from 1/2" to 4", Bangdong can provide the stud bolts required for virturally any project.

INVENTORY

Bangdong Supply stocks Grade B7 Stud from 1/2" - 2" diameter in: Plain (black) finish, Teflon Blue, and Cad Plating. Bangdong also stocks B8 and B8M stud bolts from ¼ - 1-1/2". we can also provide larger stud bolts, stud bolts made from different materials (B8, B8M, Alloy 20, Monel, Hastelloy, Inconel, Titanium, etc), as well as different coatings. While many of the larger diameter items can be made available for a next-day delivery, some of the special alloys and coatings may be subject to a longer lead time. The table below shows a look at not just the stud bolts bandong has in inventory, but what bangdong is capable of providing.

Size Range: 1/4" to 4" Diameter (Metric & Standard)
Types: All Thread, Double End, Single End
Carbon Steel: B7, B7M, L7
Stainless Steel: B8, B8 CL2, B8M, B8M CL2, B16
Exotic Alloys: A20, 17-4PH, Monel, Inconel, Incoloy, Hastelloy
Coatings: Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request

THREAD PITCH

Thread pitch refers to the steepness of the angle of thread, which is measured in threads per inch. Thread Pitch Chart shows the unified screwed thread for coarse and fine thread, as well as the thread pitch for stud bolts. Stud Bolt covered under the A193 or A320 ASTM Specifications utilize 8UN for all diameters 1" and above, meaning there are 8 threads per inch for these sizes. All other materials should be specified by the purchaser unless noted in the ASTM spec given.

LENGTH

Length can be measured one of two ways, either overall length (OAL) or first useable thread to first useable thread (FTF). Industry standard and stock is measured OAL. To find FTF measurement from OAL, simply subtract a quarter of an inch.

Stud Bolt chart showing overall length vs first to first

MATERIAL

Stud bolts can be made from many different grades of material, but the most common materials are listed below. The A193 and A320 pages provide the chemical and mechanical properties of these material grades below.

CARBON STEEL

A193 B7 – This is the most common grade for which stud bolts are produced. B7 is a Chrome-moly, Alloy steel that is made to AISI 4140/4142, and it is quenched and tempered.

A193 B7M – The [M" here stands for Modified (heat treated) B7 material

A193 B16 - Chrome-moly-vanadium, Alloy steel, AISI 4140/4142 quenched and tempered

A320 L7 - AISI 4140/4142 quenched and tempered Alloy steel

A320 L43 - AISI 4340 quenched and tempered Alloy Steel

STAINLESS STEEL

A193 B6 – Heat treated 410 stainless (410HT)

A193 B8 – Produced to grade AISI 304, carbide solution treated, standardly available in class 1

A193 B8M – Produced to grade AISI 316, carbide solution treated, standardly available in class 1

A193 B8C- Grade 347 stainless material

A193 B8T – Grade 321 stainless material

A320 B8 - Produced to grade AISI 304, carbide solution treated, standardly available in class 1

A320 B8M - Produced to grade AISI 316, carbide solution treated, standardly available in class 1

RELATED HARDWARE

This chart shows the nuts and washers that accompany the stud bolts outlined here. These items are required for proper installation.

Stud Bolt Grade

Nuts

Washers

L7

A194 Grade 4 or 7

F436

L43

A194 Grade 4 or 7

F436

B8 Class 1

A194 Grade 8

SS304

B8M Class 1

A194 Grade 8M

SS316

B8 Class 2

A194 Grade 8

SS304

B8M Class 2

A194 Grade 8M

SS316

B7

A194 Grade 2H

F436

B7M

A194 Grade 2HM

F436

B16

A194 Grade 4 or Grade 7

F43


COATING AND PLATING STUD BOLTS

Stud bolts are most commonly available with a plain finish, which is also referred to as Black. However, there are also numerous applications that call for coating/plating, with the most common Teflon Blue coating. Teflon, or Xylan, coating provides for increased corrosive resistance, which is favorable that require increased corrosion resistance as well as the strength of B7 material.

Stud Bolt Coating and plating chart showing teflong blue, cad plated, zinc, and more


We have below Bolts & Nuts :

A193 GR b7 Stud Bolt

Fasteners Stud Bolt
Stud Bolts
Heavy Nuts
Stud Bolts With 2 Nuts
Hex Bolts

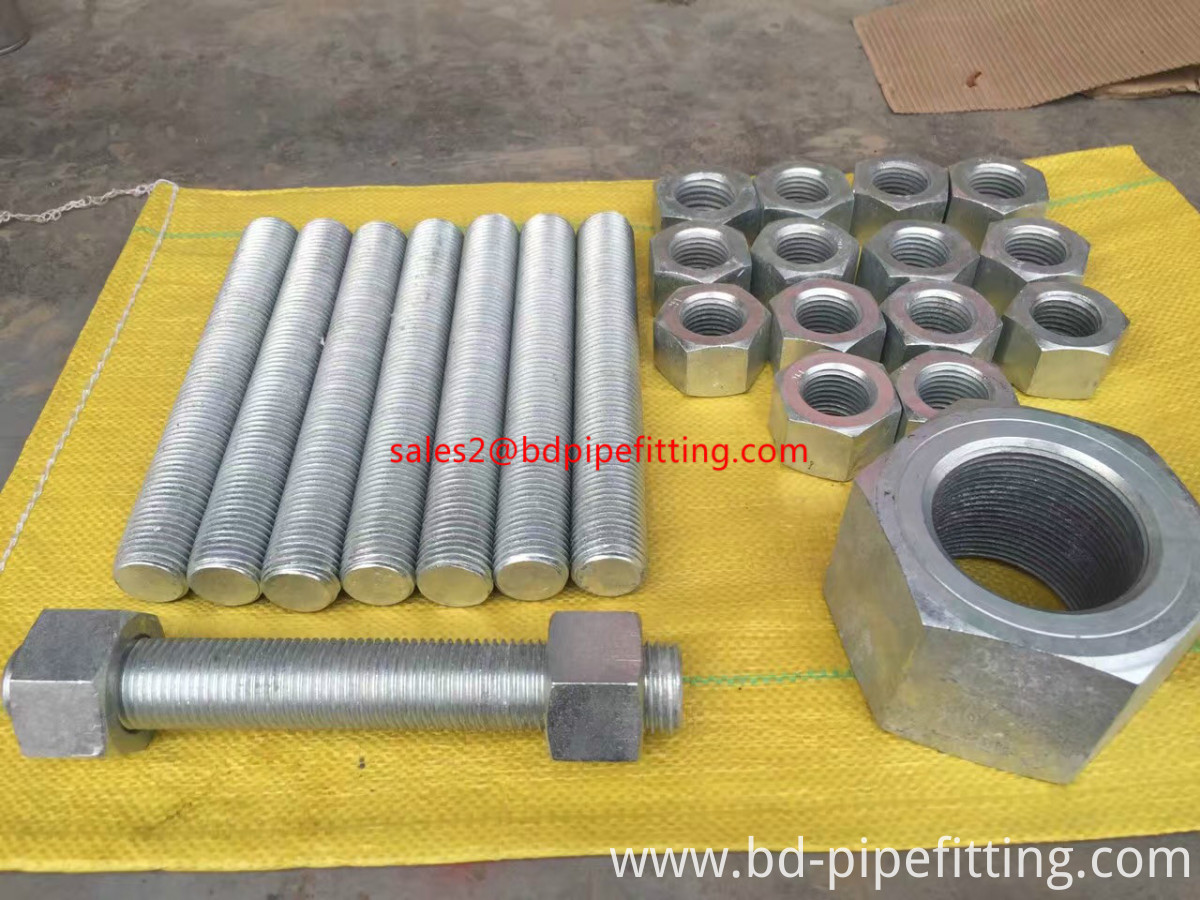

stub bolt

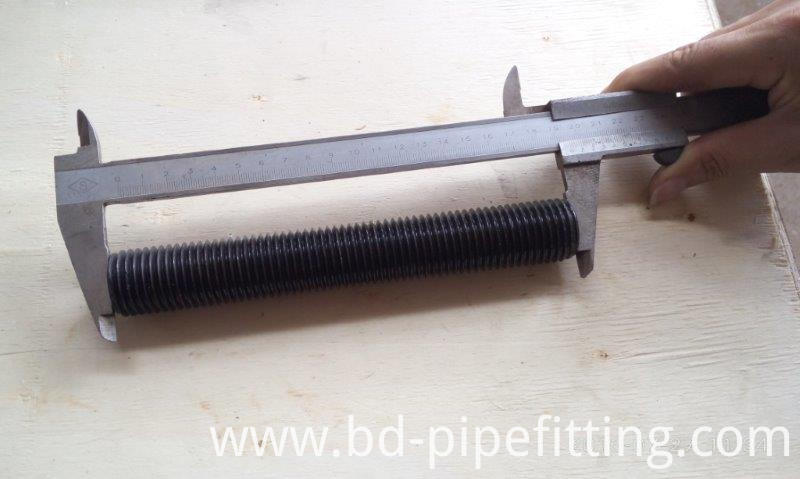

P60727 113419

Looking for ideal Carbon Steel Galvanized Bolts and Nuts Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the A193 Gr B7 Stud Bolt are quality guaranteed. We are China Origin Factory of Fasteners Stud with 2H HDG Nuts. If you have any question, please feel free to contact us.
