Shijiazhuang Bang dong Pipeline Technology Co,Ltd.
Model No.: Black Stud Bolt
Material: Stainless Steel
Type: Hexagon Head
Connection: Common Bolt
Hinged Bolts: Hexagonal
Standard: DIN, GOST, GB, ANSI
Packaging: Wooden Cases or as per buyer's requirements
Place of Origin: Cangzhou,China
Supply Ability: 1000pcs/month
HS Code: 7318159090
Port: Beijing Air Port,Tianjin New Port,Wuhan Train Station

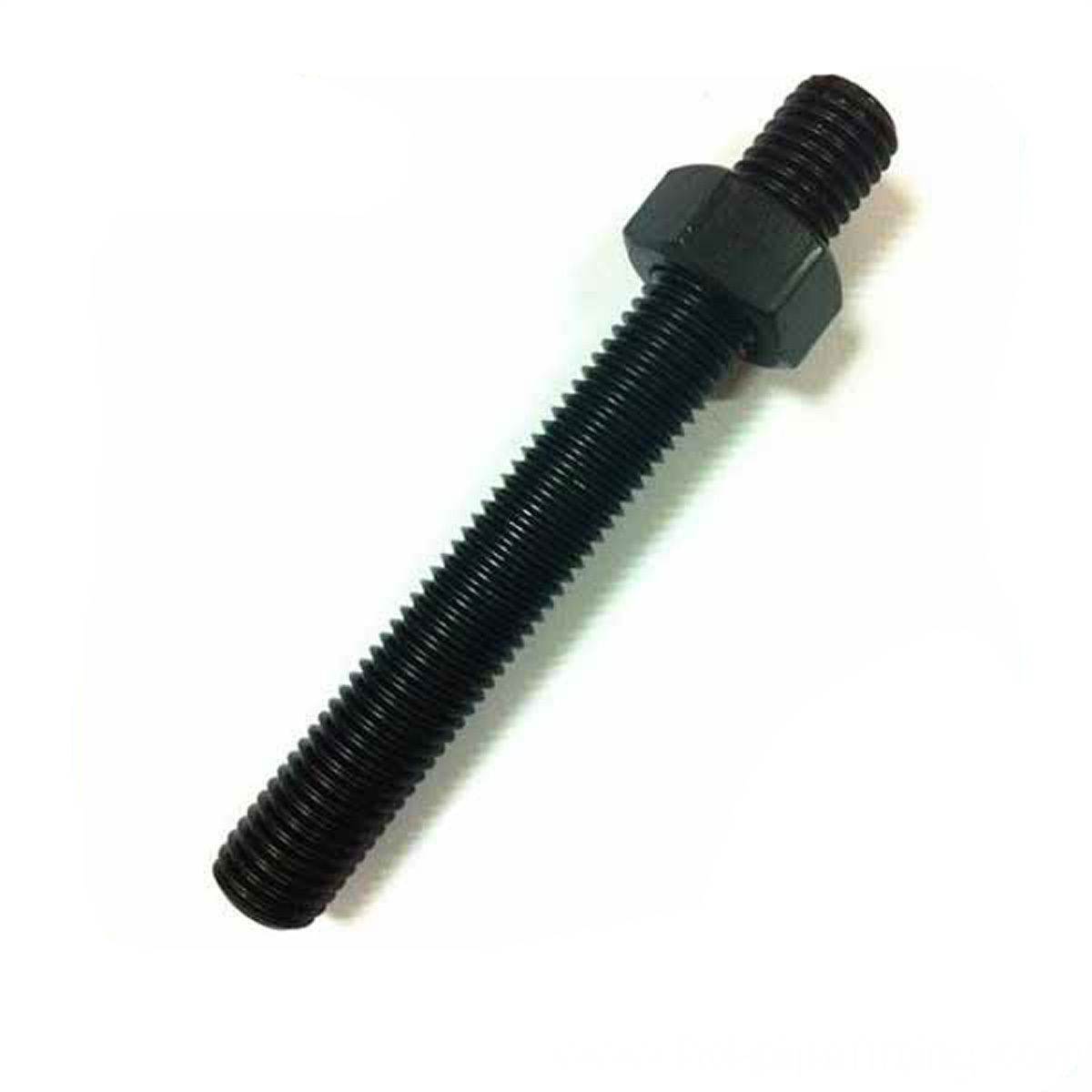

B7 L7 L7m Black Stud Bolt and 2h Nut Stainless Steel
Bangdong Supply A193 B7 Double-End Stud Bolts,A193 B7 Stud Bolt,Alloy Steel Heavy A193 B7 HDG Stud Bolts.Bolts threading are defined in ASME B1.1 Unified Inch Screw Threads, (UN and UNR Thread Form). The most common thread is a symmetrical form with a V-profile. The included angle is 60°. This form is widely used in the Unified thread (UN, UNC, UNF, UNRC, UNRF) form as the ISO / metric threads.
The advantage of a symmetrical threads is that they are easier to produce and inspect compared with non-symmetrical threads. These are typically used in general-purpose fasteners.
Thread series cover designations of diameter/pitch combinations that are measured by the number of threads per inch (TPI) applied to a single diameter.
Coarse thread series (UNC/UNRC) is the most widely used thread system and applied in most of the screws, bolts and nuts. Coarse threads are used for threads in low strength materials such as iron, mild steel, copper and softer alloy, aluminium, etc.. The coarse thread is also more tolerant in adverse conditions and facilitate quick assembly.
Fine thread series (UNF/UNRF) is commonly used in precision applications and in there where require a higher tensile strength than the coarse thread series.
8 - Thread series (8UN) is the specified thread forming method for several ASTM standards including A193 B7, A193 B8/B8M, and A320. This series is mostly used for diameters one inch and above.
MATERIALS FOR STUD BOLTS
Dimensions from Stud Bolts are defined in the Asme B16.5 standard. The material qualities for studs are defined in the different ASTM standards, and are indicated by Grade. Frequently used grades are A193 for thread rods and A194 for the nuts.
ASTM A193 covers alloy and stainless steel bolting material for pressure vessels, Valves, flanges, and fittings for high temperature or high pressure service, or other special purpose applications.
ASTM A194 covers a variety of carbon, alloy, and martensitic and austenitic stainless steel nuts. These nuts are intended for high-pressure or high-temperature service, or both.
MARKING OF STUD BOLTS
Thread rods and nuts must be marked by the manufacturer with a unique identifier to identify the manufacturer or private label distributor, as appropriate. Below a number of ASTM examples.
Will quote Hex Bolts and Stud Bolt as your requirements .
Looking for ideal A193 B7 Double-End Stud Bolts Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the A193 B7 Stud Bolt are quality guaranteed. We are China Origin Factory of Alloy Heavy A193B7 HDG Stud Bolts. If you have any question, please feel free to contact us.
