Shijiazhuang Bang dong Pipeline Technology Co,Ltd.
Model No.: F316
Material: Stainless Steel
Packaging: Wooden Cases or as per buyer's requirements
Place of Origin: Cangzhou,China
Supply Ability: 1000pcs/month
HS Code: 73079300
Port: Tianjin New Port,Beijing Air Port,Zhengzhou Train Station

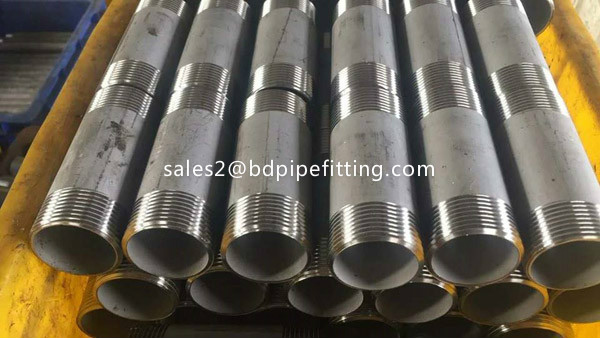

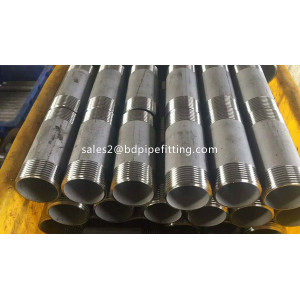

Stainless Steel Pipe NIPPLES
• The material for Seamless Stainless Steel Pipe conforms to the requirements of
• Seamless Stainless Steel Nipple Design/Dimensions conform to ASTM A733.
Contact UVI for exact dimensional information.
• NPT threads on Stainless Steel Nipples conform to ASME B1.20.1. Threads are
right hand on both the ends.
• The ends of the Stainless Steel Nipple are chamfered on the outside at an angle
of 35˚ +/- 10˚ to the central axis and free from burrs.
• Ends are cut square to the central axis.
• All Stainless Steel Nipples are stamped with heat code and material sepcifications
The nipple is made from 316 stainless steel, providing increased durability and chemical resistance over brass fittings. The connections are male BSPT (tapered).
316 Stainless Steel 150 lb fitting
With BSPT tapered screw end
Barrel Nipple is made from S/40 pipe
In addition to schedule 40 standard and schedule 80 extra heavy Stainless Steel Nipples, we also offer hex Steel Nipple and king Pipe Nipple – all available in 304 stainless steel and 316 stainless steel. Most of our stainless nipples can be supplied as domestic or import, as well as welded or seamless. We can also custom make any specific length, schedule, grade, or thread combination upon request. Our Steel Nipple Fittings capabilities include in-house nipple threading of National Pipe Threads (NPT), British Standard Pipe Threads (BSPT), as well as sourcing of Metric Threads upon request.
Types: Welded - Seamless
Standard:ANSI/ASME: ASTM A180,ASTM SA182
Dimension:ASME 16.11,MSS SP-79,MSS SP-95,83.97,BS3799
Sizes: 1/8" x Close - 6" x Any Length
Grades: 304 - 316
TYPE:Threaded Pipe Fittings pipe nipple
