Shijiazhuang Bang dong Pipeline Technology Co,Ltd.

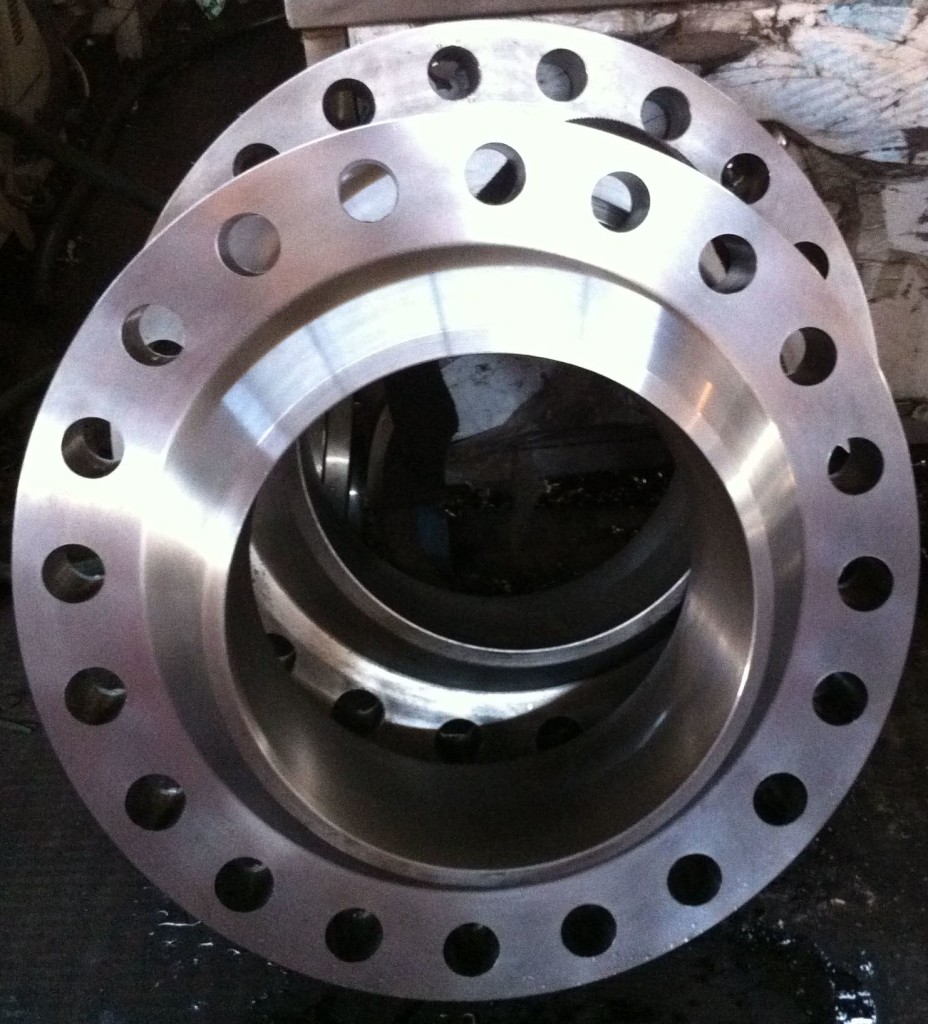

Model No.: Blind Flange
Standard: DIN, GB, JIS, ANSI, GOST, BSW
Type: Welding Flange
Material: Stainless Steel
Sealing Surface: RF
Manufacturing Way: Forging
Packaging: Wooden Case or as per buyer's requirements
Place of Origin: Cangzhou,China
Supply Ability: 1000pcs/month
HS Code: 73072100
Port: Beijing Air Port,Tianjin New Port,Wuhan Train Station
Bangdong Supply Forged Weld Neck Flange,Forged Slip On Flange,Stainless Steel Plate Flange.Socket Welding Flanges The socked welding flange if similar to a slip-on flange except it has a bore and a counterbore dimension. the counterbore is slightly larger than the O.D. of the matching pipe, allowing the pipe to be inserted into the flange similar to a slip-on flange. The diameter of the smaller bore is the same as the I.D. of the matching pipe. A restriction is built into the bottom of the bore which sets as a shoulder for the pipe to rest on. This eliminates any restriction in flow when using a socket welding flange
LAP JOINT FLANGES are primarily employed with lap joint stubs, the combined initial cost of the two items being approximately one-third higher than that of comparable welding neck flanges. Their pressure-holding ability is little, if any, better than that of slip-on flanges and the fatigue life of the assembly is only one-tenth that of welding neck flanges.
The chief use of lap joint flanges in carbon or low alloy steel piping systems is in services necessitating frequent dismantling for inspection and cleaning and where the ability to swivel flanges and to align bolt holes materially simplifies the erection of large diameter or unusually stiff piping. Their use at points where severe bending stress occurs should be avoided.
THREADED FLANGES are confined to special applications. Their chief merit lies in the fact that they can be assembled without welding this explains their use in extremely high pressure services, particularly at or near atmospheric temperature, where alloy steel is essential for strength and where the necessary post weld heat treatment is impractical. Threaded flanges are unsuited for conditions involving temperature or bending stresses of any magnitude, particularly under cyclic conditions, where leakage through the threads may occur in relatively few cycles of heating or stress; sea welding is sometimes employed to overcome this, but cannot be considered as entirely satisfactory.
Long Welneck Flanges
The LWN is FVC's basic standard flanged connection. This seamless product offers a nominal bore as well as a heavy wall thickness making it ideal for highly corrosive applications.
Forged flange is the best mechanical properties of a flange product, its raw materials are generally tube, and then after cutting and then continue to beat, to eliminate the ingot in the segregation, loose and other defects. Price and mechanical properties are higher than ordinary casting flange a grade. The flange is a part that connects the pipe with the pipe and the valve, is connected to the pipe end. It is also used for the flange on the equipment inlet and outlet.
The connection between the two devices is the part connecting the pipe to the pipe. At the end of the tube. Is a subsidiary of the pipeline accessories products. Forging flange The main materials are carbon steel, alloy steel, stainless steel. The main criteria are GB, superscript, American Standard, German standard, the Japanese standard and so on.
The main anti-corrosion treatment is oil and galvanized. Forging flange pressure, temperature performance is better, generally applicable to high pressure and high temperature working environment.
Flat Face, Raised Face, Ring Joint Face, Lap Joint Face, Male Face, Female Face, Tongue & Groove Face
Weld Neck Flange, Slip On Flange, Blind Flange, Socket Welding Flange, Thread Flange, Reducing Flange,Spectacle Blind Flange, Orifice Flange
Forged flange applications
Forged flanges are used as a connection component for pipes, valves, pumps and other equipment to form a pipework system. They provide easy access for cleaning, inspection, modification or repairs.
Flanges are usually welded onto pipes or screwed onto a threaded pipe end and then joined with bolts to make the connection.
Bangdong Supply Astm A234 WPB Steel Elbow,Carbon Steel Thread Coupling, A234 WPB Carbon Steel Coupling.A Lap Joint Flange is used in conjunction with a stub end where the flange is slipped over the stub end fitting which is then connected to either to pipe or another fitting by welding or other mechanical means.
The flange itself is not fixed and is left loose for proper alignment with the connection it is matching to. The benefits of this assembly is if there is frequent or rapid disassembly and assembly during maintenance of the piping system. The ability to spin and position the flange compensates for any misalignment of the bolt holes during reassembly.
- Best and High Quality Bright Annealing Seamless Steel Tube.
- Inside & Outside surface with Bright Annealed.
- Outside surface polished if customer requires.
- Controlled dimensional tolerance as per customer requirement.
- Maintain hardness for any kind of bending as per customers requirement.
- All grades Austenitic, Ferritic & Martensitic, Duplex & Super Duplex.
- In-house NDT testing facility available like ECT/UT/DP.
- Corrosion testing offered as per Specification.
- Approved by all Major National & international Inspection agencies.
- Certified as ISO 9001 : 2008, ISO 14001:2004, OHSAS 18001:2007, AD-2000 Merkblatt W0, PED 97/23/EC, NORSOK M-630 ED.5.
Grade: TP304/304L, 304H, TP316/316L, 316Ti, TP317/317L, TP321/321H, TP347/347H, TP405,TP410, S31260, S31500, S31803, S32550, S32750, S32760.
Size: 6.00 mm OD to 25.4 mm OD
Thickness: 0.6 mm THK to 6.00 mm THK
Specifications: ASTM A-269, A-268, A-213, A-789, Equivalent to ASME, EN, JIS Etc.
Applications: Heat Exchangers, Instrumentation, Hydraulic & Pneumatic system, Nuclear Power Plants, Automotive industries, Aerospace, Medical, Pharmaceuti
Looking for ideal Forged Weld Neck Flange Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Forged Slip on Flange are quality guaranteed. We are China Origin Factory of Stainless Steel Plate Flange. If you have any question, please feel free to contact us.
