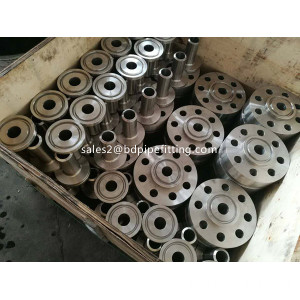

Asme B16.5 Slip-On Flanges SO Flange

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces
    Delivery Time: 15 Days

Basic Info

Model No.: so flange

Standard: DIN, GB, JIS, ANSI, GOST, BSW

Type: Welding Flange

Material: Carbon Steel

Manufacturing Way: Forging

Structure: Flanges

Connection: Welding

Sealing Surface: RF

Additional Info

Packaging: Wooden Cases or as per buyer's requirements

Productivity: 1000pcs/month

Brand: Bangdong

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

HS Code: 73079900

Port: Zhengzhou Train Station,Tianjin New Port,Beijing Air Port

Product Description

Slip-On Flanges, SO Flange


Slip-On Pipe Flanges. As made obvious by their name, these pipe flanges slip over the pipe. They're manufactured with an inside diameter that is slightly bigger than the pipe's outside diameter. These attachments are connected to the pipe via fillet weld at the top and bottom of the flange.

However, customers should bear in mind that this initial cost saving may be diminished by the additional cost of the two fillet welds required for proper installation. Moreover, weld-neck flanges have a higher life expentancy than slip-on flanges under duress.
Slip-on flanges are all bored slightly larger than the O.D. of the pipe. They are preferred over welding neck flanges bu many users due to their lower intial cost, but final intallation cost is probably not much less than that of the welding neck flange because of the additional welding involved.


Slip-On flanges or SO flanges are commonly lower in price than weld-neck flanges, and to this effect are a popular choice for our customers.

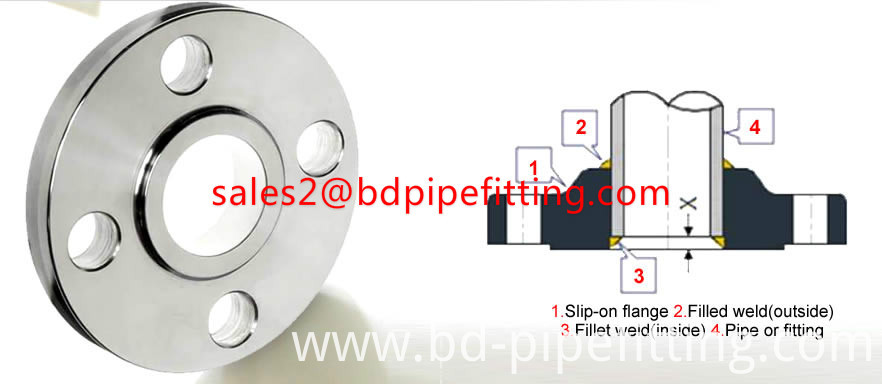

slip-on-flanges_banner
It is welded both inside and out to provide suffcient strength and prevent leakage.

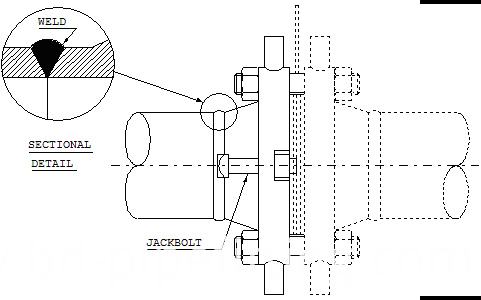

Weldneck and Slip-On Orifice Runs

Weldneck-and-Slip-On-Orifice-Runs

Advantages of slip on flanges:
  • Low cost installation
  • Less time needed to spent on ensuring the accuracy of the cut pipe
  • They are somewhat easier to align
  • The slip-on flanges have low hub because the pipe slips into the flange before welding
  • The flange is welded both inside and outside to provide sufficient strength
  • They prevent leakage
Standards, Dimensions & Weight
Slip-on flange is slipped over the pipe and then fillet welded. Slip-on flanges are easy to use in fabricated applications.
  • ASME/ANSI B16.5 Class 150 SO 300 SO 600 SO 900SO
  • BS 3293 Class 150SO 300 SO 600SO
  • DIN 86029 PN 10
Details of Slip On Flange

A combination of flange and elbow or flange and tee is not possible, because named fittings have not a straight end, that complete slid in the Slip On flange.

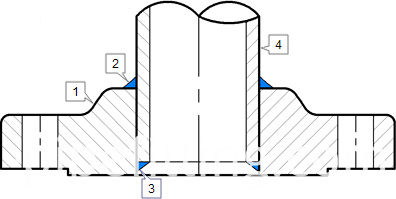

flg_so_det
1. Slip On flange 2. Filled weld outside 3. Filled weld inside 4. Pipe

Size: 1/2" to 72", DN 12mm to DN 1800mm .
Pressure class: Class 150 to Class 2,500, PN 2.5 to PN 250
Facing: RF / RTJ

Slip on pipe flanges in stock include AWWA slip on pipe flanges, ANSI slip on pipe flanges, Pressure Vessel slip on pipe flanges and slip on pipe flanges that match the OD and drilling of ASME flanges.


CARBON STEEL:

ASTM A105, A350-LF1, LF2, LF3 ASTM A181-60 etc
ALLOY STEEL:
ASTM A182 F9 F11 F22 etc.
STAINLESS STEEL:
ASTM A182 F321, F304, F304L, F316, F316L etc


Packing: plywood case and plywood pallet




face type:Flat Face, Raised Face, Ring Joint Face, Lap Joint Face, Male Face, Female Face, Tongue & Groove Face

Type:Weld Neck Flange, Slip On Flange, Blind Flange, Socket Welding Flange, Thread Flange, Reducing Flange,Spectacle Blind Flange, Orifice Flange


Forged Steel Flange are perfectly finished with precision using the latest machinery.

Dimension to be in accordance with JIS ANSI DIN BS standard accordingly.
Forged flange is defined as a plate type device, normally round, that is attached to the end of a pipe, fitting, valve or other object to facilitate the assembly and disassembly of a piping system.

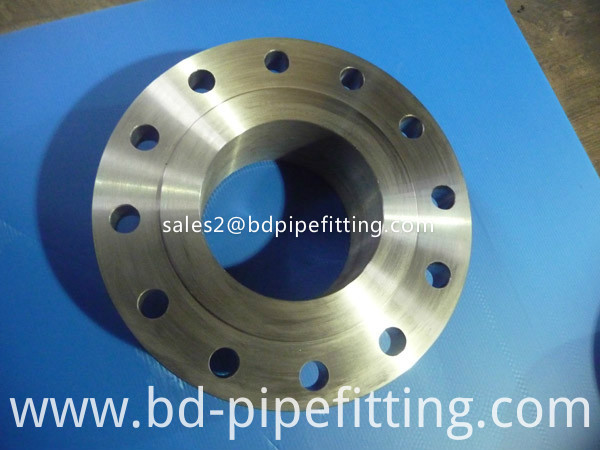

SO FLANGE

HTB1jpugjsnI8KJjSspeq6AwIpXaEHTB1zqAqir_I8KJjy1Xaq6zsxpXaG

Looking for ideal Alloy Steel FLAT FACE Flange Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Weld Threaded Socket Fittings are quality guaranteed. We are China Origin Factory of Weld Neck RF Flange. If you have any question, please feel free to contact us.
