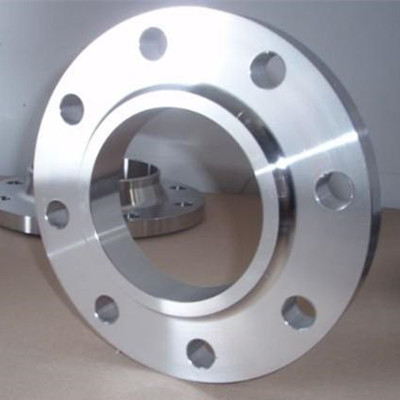

ASTM A694 F52 Anchor Flange

Share to:

Payment Type:	L/C,T/T
Incoterm:	FOB,CFR,CIF
Min. Order:	10 Piece/Pieces

Basic Info

Model No.: Anchor Flange

Brand: Bangdong

Standard: BSW

Type: Welding Flange

Material: Alloy Steel

Structure: Lateral

Connection: Welding

Sealing Surface: MFM

Manufacturing Way: Forging

Additional Info

Packaging: Wooden Cases or as per buyer's requirements

Productivity: 1000pcs/month

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

HS Code: 73079900

Port: Tianjin New Port,Beijing Air Port,Wuhan Train Station

Payment Type: L/C,T/T

Incoterm: FOB,CFR,CIF

Product Description

ASTM A694 F52 Anchor Flange . An anchor flange is a device installed on a pipeline to combat axial movement.

Bangdong Supply F52 Anchor Flange,Swivel Ring Flange,Groove Steel Flange.An Anchor Flange is designed to control internal pressure and temperature induced thrust in pipeline systems.We also supply a variety of Flanged Fittings including Welding Outlet Flanges, Nip Outlet Flanges, Elbow Outlet Flanges & Lateral Outlet Flanges.A Swivel Ring Flange allows easy alignment. An important and critical feature when bolting sub sea pipeline Flanges together for example.

Most common flange types

Slip-on Flanges

ASTM A335 P22 alloy pipe

Weld Neck Flanges

Blind Flanges

Lap Joint Flanges

Threaded Flanges

Socket-weld Flanges

Flanges Manufacturing Process

Raw material

1. Raw Material

2. Material Inspection

3. Material Cutting

4. Flange forging

5. Heat Treatment

6. Forging Rolling

7. Final Inspection

8. Rust Prevention

9. Well Packing

Flanges in stock :
Lap Joint Flange
Lap Joint Flange Stub End
Spectacle Blind Flange
Thread Flange
Blind Flange
Slip On Flange
Weld Neck Flange

Flange Factory

The outer ring Flange of the Swivel Ring Flange assembly is held in position by a retainer ring that freely rotates around the inner weld-neck hub for quickly positioning the bolt holes of the two joining Flanges.

Size : 1/2″NB TO 48″NB IN

Schedule: SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Type : Elbow 90deg, Elbow 45deg , Equal Tee , Reducing Tee , Concentric Reducer, Eccentric Reducer, Stub Ends, End Cap

MATERIALS :

Stainless Steel B/W Fittings
ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel B/W Fittings
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel B/W Fittings
ASTM A420 WPL3 / A420WPL6

Alloy Steel B/W Fittings
ASTM / ASME A/SA 234 Gr.WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91

Duplex Steel B/W Fittings
ASTM A 815 UNS NO S 31803 , S 32205.

Nickel Alloy End Cap,45 Deg Elbow, Barrel Nipple, Reducer, Stubend & Tee:
Standard: ASTM / ASME SB 336.
UNS 10276 (HASTELLOY C 276 Cap)
UNS 2200 (NICKEL 200 Cap ),
UNS 2201 (NICKEL 201 Cap ),
UNS 4400 (MONEL 400 Cap ),
UNS 8020 (ALLOY 20 Cap)
UNS 8825 INCONEL (825 Cap ),
UNS 6600 (INCONEL 600 Cap ),
UNS 6601 (INCONEL 601 Cap ),
UNS 6625 (INCONEL 625 Cap),

VALUE ADDED SERVICES
Hot Dip Galvanizing
Epoxy Coating

Tags End Cap ,45 Deg Elbow,Barrel Nipple, Reducer, stubend & Tee:

TEST CERTIFICATE
Mill Test Certificate as per EN 10204 / 3.1B

Quality Standard for Flanges
High quality Flanges all made and controlled to the relevant standards such as: ASME, ASTM, BS and DIN/WERKSTOFFE.

Sizes for Flanges
All flanges are available in sizes from 1/4" through to any size.

Wall Thickness for Flanges
Schedule 5s through to Schedule XXS and heavier.

Special items according to customer drawings.
Dimensions and Pressure Ratings for Flanges:
- ANSI, MSS- SP-44, BS3293, API 605 150lb through to 2500lb

- Flange Facings: Raised Face, Ring Type Joint, Large Tongue & Groove, Small Tongue & Groove

- BS4504 - PN6, 10, 16, 25, 64

- BS10 - Table D, E, F, & H

- DIN Standards
