Shijiazhuang Bang dong Pipeline Technology Co,Ltd.
Payment Type: | L/C,T/T |
---|---|
Incoterm: | FOB,CFR,CIF |
Min. Order: | 1 Piece/Pieces |
Model No.: BD-L reducing elbow
Brand: BD
Connection: Welding
Shape: Equal
Head Code: Round
Angle: 90 Degree
Wall Thickness: Sch80s
Material: Alloy
Technics: Forged
Certification: API
Color: Black

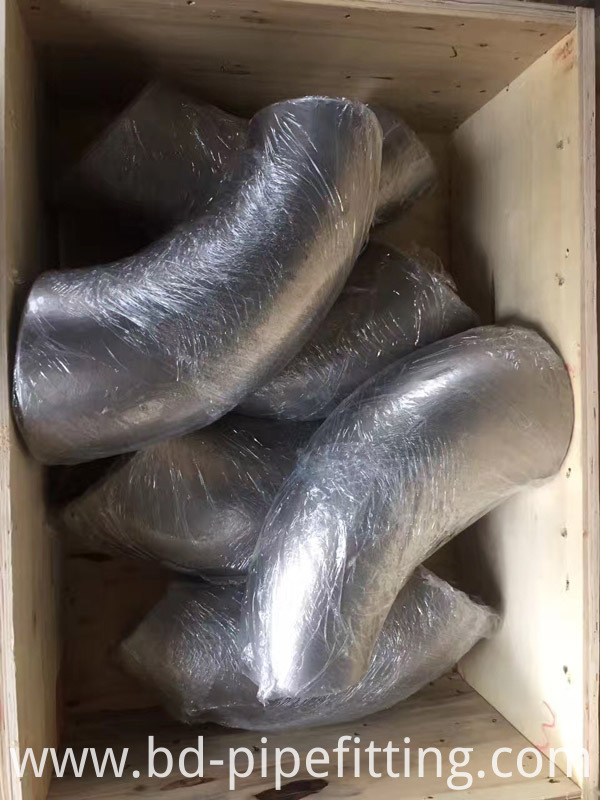

Packaging: Wooden Case or Pallet or as per client's requirements
Productivity: 100000pcs/year
Transportation: Ocean,Land,Air
Place of Origin: China
Supply Ability: 100pcs/month
Certificate: CE/API/ISO
HS Code: 73079300
Port: Tianjin,Qingdao,Beijing
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF
Dear Sirs , If you are in need of Reducing Elbow , please kindly contact us , we have exported A234 WPB Reducing Elbow , A234 WP91 reducing elbow , Carbon steel reducing elbows , A234 WPB Reduced Elbow , Alloy Steel Reducing Elbow , Stainless Steel Reducing elbow to different countries , we are good Special Elbow Factory , can make high quality reducing elbow or other special elbow .

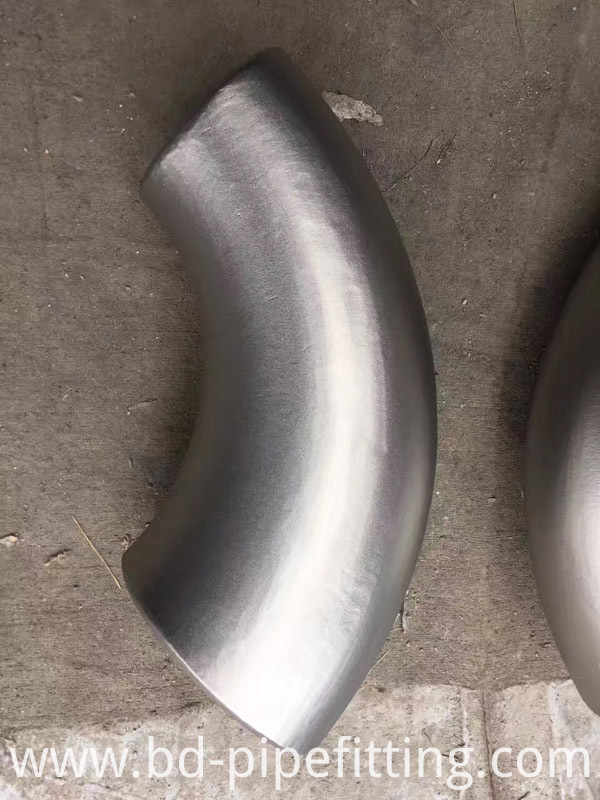

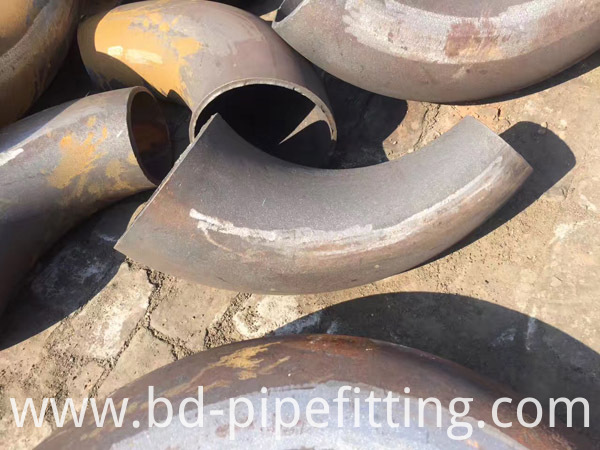

Reducing Elbow Introduction
A reducing elbow is a type of fitting which is used to join two pieces of pipe of different sizes. The reducing elbow is so called because it looks like a reducing piece and elbow combined into one. Reducing elbows have different sized openings on each end and hence they can connect two different sized pipes. They are available in different materials, sizes, finishes and colors.
Types of reducing elbow:
The reducing elbows are available in various types like:
· 90° reducing elbow
· 45° reducing elbow
· 135° reducing elbow
· 180° reducing elbow etc.
Dimension of reducing elbow :
Nominal Pipe Size | Center To End | Weight In Pounds |
2 X 1 | 3 | 1.2 |
2 X 1 1/4 | 3 | 1.3 |
2 X 1 1/2 | 3 | 1.4 |
2 1/2 X 1 1/4 | 3.75 | 2.5 |
2 1/2 X 1 1/2 | 3.75 | 2.6 |
2 1/2 X 2 | 3.75 | 2.8 |
3 X 1 1/2 | 4.5 | 3.3 |
3 X 2 | 4.5 | 3.6 |
3 X 2 1/2 | 4.5 | 4.2 |
3 1/2 X 2 | 5.25 | 4.5 |
3 1/2 X 2 1/2 | 5.25 | 5.5 |
3 1/2 X 3 | 5.25 | 6 |
4 X 2 | 6 | 6 |
4 X 2 1/2 | 6 | 6.8 |
4 X 3 | 6 | 7.7 |
4 X 3 1/2 | 6 | 8.4 |
5 X 2 1/2 | 7.5 | 10.7 |
5 X 3 | 7.5 | 11.8 |
5 X 3 1/2 | 7.5 | 12.6 |
5 X 4 | 7.5 | 13.4 |
6 X 3 | 9 | 16.8 |
6 X 3 1/2 | 9 | 17.8 |
6 X 4 | 9 | 18.9 |
6 X 5 | 9 | 21 |
8 X 4 | 12 | 33.1 |
8 X 5 | 12 | 36.2 |
8 X 6 | 12 | 39.7 |
10 X 5 | 15 | 58.5 |
10 X 6 | 15 | 63.2 |
10 X 8 | 15 | 73 |
12 X 6 | 18 | 86.5 |
12 X 8 | 18 | 98.4 |
12 X 10 | 18 | 113 |
Nominal Pipe Size | Center To End | Weight In Pounds |
2 X 1 | 3 | 1.7 |
2 X 1 1/4 | 3 | 1.8 |
2 X 1 1/2 | 3 | 1.9 |
2 1/2 X 1 1/4 | 3.75 | 2.9 |
2 1/2 X 1 1/2 | 3.75 | 3 |
2 1/2 X 2 | 3.75 | 3.4 |
3 X 1 1/2 | 4.5 | 4.5 |
3 X 2 | 4.5 | 4.9 |
3 X 2 1/2 | 4.5 | 5.7 |
3 1/2 X 2 | 5.25 | 6.4 |
3 1/2 X 2 1/2 | 5.25 | 7.3 |
3 1/2 X 3 | 5.25 | 8.2 |
4 X 2 | 6 | 8.4 |
4 X 2 1/2 | 6 | 9.4 |
4 X 3 | 6 | 10.5 |
4 X 3 1/2 | 6 | 11.4 |
5 X 2 1/2 | 7.5 | 15.1 |
5 X 3 | 7.5 | 16.5 |
5 X 3 1/2 | 7.5 | 17.4 |
5 X 4 | 7.5 | 18.8 |
6 X 3 | 9 | 24.9 |
6 X 3 1/2 | 9 | 26.3 |
6 X 4 | 9 | 27.9 |
6 X 5 | 9 | 31.4 |
8 X 4 | 12 | 49.5 |
8 X 5 | 12 | 54.3 |
8 X 6 | 12 | 60.8 |
10 X 5 | 15 | 78.5 |
10 X 6 | 15 | 86.5 |
10 X 8 | 15 | 102 |
12 X 6 | 18 | 114 |
12 X 8 | 18 | 132 |
12 X 10 | 18 | 148 |
|
|
|
If you require Combined Fittings , fitting components , special fittings please call me freely .
