Shijiazhuang Bang dong Pipeline Technology Co,Ltd.
Payment Type: | L/C,T/T |
---|---|
Incoterm: | FOB,CFR |
Min. Order: | 10 Piece/Pieces |
Model No.: BD-L Seamless Barred Tee
Brand: Bangdong
Type: Reducing
Connection: Welding
Material: Carbon Steel
Shape: Reducing Tee
Lateral: 90°Tee
Head Code: Round
Wall Thickness: STD
Finish: Black Painting
Technics: Forged
Pressure Rating: 2000LBS
Standard: ASTM
Certification: CE
Packaging: Wooden Case or Pallet or as per buyer's requirements
Productivity: 1000pcs/month
Transportation: Ocean,Land,Air,Train/TNT/DHL
Place of Origin: Cangzhou,China
Supply Ability: 1000pcs/month
Certificate: ISO/CE/API
HS Code: 73079900
Port: Beijing Air Port,Zhengzhou Train Station,Tianjin New Port
Payment Type: L/C,T/T
Incoterm: FOB,CFR

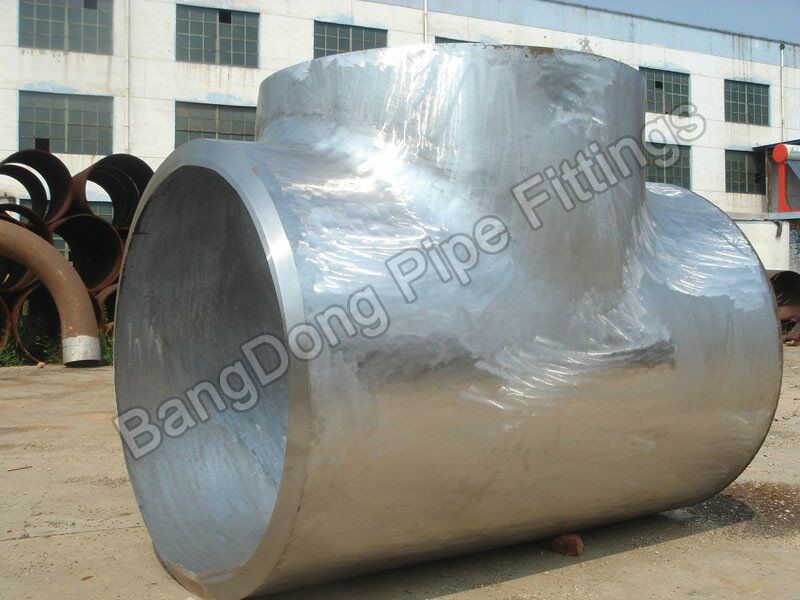

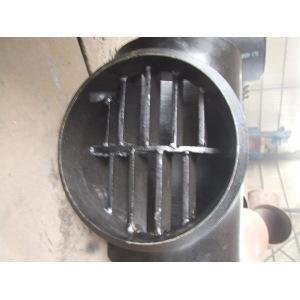

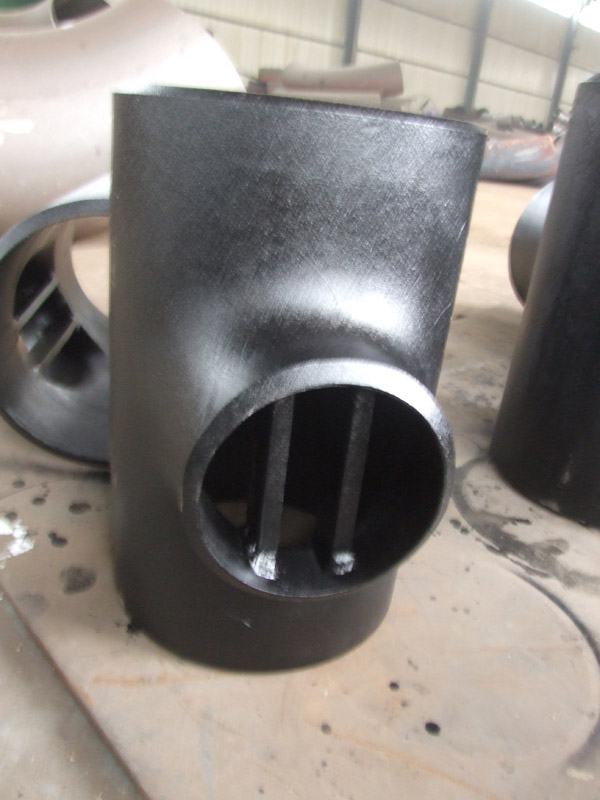

Astm A860 Wphy 65 Seamless Barred Tee
Bangdong Supply A860 WPHY X60 Equal Tee , Seamless Straight Barred Tee , A860 Wphy70 Barred Tee , A234 WPB Barred tee . The bars could be designed by clients requirements. Different materials are available . If you have inquiry of Special Tee , barred tee , please contact us freely . Custom made equal can be developed to befit the specific application requirement of the clients.

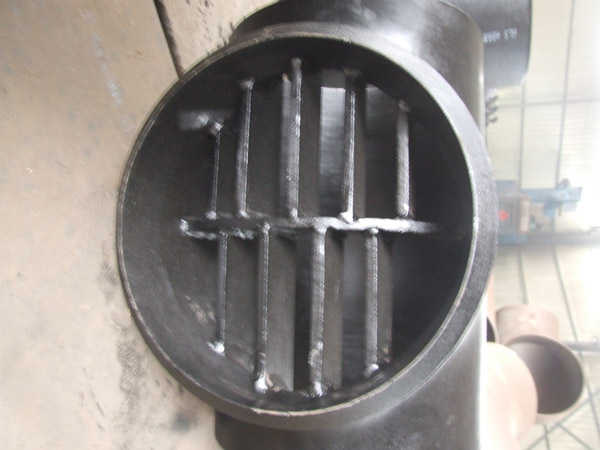

A barred tee (grate tee) is a tee or any fitting with a branch used in pipelines that is pigged and has a restriction bar welded internally preventing the pig from traveling down a branch connection. The bars are installed so they are flush with the inside diameter of the pipeline to keep the pig from hanging up when it passes through. The bars should be of a similar or identical material as the parent material. Barred tees are pipe fittings with two outlets, one at 90 ° to the connection to the main line that has tiny holes. Barred tees can either be extruded or fabricated and are used to connect two pieces of pipe or fittings. Barred tees are used in pipelines that are pigged. The bars in the branch should be installed flush with the inside diameter of main pipe. Commonly the bars are welded with the tees. Barred Tee Grades: Barred Tee drawings are available , or we could manufacturer according to your specific drawings . Nominal Pipe Size Outside diameter Center-to-End Run (C) Outlet(M) 1/2" 21.3 25 25 3/4" 26.7 29 29 1" 33.4 38 38 1 1/4" 42.2 48 48 1 1/2" 48.3 57 57 2" 60.3 64 64 2 1/2" 73.0 76 76 3" 88.9 86 86 3 1/2" 101.6 95 95 4" 114.3 105 105 5" 141.3 124 124 6" 168.3 143 143 8" 219.1 178 178 10" 273.0 216 216 12" 323.8 254 254 14" 355.6 279 279 16" 406.4 305 305 18" 457.0 343 343 20" 508.0 381 381 22" 559.0 419 419 24" 610.0 432 432 The dimensions are in millimeters Source : ASME B16.9 - 2007 Pipe Barred Tee In stock : A234 WPB Equal Barred Tee A234 WPB Reducing Grate Tee A234 WPB Lateral Tee A234wp11 Butt Weld Barred Tee A420 WPL6 Butt Weld Barred Tee A860 Wphy60 Equal Tee with bars A860 WPHY70 Reducing barred Tee

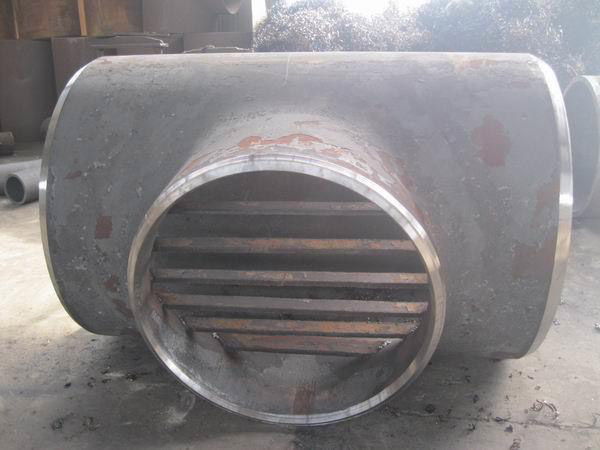

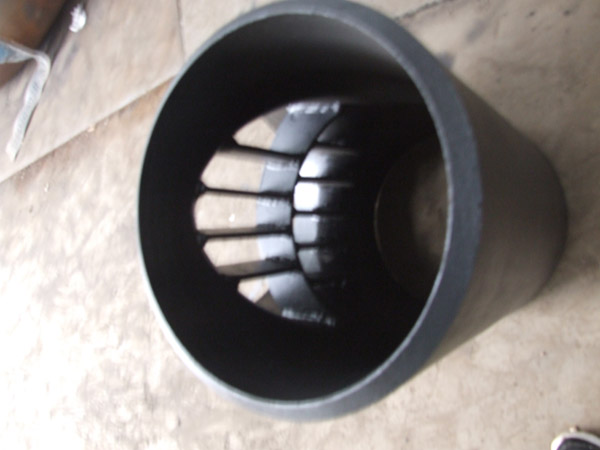

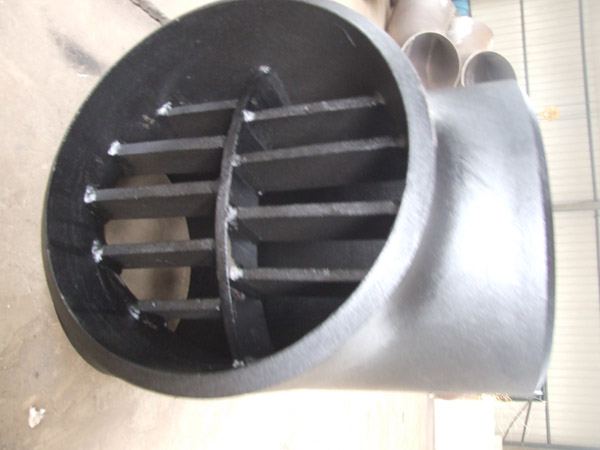

Bars are placed on the internal side of a tee or really any branch connection big enough to sidetrack a pig while traveling down a pipeline. The size of the bars on the tee should be small enough so that they do not restrict the flow from the branch connection. However, they should be large enough to prevent breakage based on the flow rate through the branch connection of the tee.
·Stainless Steel: ASTM, A403, WP304 / 304L / 304H / 316 / 316L / 317 / 317L / 321 / 310 / 347 / 904L
·Carbon Steel: ASTM, A234, WPB / A420, WPL3 / A420, WPL6 / MSS-SP-75, WPHY 42 / 46 / 52 / 56 / 60 / 65 / 70
·Alloy Steel: Astm A234 WP1 / WP5 / WP9 / WP11 / WP22 / WP91 Asme B16.9 Butt weld Barred Equal Tee Dimensions
at bevel
Size: Dn100- DN1200
Specification: Sch20- Sch 160 .
Standard: ASME/ANSI B16.9.
Coating: Black painted, varnish oil.
Packing: Wooden case, pallet.
Product Categories : Butt Weld Pipe Fitting > Pipe Equal/Reducing Tee
