Shijiazhuang Bang dong Pipeline Technology Co,Ltd.
Payment Type: | L/C,T/T |
---|---|
Incoterm: | FOB,CFR,CIF |
Min. Order: | 1 Piece/Pieces |
Model No.: Barried Equal Reducing Tee
Brand: Bangdong
Type: Equal
Connection: Welding
Material: Carbon Steel
Shape: Equal Tee
Lateral: 90°Tee
Head Code: Round
Wall Thickness: SCH30
Finish: Black Painting
Technics: Welded
Pressure Rating: 3000LBS
Standard: ASTM
Certification: BV
Packaging: Wooden Case or Pallet or as per buyers requirements
Productivity: 1000pcs/month
Transportation: Ocean,Land,Air,Train/TNT/DHL
Place of Origin: Cangzhou
Supply Ability: 1000pcs/month
Certificate: ISO/CE/API
HS Code: 73079300
Port: Tianjin New Port,Beijing Air Port,Shanghai Port
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF

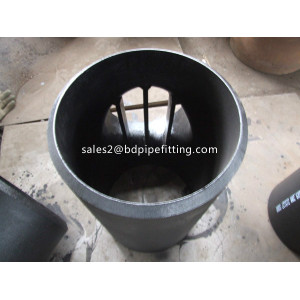

ASME Butt Weld Seamless Barried Equal Reducing Tee
We have specialization to manufacture customized Asme B16.9 Butt weld Equal Tee per customers` specifications, we welcome small quantity order.
ASME B16.9 Butt Weld Pipe Fitting ,Hot Formed Tee,High Pressure Tee MANUFACTURERS. ASME B16.9 BUTTWELD Barred Tee, ASTM A403 SS ASME B16.9 BUTT WELD BARRED TEES, ASME B16.9 BUTT WELD BARRED TEE DIMENSIONS, ALLOY STEEL ASME B16.9 BUTTWELD BARRED TEE, 304 SS ASME B16.9 BUTTWELD BARRED TEE, HIGH QUALITY ASME B16.9 BUTTWELD BARRED TEE MANUFACTURER OF IN China
A barred tee is a tee or any fitting with a branch used in pipelines that is pigged and has a restriction bar welded internally preventing the pig from traveling down a branch connection. The bars are installed so they are flush with the inside diameter of the pipeline to keep the pig from hanging up when it passes through. The bars should be of a similar or identical material as the parent material.
Bars are placed on the internal side of a tee or really any branch connection big enough to sidetrack a pig while traveling down a pipeline. The size of the bars on the tee should be small enough so that they do not restrict the flow from the branch connection. However, they should be large enough to prevent breakage based on the flow rate through the branch connection of the tee.
ASME B16.9 Butt weld barred Equal Tee
Standards: ANSI – B 16.9
ASTM A403 – ASME SA403 – `Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings`
ASME B16.9 – `Factory-Made Wrought Buttwelding Fittings"
ASME B16.25 – `Buttwelding Ends`
MSS SP-43 – `Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications`
Schedule: Sch 5 TO Sch XXS.
Variations: Welded & Seamless
Sizes: 1/2" TO 36"
(SEAMLESS UPTO 24")
(WELDED 8" TO 36" )
Materials: Stainless Steel, Alloy Steel, Carbon Steel,
Stainless Steel ASME / ASTM SA / A403 SA / A 774 WP-S, WP-W, WP-WX, 304, 304L, 316, 316L, 304/304L, 316/316L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Type: Butt Weld (BW)
Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Dimension: Outside diameter : 1/2" à 24"
(21,34 – 609,5 mm)
Thickness : SCH 5S, 10S, 40S (STD), 80S (XS), 160, XXS
(1,65 – 59.51 mm)
ASME B16.9 Butt weld Equal Tee Godown
Product Categories : Butt Weld Pipe Fitting > Pipe Equal/Reducing Tee
