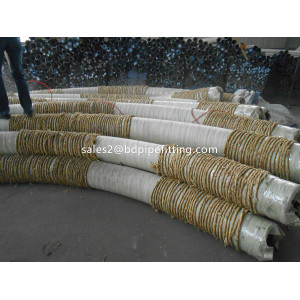

A234 wpb 5d Pipe bend

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR
    Min. Order: 10 Piece/Pieces
    Delivery Time: 15 Days

Basic Info

Model No.: 5d Pipe bend

Connection: Welding

Shape: Equal

Head Code: Round

Angle: 90 Degree

Wall Thickness: Sch10

Material: Carbon Steel

Technics: Forged

Certification: ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API

Color: Black

Additional Info

Packaging: Wooden Cases or as per buyer's requirements

Productivity: 1000pcs/month

Brand: Bangdong

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

HS Code: 73079300

Port: Tianjin New Port,Wuhan Train Station,Zhengzhou Train Station

Product Description

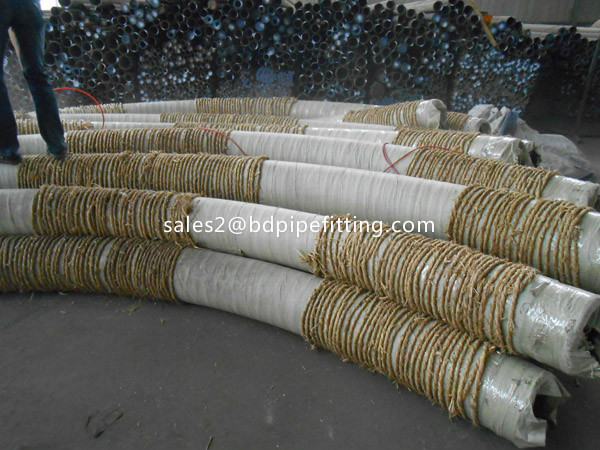

5D Pipe bend

What is 5D in bend pipe?

The RADIUS of a 5D pipe bend is actually what is 5 times the nominal diameter. So if you had a 10" diameter pipe, the radius of the centerline of the bend would be 50 inches.

How do you know a 3D Bend or 5D Bend ?

It is the radius of bend of the elbow with reference to a point,the point is determined by the intersection of two lines from the elbows socket end (which makes the shape of one quater of a circle). The bend ie; 1.5d,3d,5d,12d is determined from that point of intersection as a multiple of elbows diameter.



A 5D pipe bending is a pipe bend that the bend radius is 5 times the pipe outside diameter.

We are passionate about pipe bending:

Pipe Elbow/Bend, Bend pipe, Pipe bending, ANSI, ISO, JIS and DIN Standards, Measures 1/2 to 56 Inches.

The bend is used to change the direction of run of pipe.it advantage is can matach long distance transition requirements,so it is commonly that bends dimension according to customer design. usually,the bends consist of 3D, 5D, 7D and 12D series.

Key Specifications/Special Features:

End bevel: according to the bevel of welding pipe fittings construction all the size can product according to the clients' requiry.

Standard:

  • Asme B16.9
  • ASME B16.28
  • ANSI/ASME B16.25
  • MSS SP-97
Pressure: SCH5 to SCH160


Bending radius(R): R=3D, 5D, 7D and 12D
Bending angle (θ):15°, 30°, 45°, 60°, 90°, 135°, 180°
Outer diamete(D): D≤1800mm
Wall thickness(T): T≤120mm
Straight Length (L): The length between two ends general from 300mm-1500mm


Materials
  • Carbon steel: ASTM/ASME A234 WPB-WPC
  • Alloy steel: ASTM/ASME A234 WP 1-WP 12-WP 11-WP 22-WP 5-WP 91-WP 911
  • Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
  • ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
  • ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
  • Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
  • High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70


Industrial Processes

Bending, squeezing, pressing, forging, machining and more

Bends in stock

Butt Weld Pipe Bend

Carbon Steel Bend
Radius Elbow Bend
2D Bend 3d Bend 5d Bend
Hot Induction Bend

Galvanized Pipe Fittings


Butt Weld Pipe Bend

Looking for ideal Carbon Steel Butt Weld Pipe Bend Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the A420 WPL6 Hot Induction Bend are quality guaranteed. We are China Origin Factory of A234wp5 WP11 Bend. If you have any question, please feel free to contact us.

Product Categories : Butt Weld Pipe Fitting > Pipe Elbow/Bend
