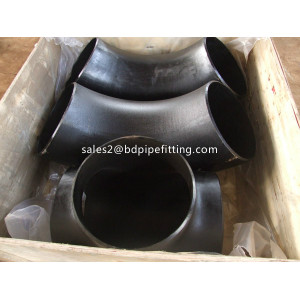

A234 wpb carbon steel elbow

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR
    Min. Order: 10 Piece/Pieces
    Delivery Time: 15 Days

Basic Info

Model No.: carbon steel elbow

Connection: Welding

Shape: Equal

Head Code: Round

Angle: 90 Degree

Wall Thickness: STD

Material: Stainless Steel

Technics: Pushing

Certification: ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API

Color: Black

Additional Info

Packaging: Wooden Cases or as per buyer's requirements

Productivity: 1000pcs/month

Brand: Bangdong

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

HS Code: 73079300

Port: Tianjin New Port,Wuhan Train Station,Zhengzhou Train Station

Product Description

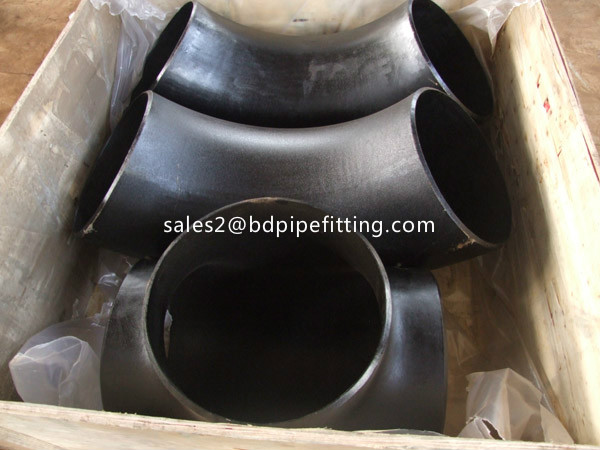

Carbon steel elbow

An Pipe Elbow is a Pipe Fitting installed between two lengths of pipe or tubing to allow a change of direction, usually a 180° or 90° angle, though 45° elbows are also made. The ends may be machined for butt welding (BW) or socketed welding(SW) etc.


Most elbows are available in short radius or long radius variants. When the two ends differ in size, the fitting is called a Reducing Elbow or reducer elbow.

Elbows are categorized based on various design features as below:

Long Radius (LR) Elbow is also called LR Elbow – means the radius is 1.5 times the pipe diameter

L/R 45°Elbow: Long radius 45 degree elbow changes the direction by 45 degrees.

L/R 90°Elbow: Long radius 90 degree elbow changes the direction by 90 degrees.

L/R 180°Elbow: Long Radius 180 degree return bend allows complete reversal of flow.


Short Radius (SR) Elbow is also called Sr Elbow , – means the radius is 1.0 times the pipe diameter

Short radiu 45°Elbow: Short radius 45° elbow changes the direction by 45 degrees.

Short radius 90°Elbow: Short Radius 90° elbow is same as LR90 except for the measurement between end of elbow to center line is 1 x NPS.

Short radius 180° Elbow: Short Radius 180° return bend allows complete reversal of flow


Carbon steel elbow

Carbon steel elbows are curved connecting pieces that join straight lengths of pipe, commonly at a 90° or 45° angle, allowing obstructions to be avoided in plumbing, ventilation, welding, and automotive applications.

Big Diameter elbows
+ Big diameter elbow

We supply carbon steel elbows of different standards(ASTM, ASME, NACE, MSS).







Size range:
  • Seamless elbow: 1/2"-24" DN15-DN600
  • Welding elbow: 6"-72" DN150-DN1800
  • Wall thickness: Sch5-Sch160 XXS
  • External arc length of elbow

Recommended type of pipe elbows:

  • Small size reducing elbow
  • Socket Elbow ,ElbowIn Different Od
  • Carbon steel: ASTM/ASME A234 WPB -WPC
  • Alloy Steel : --WP 22-WP 5-WP 91-WP 911
    • ASTM A335 P22
    • ASME SA335 P91 elbow
    • Astm A234 WP 11
  • Low temperature steel: ASTM/ASME A402 WPL 3-WPL 6
  • High performance steel: ASTM/ASME A860 WPHY 42-46-52-60-65-70
  • Stainless steel: ASTM/ASME A403 WP 304-304L-304H-304LN-304N
    • ASTM/ASME A403 WP 316-316L-316H-316LN-316N-316Ti
    • ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H
    • ASTM/ASME A403 WP 321-321H ASTM/ASME A403 WP 347-347H

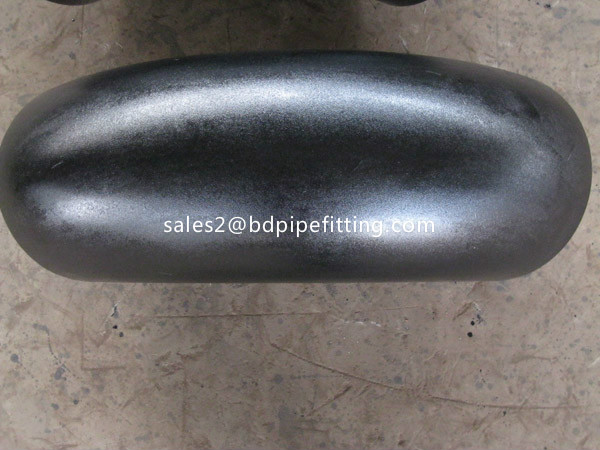

    • Butt Weld Pipe Elbow

Looking for ideal B16.9 A420 Wpl6 Carbon Steel Fitting Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Reducing LR Elbow In Different OD are quality guaranteed. We are China Origin Factory of Large Diameter Hot Galvanized Fitting. If you have any question, please feel free to contact us.
