Shijiazhuang Bang dong Pipeline Technology Co,Ltd.

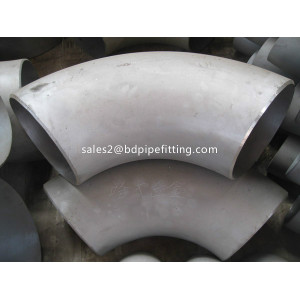

Model No.: Stainless pipe elbows
Head Code: Round
Angle: 90 Degree
Wall Thickness: STD
Material: Stainless Steel
Certification: ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API
Packaging: Wooden Cases or as per buyer's requirements
Place of Origin: Cangzhou,China
Supply Ability: 1000pcs/month
HS Code: 73079300
Port: Tianjin New Port,Wuhan Train Station,Zhengzhou Train Station

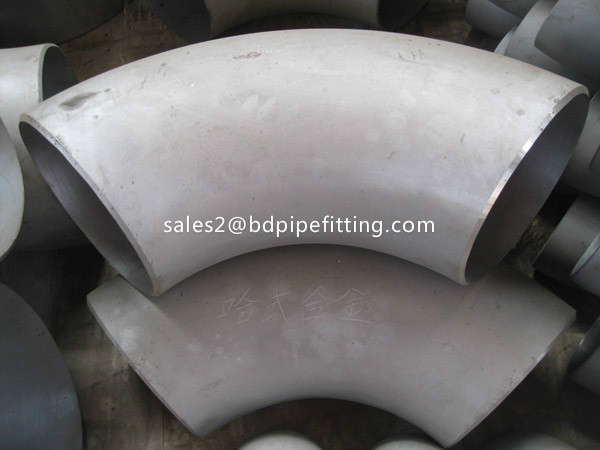

Stainless Pipe Elbow are curved connecting pieces that join straight lengths of pipe, commonly at a 90° or 45° angle, allowing obstructions to be avoided in plumbing, ventilation, welding, and automotive applications.

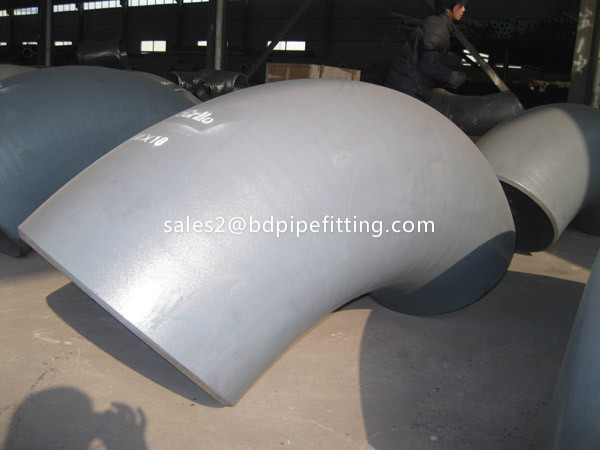

We have adopted advanced production equipment to make our short radius elbows(1D D711.2~D1219.2), which can not only improve product quality, but also save raw materials.
Thick VS Thin
Elbows Inside welded
Also known as "marine grade" stainless steel due to its increased ability to resist saltwater corrosion compared to type 304. SS316 is often used for building nuclear reprocessing plants.
Bending, squeezing, pressing, forging, machining and more
Our pipe elbows are widely used in many industries, such as power generation, petroleum, natural gas, chemicals, shipbuilding, heating, papermaking, metallurgy and so on.
An pipe elbow is a Pipe Fitting installed between two lengths of pipe or tubing to allow a change of direction, usually a 180° or 90° angle, though 45° elbows are also made. The ends may be machined for butt welding (BW) or socketed welding(SW) etc.
Most elbows are available in short radius or long radius variants. When the two ends differ in size, the fitting is called a Reducing Elbow or reducer elbow.
Elbows are categorized based on various design features as below:
Long Radius (LR) Elbow is also called LR Elbow – means the radius is 1.5 times the pipe diameter
L/R 45°Elbow: Long radius 45 degree elbow changes the direction by 45 degrees.
L/R 90°Elbow: Long radius 90 degree elbow changes the direction by 90 degrees.
L/R 180°Elbow: Long Radius 180 degree return bend allows complete reversal of flow.
Short Radius (SR) Elbow is also called Sr Elbow , – means the radius is 1.0 times the pipe diameter
Short radiu 45°Elbow: Short radius 45° elbow changes the direction by 45 degrees.
Short radius 90°Elbow: Short Radius 90° elbow is same as LR90 except for the measurement between end of elbow to center line is 1 x NPS.
Short radius 180° Elbow: Short Radius 180° return bend allows complete reversal of flow
Recommended type of pipe elbows:
