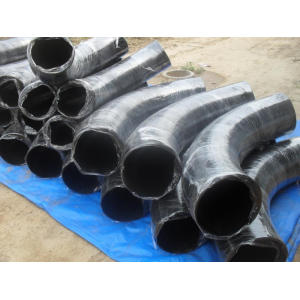

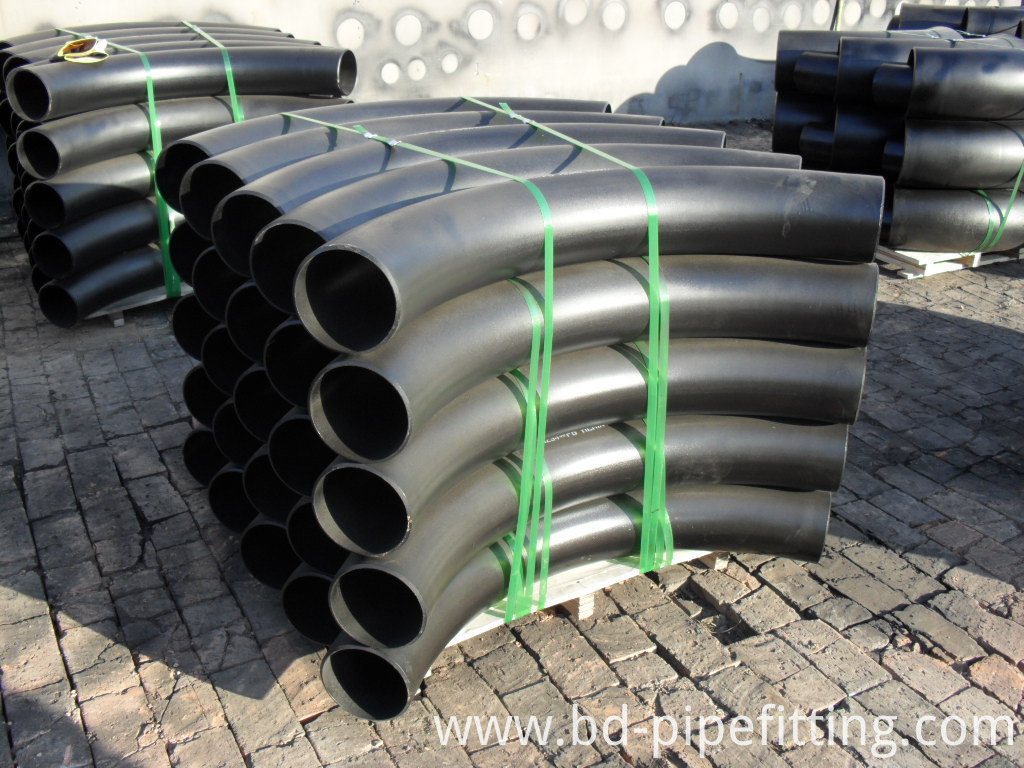

Seamless Carbon Steel Pipe 5D Bend
PIPE BENDS, PIGGABLE BENDS, U-BENDS, RETURN BENDS, MITER BENDS, LONG RADIUS BENDS, HOT INDUCTION BENDS, Seamless Pipe BENDS, Welded Pipe BENDS, J PIPE BENDS
MANUFACTURER/EXPORTER IN CHINA | ASME/ANSI B16.9, ANSI B16.28, MSS-SP-43
CARBON, ALLOY, STAINLESS STEEL BENDS – 3D, 4D, 5D, 6D, 8D, 10D
Bangdong is ISO 9001:2015 certified company and Leading manufacturer & exporter of stainless steel bends, carbon steel bends, and alloy steel bends in a complete range of radius and diameters. Steel Pipe bends can be manufactured from a wide range of pipe materials – including low and high yield carbon steels, alloy steels, stainless steels, We specialise in the manufacture of large and small size stainless steel bends and piggable bends in grades Duplex, 310S, 304L, 316L, 317L, 347, 321, 904L.
Generally stainless steel bends and carbon steel bends can be manufactured from seamless or welded pipes, but the choice is made taking into consideration the technical challenges involved.
Increasing number of customers in the petrochemical industry are choosing stainless steel bends, carbon steel bends and nickel alloy bends as a preferred option for modern piping and tubing systems, as good quality pipe bends significantly reduce the need for welding and use of pipe fittings. Use of stainless steel bends, carbon steel bends and alloy steel bends in piping systems also improves the flow of fluids in the piping system.
Our pipe bends find applications across various industry verticals such as petroleum, power generation, natural gas, chemicals, ship building, and other industries.
Steel Pipe Bends/Piggable Bends Production Range
| Outside Diameter: | Seamless Pipe Bends (1/2″ – 24″), ERW / Welded / Fabricated Pipe Bends (2″ – 36″) |
| Wall Thickness: | 3mm-40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS |
| Bending Radius: | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Product Angle: | 0° – 180° |
| Production Grades: | Stainless Steel, Alloy Steel, Low temperature Steel, Carbon Steel, |
| Value Added Services: | Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering |
Steel Bends, Stainless Steel Bends Manufacturer, Piggable Bends, Miter Bends Exporter, 3D Bends, 5D Bends – Buy Now
Bangdong is a premier worldwide manufacturer, exporter and supplier of stainless steel bends, carbon steel bends, and alloy steel bends in a complete range of radius and diameters. All our products are supplied with Test Certificates as per EN 10204 3.1, with complete chemical and physical test results.
Manufacturing Standards
| ASME: | ANSI B16.9, ANSI B16.28, MSS-SP-43 |
| DIN: | DIN2605, DIN2615, DIN2616, DIN2617, DIN28011 |
| EN: | EN10253-1, EN10253-2 |
| ASTM A403 – ASME SA403 | Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings |
| Asme B16.9 | Factory-Made Wrought Fittings Buttwelding |
| ASME B16.25 | Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
Pipe Bends Material Grades
| Stainless Steel Bends | ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L |
| Carbon Steel Bends | ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70. |
| Low Temperature Carbon Steel Bends | ASTM A420 WPL3, A420 WPL6 |
| Alloy Steel Bends | ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91 |
| |
Marking & Packing
Products are packaged to ensure that there is no damage during transit. In case of exports, standard export packaging is done in wooden cases. All elbow fittings are marked with Grade, Lot No, Size, Degree and our trade mark. On special requests we can also, make custom marking on our products.
Quality Assurance
At Bangdong , all fittings and flanges are subject to strict inspection at each stage of the production process, from starting material purchasing to product dispatch. They are visually examined for conformity to ASTM, ASME, MSS, DIN, EN, and JIS codes and standards. Upon request, official certified Inspection Agencies can be called in to witness the material reports, dimensions and quality conformity of products.
Test Certificates:
Manufacturer Test Certificate as per EN 10204 / 3.1B, Raw Materials Certificate, 100% Radiography Test Report, Third Party Inspection Report
Bangdong Supply Outlet Branch Fittings,Forged Weld Fittings,Forged Weld Flanges.ASTM A335 Alloy Steel Seamless Pipes, ASTM A213 Alloy Steel Seamless Tubes, ASTM A182 Fittings and FLanges, Astm A234 Fittings.All products are industry-standard conforming to ASTM, ASME, ANSI and other nathional and international standard. These pipes are available in different size, specification, grades and thickness. We supply as per customer's requirement also.
Chrome Moly Pipe has become a standard in the power generation industry and the petrochemical industry, not only because of its tensile strength, corrosion resistance and high-temperature strength, but also because of its cost-effectiveness. Grades P-11, P-22 – P-91 & P-92 are prevalent grades for the power industry, while P-5 & P-9 are the grades utilized in major refinery processing.
Chrome Moly Pipe Specifications & Grades
SA335 & A335 – Grades P5, P9, P11, P22, P91, P92
A691 1-1/4 Chrome through 9 Chrome (Welded Alternative to A335)
Flanges & Fittings
Alloy Butt Weld Fittings: A/SA-234
WP-5, WP-9, WP-11 (Class 1 & 2), WP-22 (Class 1 & 3), WP-91, WP-92
Alloy Forged Fittings & Flanges: A/SA-182
F-5, F-9, F-11 (Class 1 & 2), F-22 (Class 1 & 3), F-91, F-92
Alloy Steel Pipes
A335 P1 Seamless Pipe
A335 P2 Seamless Pipe
A335 P5 Seamless Pipe
A335 P9 Seamless Pipe
A335 P11 Seamless Pipe
A335 P12 Seamless Pipe
A335 P21 Seamless Pipe
A335 P22 Seamless Pipe
A335 P23 Seamless Pipe
A335 P36 Seamless Pipe
A335 P91 Seamless Pipe
A335 P92 Seamless Pipe
A335 P911 Seamless Pipe
Alloy Steel Tube
A213 T2 Seamless Tube
A213 T5 Seamless Tube
A213 T9 Seamless Tube
A213 T11 Seamless Tube
A213 T12 Seamless Tube
A213 T17 Seamless Tube
A213 T21 Seamless Tube
A213 T22 Seamless Tube
A213 T23 Seamless Tube
A213 T24 Seamless Tube
A213 T36 Seamless Tube
A213 T91 Seamless Tube
A213 T92 Seamless Tube
A213 T122 Seamless Tube
A213 T911 Seamless Tube
Alloy Steel Fittings
Alloy Steel Flanges
