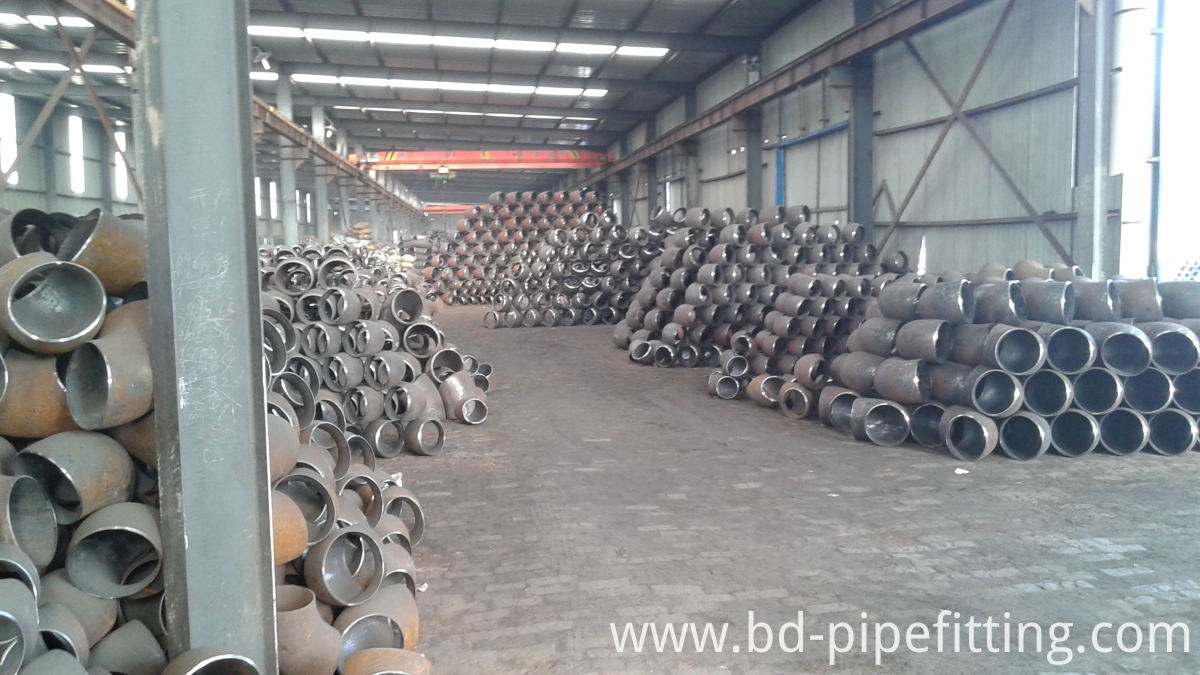

Bw-Fitting Miter Elbow for A420 (WPL3 WPL6WPL9)

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces
    Delivery Time: 23 Days

Basic Info

Model No.: Miter Elbow

Connection: Welding

Shape: Equal

Head Code: Round

Angle: 30 Degree

Wall Thickness: Sch160

Material: Carbon Steel

Technics: Forged

Certification: ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API

Color: Black

Additional Info

Packaging: Wooden Case or Pallet or as per buyer's requirements

Productivity: 1000pcs/month

Brand: Bangdong

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

HS Code: 73079900

Port: Beijing Air Port,Tianjin New Port,Zhengzhou Train Station

Product Description

Bw-Fitting Miter Elbow for A420 (WPL3, WPL6, WPL9)

Bangdong Supply A234 WP11 Buttweld Fittings,A234 WP5 Buttweld Fittings,A420 WPL6/WPHY52 Buttweld Fittings.Pipe comes in a very wide range of sizes in which with Power and Process piping, designers utilize standards controlled by organizations such as ASTM and ASME.The most common industry pipe sizes includes ¼" through to 12″ NPS and larger sizes typically increase in 2″ increments thereafter. The Nominal pipe size (NPS) pertains to the pipe size by name only, as the actual outside diameter or O. D. is different for the 12″ and under size range.

Most elbows are available in short radius or long radius variants. When the two ends differ in size, the fitting is called a Reducing Elbow or reducer elbow.

Elbows are categorized based on various design features as below:

Long Radius (LR) Elbow is also called LR Elbow – means the radius is 1.5 times the pipe diameter

L/R 45°Elbow: Long radius 45 degree elbow changes the direction by 45 degrees.

L/R 90°Elbow: Long radius 90 degree elbow changes the direction by 90 degrees.

L/R 180°Elbow: Long Radius 180 degree return bend allows complete reversal of flow.


Short Radius (SR) Elbow is also called Sr Elbow , – means the radius is 1.0 times the pipe diameter

Short radiu 45°Elbow: Short radius 45° elbow changes the direction by 45 degrees.

Short radius 90°Elbow: Short Radius 90° elbow is same as LR90 except for the measurement between end of elbow to center line is 1 x NPS.

Short radius 180° Elbow: Short Radius 180° return bend allows complete reversal of flow

Following are the specifications of this range:

Size: 1/2"NB TO 48"NB IN

Schedule: SCH 10, SCH 20, SCH 30, SCH 40, STD, SCH 80, SCH XS, SCH 60, SCH 80, SCH 120, SCH 140, SCH 160, SCH XXS

Type: Seamless / ERW / Welded / Fabricated


Form: 15 Deg Elbow, 30Deg Elbow, 45 Deg Elbow, 90 Deg Elbow, 180 Deg Elbow, Short Radius, Long Radius, 3D, 5D, 6D, 8D, 10D & 2

Use of induction bending is especially beneficial where laminar flow is desired. This technology can replace most elbows and fittings used in traditional

designs.

Elbow Reduced

90 Reducing Elbow

Elbow In Different OD

A403 304/304L Elbow

Special Elbow

Reduced Elbow

Reducing Elbow



An elbow is a Pipe Fitting installed between two lengths of pipe or tubing to allow a change of direction, usually a 90° or 45° angle, though 22.5° elbows are also made. The ends may be machined for butt welding, threaded (usually female), or socketed, etc. When the two ends differ in size, the fitting is called a reducing elbow or reducer elbow.

45 Degree 1.5D Elbow
Short radius elbows
90 Degree 1.5D Elbow
Long radius elbows
45 Degree 1.5D Elbow
Stainless pipe elbows
Larg size diameter elbows
Big diameter elbows

A 45 degree elbow is also called a [45 bend" or [45 ell". It iElbows are categorized based on various design features as below:

  • Long Radius (LR) Elbows – radius is 1.5 times the pipe diameter
  • Short Radius (SR) Elbows – radius is 1.0 times the pipe diameter
  • 90 Degree Elbow – where change in direction required is 90°
  • 45 Degree Elbow – where change in direction required is 45°

A 90 degree elbow is also called a [90 bend" or [90 ell". It is a fitting which is bent in such a way to produce 90 degree change in the direction of flow in the pipe. It used to change the direction in piping and is also sometimes called a [quarter bend". A 90 degree elbow attaches readily to plastic, copper, cast iron, steel and lead. It can also attach to rubber with stainless steel clamps. It is available in many materials like silicone, rubber compounds, galvanized steel, etc. The main application of an elbow (90 degree) is to connect hoses to valves, water pressure pumps, and deck drains. These elbows can be made from tough nylon material or NPT thread.s commonly used in water supply facilities, food industrial pipeline networks, chemical industrial pipeline networks, electronic industrial pipeline networks, air conditioning facility pipeline, agriculture and garden production transporting system, pipeline network for solar energy facility, etc.

Most elbows are available in short radius or long radius variants.

SHORT RADIUS ELBOWS

The short radius elbows have a center-to-end distance equal to the Nominal Pipe Size (NPS) in inches, while the long radius is 1.5 times the NPS in inches. Short elbows are widely available, and are typically used in pressurized systems.

LONG RADIUS ELBOWS

Long elbows are typically used in low-pressure gravity-fed systems and other applications where low turbulence and minimum deposition of entrained solids are of concern.

Application of pipe elbows

Elbows (ells) can change a pipe`s direction that be fabricated on different principles like hydraulics, pneumatic depending on the end usage.

ELL & ELLS

  1. A wing of a building at right angles to the main structure.
  2. A right-angled bend in a pipe or conduit; an elbow.



Bw-Fitting Miter Elbow for A420 (WPL3, WPL6, WPL9)

Looking for ideal Carbon Stee WPB Elbow Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Stainless Steel Threaded Elbow are quality guaranteed. We are China Origin Factory of Alloy Steel A234 Elbow. If you have any question, please feel free to contact us.
