Alloy Steel Pipe Fittings ASTM A234 Wp5 Elbow

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR
    Min. Order: 10 Piece/Pieces
    Delivery Time: 15 Days

Basic Info

Model No.: ASTM A234 Wp5

Connection: Welding

Shape: Equal

Head Code: Round

Angle: 90 Degree

Material: Alloy

Technics: Forged

Certification: ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API

Color: Black

Wall Thickness: Sch20

Size: 1/2"~102"

Additional Info

Packaging: Wooden Cases or as per buyer's requirements

Productivity: 1000pcs/month

Brand: Bangdong

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

HS Code: 73079300

Port: Tianjin New Port,Wuhan Train Station,Zhengzhou Train Station

Product Description

Alloy Steel Pipe Fittings Elbow Butt Welded Astm A234 Wp5

Bangdong Supply Alloy Steel Pipe Fitting,Butt Welded Elbow,A234 Wp5 Elbow.Buttweld 1D 1.5D Elbow manufactured using superior grade raw materials.An elbow is a Pipe Fitting which is used as a connection point between two lengths of pipes to produce a change in the direction of flow in the pipe, usually at an angle of 90°. Elbows are also commonly referred as bends and are available in a range of materials such as stainless steel, carbon steel, alloy steel, nickel alloys, duplex, and cupro nickel.Buttweld 1D 1.5D Elbow | ASTM A403 ASME SA403 Stainless Steel Buttweld 1D 1.5D Elbow | ASTM A 234 Carbon Steel Buttweld 1D 1.5D Elbow | Asme B16.9 Buttweld 1D 1.5D Elbow

ASTM A234 WP5, WP9, WP11, WP12, WP22, WP91 Buttweld Fittings Chemical Composition

Chemical Composition Content %
Grade C Mn Si S P Cr Mo
A234WP5 ≤0.15 ≤0.6 ≤0.5 ≤0.04 ≤0.03 4-6 0.44-0.65
A234WP11 0.05-0.2 0.3-0.8 0.5-1 ≤0.030 ≤0.030 1-1.5 0.44-0.65
A234WP22 0.05-0.15 0.3-0.6 ≤0.5 ≤0.04 ≤0.04 2-2.5 0.87-1.13
A234WP91 0.08-0.12 0.3-0.6 0.2-0.5 ≤0.02 ≤0.015 8-9.5 0.85-1.05

ASTM A234 WP5, WP9, WP11, WP12, WP22, WP91 Buttweld Fittings Mechanical Properties

Mechanical Properties
Grade Tensile Strength (Mpa) Yield Strength (Mpa) Elongation %
A234Wpb 415-585 ≥240 ≥30
A234WP5 415-585 ≥205 ≥20
A234WP11 415-585 ≥205 ≥20
A234WP22 415-585 ≥205 ≥20
A234WP91 ≥590 ≥415 ≥20

ASTM A234 WP5, WP9, WP11, WP12, WP22, WP91 Buttweld Fittings Production Range

Type Seamless / Welded / Fabricated
Bending Radius R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Range ½"NB to102″ NB in Sch 10s, 40s, 80s, 160s, XXS.
Dimensions ANSI/ASME B16.9, B16.28, MSS-SP-43.


If you require any A234Wp11 Pipe Fitting , A420 Wpl6 Carbon Steel Pipe Fitting , Astm A420 Pipe Fitting please call me freely .

We also have good stock of Asme B16.9 A234Wp9 Elbow , Large Diameter Fitting


Type : Butt weld (BW)
Standards : ASME / ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings'
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'
Dimension : ANSI B16.9, ANSI B16.28, MSS-SP-43 Type A, MSS-SP-43 Type B, JIS B2312, JIS B2313
Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Schedule : Sch 5 TO Sch XXS.
Size : 1/2" TO 102", (Seamless up to 24"), (Welded 8" TO 102")

Materials and Grade:

Stainless Steel 1D 1.5D Elbow:
ASTM A403 WP316/316L
ASTM A403 WP304/304L
ASTM A182 F316L, 304L
DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Carbon Steel 1D Elbow:
ASTM A234 Gr. WPB
ASTM A420 Gr. WPL6
ASTM A105
ASTM A350 Gr. LF2

180° Return

90-deg Elbow

  • Size Range: 1/2"-102"
  • Wall thickness: Sch10, Sch40, Sch80
  • Material: Alloy Steel ASTM A234 WP5 WP9, WP11, WP12, WP22, WP91
  • Standard:
    ASME B16.9
    DIN2605
    JIS B2312
  • Coating: Black Paint, Galvanized
  • Type: Long Radius(R=1.5D), Short Radius(R=1D)

45° Elbow

45-deg Elbow

  • Size Range: 1/2"-102"
  • Wall thickness: Sch10, Sch40, Sch80
  • Material:Alloy Steel ASTM A234 WP5 WP9, WP11, WP12, WP22, WP91
  • Standard:
    ASME B16.9
    DIN2605
    JIS B2312
  • Coating: Black Paint, Galvanized

Tee

Tee

  • Size Range: 1/2"x1/2"x1/4"-20"x20"x8"
  • Wall thickness: Sch10, Sch40, Sch80
  • Material: Alloy Steel ASTM A234 WP5 WP9, WP11, WP12, WP22, WP91
  • Standard:
    ASME B16.9
    DIN2615
    JIS B2312
  • Coating: Black Paint, Galvanized
  • Type: Equal and Reducing

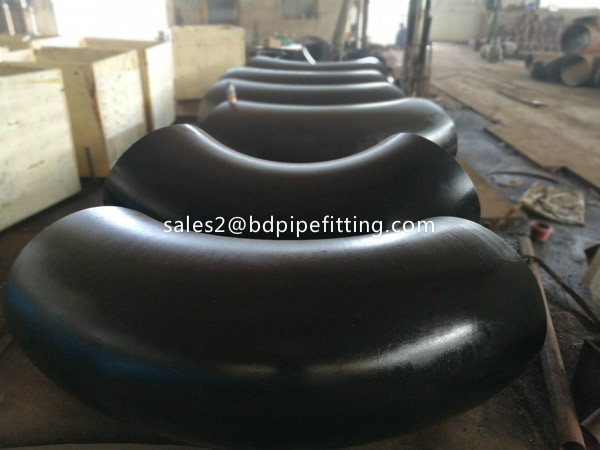

  • Alloy pipe fitting (553)
