Shijiazhuang Bang dong Pipeline Technology Co,Ltd.
Model No.: Pipe Elbow Tee Reducer Cross
Head Code: Round
Angle: 90 Degree
Wall Thickness: Sch40s
Certification: ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API
Packaging: Wooden Case or Pallet or as per buyer's requirements
Place of Origin: Cangzhou,China
Supply Ability: 1000pcs/month
HS Code: 73079900
Port: Zhengzhou Train Station,Beijing Air Port,Tianjin New Port

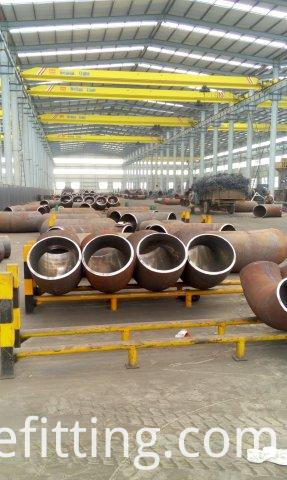

ASTM A420 WPL3 Pipe Elbow Tee Reducer Cross
Bangdong Supply ASTM A420 WPL3 Elbow,ASTM A420 WPL3 Tee,ASTM A420 WPL3 Reducer.Wide range of elbow LR & SR are manufactured according to international standards and in various grades with high precision. These can also be provided after hot dip galvanizing, epoxy coating and electro polishing as per the request of our clients. For quality evaluation purposes, we offer these elbows with mill test certificate as per EN 10204 / 3.1B.
Most elbows are available in short radius or long radius variants. When the two ends differ in size, the fitting is called a Reducing Elbow or reducer elbow.
Elbows are categorized based on various design features as below:
Long Radius (LR) Elbow is also called LR Elbow – means the radius is 1.5 times the pipe diameter
L/R 45°Elbow: Long radius 45 degree elbow changes the direction by 45 degrees.
L/R 90°Elbow: Long radius 90 degree elbow changes the direction by 90 degrees.
L/R 180°Elbow: Long Radius 180 degree return bend allows complete reversal of flow.
Short Radius (SR) Elbow is also called Sr Elbow, – means the radius is 1.0 times the pipe diameter
Short radiu 45°Elbow: Short radius 45° elbow changes the direction by 45 degrees.
Short radius 90°Elbow: Short Radius 90° elbow is same as LR90 except for the measurement between end of elbow to center line is 1 x NPS.
Short radius 180° Elbow: Short Radius 180° return bend allows complete reversal of flow
Following are the specifications of this range:
Size: 1/2"NB TO 48"NB IN
Schedule: SCH 10, SCH 20, SCH 30, SCH 40, STD, SCH 80, SCH XS, SCH 60, SCH 80, SCH 120, SCH 140, SCH 160, SCH XXS
Type: Seamless / ERW / Welded / Fabricated
Form: 15 Deg Elbow, 30Deg Elbow, 45 Deg Elbow, 90 Deg Elbow, 180 Deg Elbow, Short Radius, Long Radius, 3D, 5D, 6D, 8D, 10D & 20D
Standards and Grades
Stainless steel elbow
ASTM A403 WP Gr. 304, 304L, 304H, 309, 310, 316, 316L, 316TI, 317, 317L, 321, 347, 904L
Carbon steel elbow
ASTM A234Wpb, A234WPC, A420WPL6, Q235A, DIN St37, St45.8, St52.4, St.35.8, St.35.8, ASTM A860 WPHY 70, WPHY 65, WPHY 60, WPHY 52,WPHY 46,WPHY 42,
Low temperature carbon steel elbow
ASTM A420 WPL3 / A420WPL6
Alloy steel elbow
ASTM / ASME A/SA 234WP 12, WP11, WP22, WP5, WP9, WP91, 16MnR, Cr5Mo, 12Cr1MoV, 10CrMo910, 15CrMo, 12Cr2Mo1
Duplex steel elbow
ASTM A 815 UNS NO 31803, S 32205, S 32550, S 32750, S 32760.
Nickel alloy elbow
Looking for ideal ASTM A420 WPL3 Elbow Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the ASTM A420 WPL3 Tee are quality guaranteed. We are China Origin Factory of ASTM A420 WPL3 Reducer. If you have any question, please feel free to contact us.
