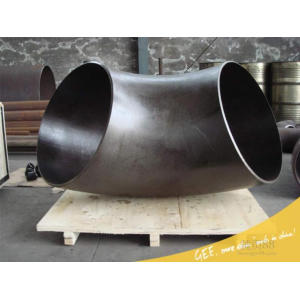

Carbon Steel Short Radius Elbow Bend Fittings

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Piece/Pieces
    Delivery Time: 20 Days

Basic Info

Model No.: Carbon Steel Pipe Fittings

Connection: Welding

Shape: Equal

Head Code: Round

Angle: 30 Degree

Wall Thickness: Sch80s

Material: Carbon Steel

Technics: Forged

Certification: ASME, ANSI, DIN, JIS, GB, API

Color: Black

Additional Info

Packaging: Wooden Case or Pallet or as per buyer's requirements

Productivity: 100pcs/month

Brand: BD

Transportation: Ocean,Land,Air,TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 100pcs/month

Certificate: API/ISO/CE

Product Description

Carbon Steel Short Radius Elbow Bend Fittings

Butt Weld Carbon Steel 180 Degree Short Radius Elbow, ASTM 90 Deg Short Radius Carbon Steel A234Wpb Seamless Elbow, Seamless steel Elbow as followed:

1. Type
Seamless elbows: Elbow(45deg, 90deg and 180deg ,long raduis and short radius)

2. Size
1/2"-36" can be seamless, 5"-110" can be welded

3. Thickness
Std, xs, xxs, sch10, sch20, sch30, sch40, sch60, sch80, sch160, etc.

4. Carbon steel: A234 WPB , st37.2, st35.8, API 5L GR B, API 5L X42, API 5L X52, API 5L X60, API 5L X65, API 5L X70 and so on.

5. Surface:
Black painting or color painting for carbon steel and alloy steel fittings

6.8" and bellow size will packed by plywood case.
10" and above size will packed by plywood pallet

7. Standard: ANSI B16.9, MSS SP 75, EN10253-2, JIS B2313

8. Our main clients are from Turkey, Italy, France, Spain, South Africa, Moroco, Dubai, Iran, Syria, Singapore, Vietnam, Austria, USA, Canada, Mexico, Korea, Thailand, India, Bulgaria, Russia and so on

9. Usage: Petroleum industry, Refinery Company, fertilizer industry, power station, shipbuilding, onshore platform


Bangdong pipeline manufacturer & exporter of ASME B 16.9 Buttweld 45° Short Radius elbow availbale in various forms and size, products like Elbows,Tee, Cross and educers etc.Buttweld fittings dimensions, dimensional tolerances are defined in the Asme B16.9 standards. Light-weight corrosion resistant fittings are made to MSS SP43.We also offer custom-made Buttweld 45° Short Radius elbow that have been widely appreciated by our clients.
ASME B 16.9 Buttweld 45° Short Radius elbow Pipe Fittings standard covers pressure-temperature ratings, materials, dimensions, tolerances,marking, testing, and methods of designating openings for fittings.

Specifications of ASME B 16.9 Buttweld 45° Short Radius elbow

bangdong
producing a wide range of Welded Fittings, Stainless Fittings, Steel Fittings, Pipe Fittings, Steel Pipe Fittings, Stainless Steel Fittings, Butt Weld Fittings, Carbon Steel Fittings, Stainless Steel Pipe Fittings, all are butt weld, including Long Radius 90 Degree Elbow, Short Radius 90 Elbow, Extra Long Radius 90 Pipe Elbow , Long Radius 45 Degree Elbow, Short Radius 45 Elbow, Extra Long Radius Elbow 45, Long Radius 180 Elbow (Pipe Bend), Short Radius 180 Pipe Elbow (180 Return Bend) , Extra Long Radius 180 Tube Elbow (180 Return Bend), Equal Tee , Reducing Tee,Cross, Reducing Cross, Eccentric Reducer, Concentric Reducer, Lap Joint Stub End and Pipe Cap in stainless steel and carbon steel material.

Product: Buttweld 45° Short Radius elbow

Sizes: 1/2" TO 102" (SEAMLESS UPTO 24") (WELDED 8" TO 102" )

Standards: ANSI - B 16.9
ASTM A403 - ASME SA403 - 'Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings'
API 590-605
ASME B16.9 - 'Factory-Made Wrought Buttwelding Fittings'
ASME B16.25 - 'Buttwelding Ends'
ASME B16.28 - 'Wrought Steel Buttwelding Short Radius Elbows and Returns'
MSS SP-43 - 'Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications'

Schedule: Sch 5 TO Sch XXS.

Thickness: Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.

Type: Buttweld (BW)
Types Of ASME B16.9 Buttwelding Fittings / Mss Sp-75 / ASME B 16.28:
Buttweld 90° Long Radius Elbow
Buttweld 90° Short Radius Elbow
Buttweld 45° Long Radius Elbow
Buttweld 45° Short Radius Elbow
Buttweld 180° Long Radius Elbow
Buttweld 180° Short Radius Elbow
Buttweld 1D Elbow
Buttweld 1.5D Elbow
Buttweld 3D Elbow
Buttweld 5D Elbow
Buttweld Seamless 45° & 90°Elbow
Seamless Buttwelding 180° Returns
Buttweld Straight Tees & Crosses
Buttweld Reducing Outlet Tees & Crosses
Buttweld Equal Tee
Buttweld Reducing Tee
Buttweld Equal Cross
Buttweld Reducing Cross
Buttweld Reducers
Buttweld Concentric Reducers
Buttweld Eccentric Reducers
Buttweld Stub End
Buttweld Lap Joint Stub Ends
Buttweld Long Stub Ends
Buttweld Short Stub Ends
Buttweld Pipe Cap
Buttweld End Cap
Buttweld Collar
Buttweld Swedge Nipple
Buttweld Pipe Nipple
Buttweld Barrel Nipple
Buttweld Reducing Nipple
Buttweld Long Radius Bend
Buttweld Piggable Bend
Buttweld Lateral

Dimensions of ASME B 16.9 Buttweld 45° Short Radius elbow

ANSI/ASME B16.9 Buttweld 45° Short Radius elbow

Nom.
Pipe
Size
Pipe
Sched.
or No.
Center-
to-end
Dimen.
Outside
Dia.
Inside
Dia.
Wall
Thick.
Approx.
Weight
(lb.)
F
OD
ID
T
STANDARD WEIGHT
1/2
40
5/8
0.840
0.622
0.109
0.1
3/4
40
7/16
1.050
0.824
0.113
0.1
1
40
7/8
1.315
1.049
0.133
0.2
1 1/4
40
1
1.660
1.380
0.140
0.4
1 1/2
40
1 1/8
1.900
1.610
0.145
0.5
2
40
1 3/8
2.375
2.067
0.154
0.9
2 1/2
40
1 3/4
2.875
2.469
0.203
1.5
3
40
2
3.500
3.068
0.216
2.5
3 1/2
40
2 1/4
4.000
3.548
0.226
3.5
4
40
2 1/2
4.500
4.026
0.237
4.8
5
40
3 1/8
5.563
5.047
0.258
7.8
6
40
3 3/4
6.625
6.065
0.280
12
8
40
5
8.625
7.981
0.322
23
10
40
6 1/4
10.750
10.020
0.365
42
12
-
7 1/2
12.750
12.000
0.375
61
14
30
8 3/4
14.000
13.250
0.375
79
16
30
10
16.000
15.250
0.375
103
18
-
11 1/4
18.000
17.250
0.375
132
20
20
12 1/2
20.000
19.250
0.375
160
22
20
13 1/2
22.000
21.250
0.375
195
24
20
15
24.000
23.250
0.375
238
EXTRA STRONG
Nom.
Pipe
Size
Pipe
Sched.
or No.
Center-
to-end
Dimen.
Outside
Dia.
Inside
Dia.
Wall
Thick.
Approx.
Weight
(lb.)
F
OD
ID
T
1/2
80
5/8
0.840
0.546
0.147
0.2
3/4
80
7/16
1.050
0.742
0.154
0.3
1
80
7/8
1.315
0.957
0.179
0.4
1 1/4
80
1
1.660
1.278
0.191
0.5
1 1/2
80
1 1/8
1.900
1.500
0.200
0.6
2
80
1 3/8
2.375
1.939
0.218
1.1
2 1/2
80
1 3/4
2.875
2.323
0.276
2.1
3
80
2
3.500
2.900
0.300
3.5
3 1/2
80
2 1/4
4.000
3.364
0.318
4.8
4
80
2 1/2
4.500
3.826
0.337
6.5
5
80
3 1/8
5.563
4.813
0.375
11
6
80
3 3/4
6.625
5.761
0.432
18
8
80
5
8.625
7.625
0.500
35
10
60
6 1/4
10.750
9.750
0.500
56
12
-
7 1/2
12.750
11.750
0.500
80
14
-
8 3/4
14.000
13.000
0.500
100
16
40
10
16.000
15.000
0.500
131
18
-
11 1/4
18.000
17.000
0.500
172
20
30
12 1/2
20.000
19.000
0.500
210
22
30
13 1/2
22.000
21.000
0.500
259
24
-
15
24.000
23.000
0.500
302



Production of ASME B 16.9 Buttweld 45° Short Radius elbow

ASME B 16.9 Buttweld 45° Short Radius elbow ASME B 16.9 Buttweld 45° Short Radius elbow production and processing of finished solution treatment must be enclosed , so that product performance is optimal. All the Raw Materials received by our company are subject to chemical and physical test and weighed immediately on receipt only thereafter they are taken in the stock.At bangdong Factory owned pneumatic marking machine, all flanges are available to customers free typing products, customers can be requested marked material, pressure , caliber, production standards or customer to provide own special text.

Applications Of ASME B 16.9 Buttweld 45° Short Radius elbow
  • ASME B 16.9 Buttweld 45° Short Radius elbow used in Chemical and petrochemical processing
  • ASME B 16.9 Buttweld 45° Short Radius elbow used in refineries
  • ASME B 16.9 Buttweld 45° Short Radius elbow used in electronics
  • ASME B 16.9 Buttweld 45° Short Radius elbow used in fertilizer
  • ASME B 16.9 Buttweld 45° Short Radius elbow used in power plant
  • ASME B 16.9 Buttweld 45° Short Radius elbow used in nuclear power
  • ASME B 16.9 Buttweld 45° Short Radius elbow used in oil and gas
  • ASME B 16.9 Buttweld 45° Short Radius elbow used in paper industries

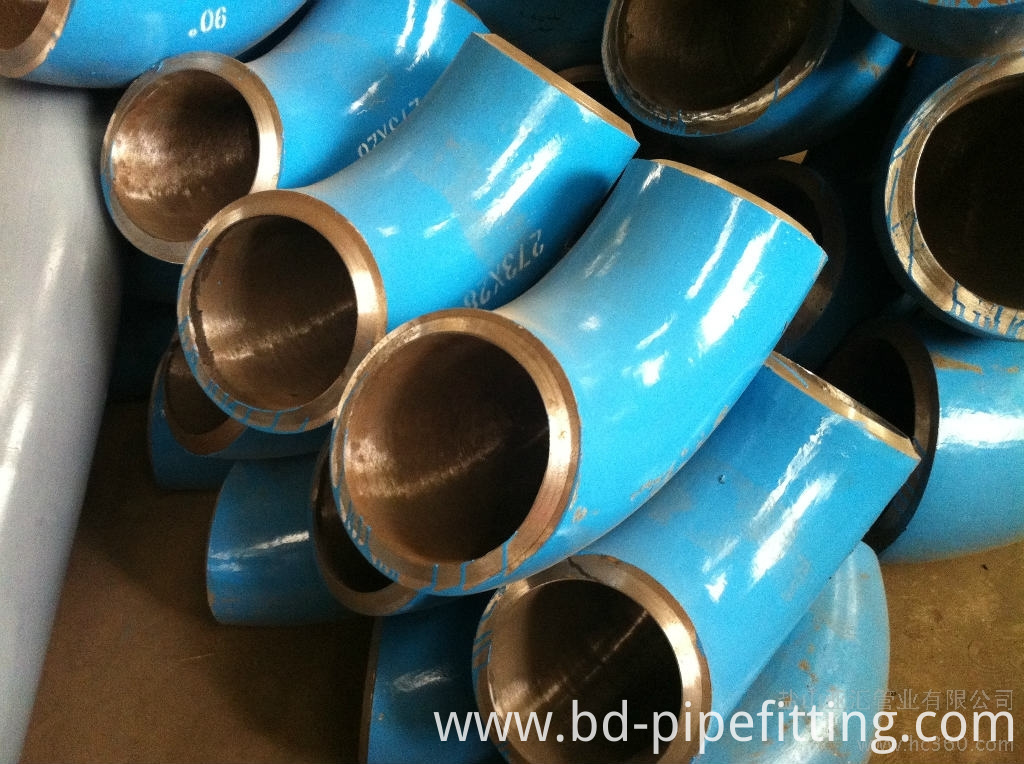

alloy steel large diameter elbows


Looking for ideal Carbon Steel Short Radius Elbow Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel A234WPB Sr Elbow Fitting are quality guaranteed. We are China Origin Factory of Steel Pipe Bend Elbow. If you have any question, please feel free to contact us.

Product Categories : Butt Weld Pipe Fitting > Pipe Elbow/Bend
