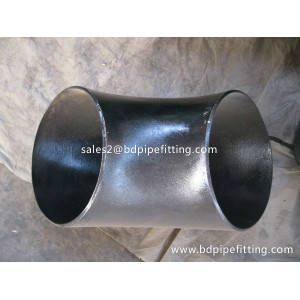

90 degree long radius elbow

Share to:
    Unit Price: USD 23.49 / Piece/Pieces
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces
    Delivery Time: 10 Days

Basic Info

Model No.: BW Elbow

Connection: Welding

Shape: Equal

Head Code: Round

Angle: 90 Degree

Wall Thickness: Sch40s

Material: Carbon Steel

Technics: Forged

Certification: ASME, ANSI

Color: Black

Additional Info

Packaging: Wooden Case Or Pallet Or as per Buyer's requirements

Productivity: 1000pcs/month

Brand: BD

Transportation: Ocean,Land,Air

Place of Origin: China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

Product Description

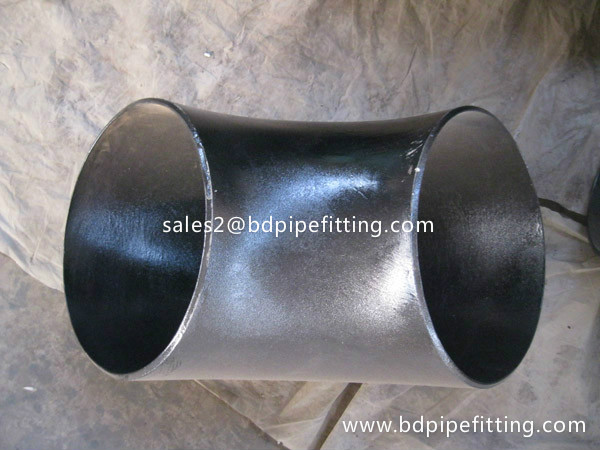

90 degreen long radius elbow

Astm A234 Carbon Steel Buttweld Pipe Fittings Manufacturer & Supplier
Our ASTM A234 Carbon Steel Butt Weld Pipe Fittings are having some awesome components like Robust development, Optimum execution, High-Grade materials, Sturdiness, Precisely plan, Durability, and so forth. Further, these ASTM A234 Carbon Steel Butt Weld Pipe Fittings are kept an eye on different parameters by our qualified quality investigators previously conveyance. Our ASTM A234 Carbon Steel Pipe Fittings are available to our profitable clients in various and modified scope of breadths, divider thicknesses and sizes at advertise driving costs.

We are Manufacturer of 90 degree Long Radius Elbow. The 90 degree Long Radius Elbow manufactured using superior grade raw materials. The 90 degree Long Radius Elbows are used for connecting pipes of different diameters and find wide applications in various chemicals, construction industries, paper, cement & ship builders.

We have adopted advanced production equipment to make our 90 degree Short Radius Elbow(1D D711.2~D1219.2), which can not only improve product quality, but also save raw materials.

Asme B16.9 Butt weld 90 degree Long Radius Elbow Dimensions

ASME B16.9 Butt weld 90 degree Short Radius Elbow Dimensions

ASME B16.9 90°Short Radius Elbow Dimensional Tolerance

NPS

O.D.
D

90 degrees
Long Radius
Center-to-End
A

45 degrees
Long Radius
Center-to-End
B

90 degrees
3D
Center-to-End
A

45 degrees
3D
Center-to-End
B

1/2

21.3

38

16

-

-

3/4

26.7

38

19

57

24

1

33.4

38

22

76

31

42.2

48

25

95

39

48.3

57

29

114

47

2

60.3

76

35

152

63

73

95

44

190

79

3

88.9

114

51

229

95

101.6

133

57

267

111

4

114.3

152

64

305

127

5

141.3

190

79

381

157

6

168.3

229

95

457

189

8

219.1

305

127

610

252

10

273

381

159

762

316

12

323.8

457

190

914

378

14

355.6

533

222

1067

441

16

406.4

610

254

1219

505

18

457

686

286

1372

568

20

508

762

318

1524

632

22

559

838

343

1676

694

24

610

914

381

1829

757

26

660

991

406

1981

821

28

711

1067

438

2134

883

30

762

1143

470

2286

964

32

813

1219

502

2438

1010

34

864

1295

533

2591

1073

36

914

1372

565

2743

1135

38

965

1448

600

2896

1200

40

1016

1524

632

3048

1264

42

1067

1600

660

3200

1326

44

1118

1676

695

3353

1389

46

1168

1753

727

3505

1453

48

1219

1829

759

3658

1516

ASME B16.9 90° Long Radius Elbow Dimensional Tolerance
DIMENSIONAL TOLERANCES - ELBOWS
For all fittings Elbows 90/45 deg 180° Returns
Nominal Pipe Size (NPS) Outside Ø
at Bevel
Inside Ø
at End
Wall Thickness
t / t1
Center to End Dim. A-B-C-M Center to Center Dim.
O
Back to Face Dim.
K
Align- ment of Ends
U
1/2 a 2 1/2 1 0,8 Not 2 7 7 1
3 a 3 1/2 1 1,6 less 2 7 7 1
4 +2 -1 1,6 than 2 7 7 1
5 a 6 +3 -1 1,6 87,50% 2 7 7 1
8 2 1,6 of nominal 2 7 7 1
10 +4 -3 3,2 thickness 2 7 7 2
12 a 18 +4 -3 3,2 3 10 7 2
20 a 24 +6 -5 4,8 3 10 7 2
26 a 30 +7 -5 4,8 3 ..... ..... .....
32 a 48 +7 -5 4,8 5 ..... ..... .....

If you require any Galvanized Steel Radius Elbows , En10253-2 Fitting , 16Mo3 Fitting welcome to call me freely.

We have good stock for A860 Wphy52 Seamless Con Ecc Reducer , A860Wphy65 Elbow , A234Wp11 Pipe Fitting

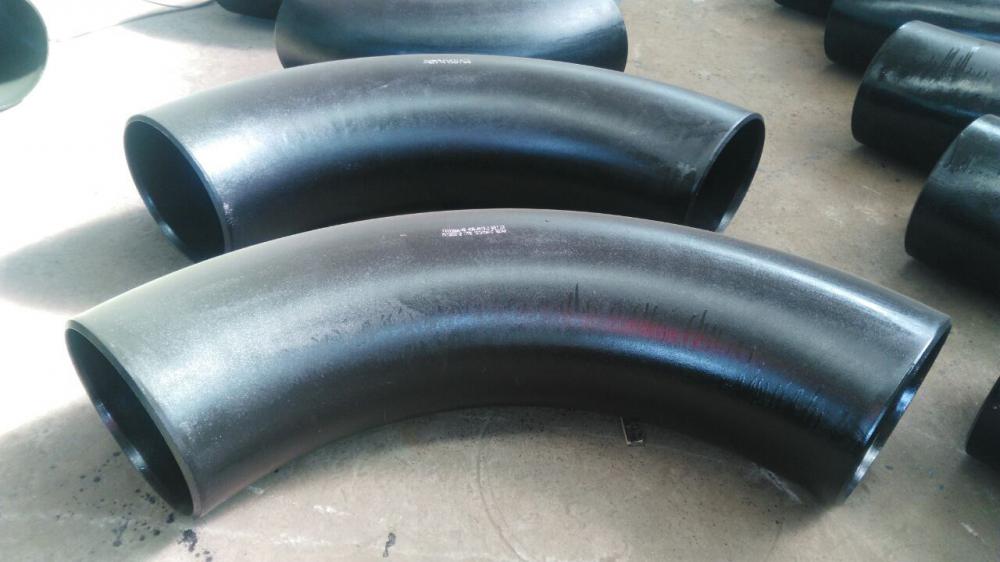

seamless elbow 5D

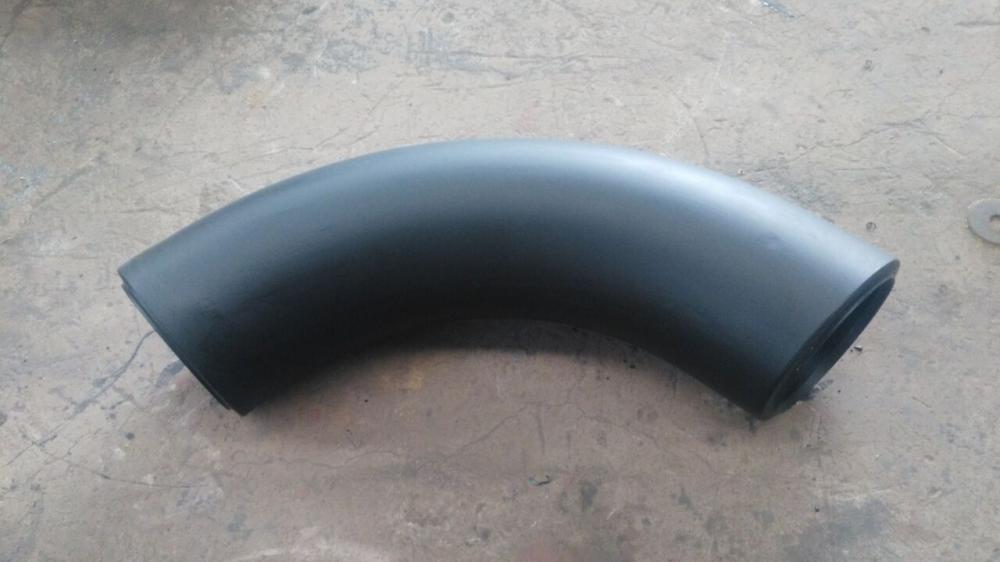

Pipe Elbow Fittings

Steel 90Deg Elbow

Looking for ideal Steel Reducing Elbow Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Radius Elbow Bends are quality guaranteed. We are China Origin Factory of Hot Induction CS Bend. If you have any question, please feel free to contact us.
