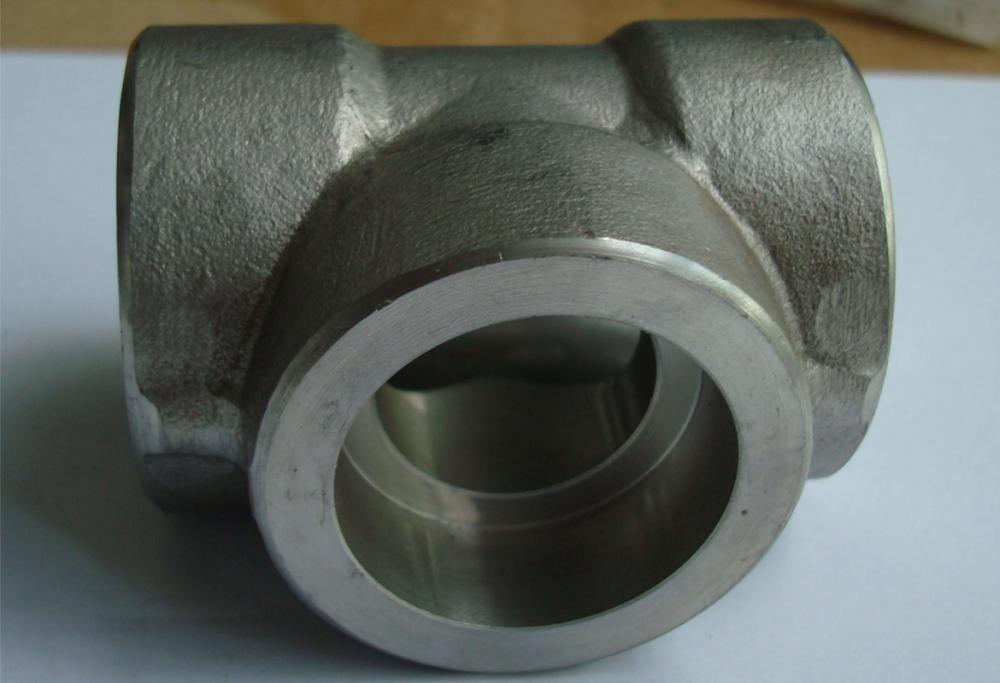

ANSI B16.11 Socket weld Tee
Bangdong Supply Alloy Steel Forged Socket Weld Tee,Carbon Steel Forged Socket Weld Tee,Super Duplex Forged Socket Weld Tee.Forged Socket Weld Tee, Forged Socket Weld Coupling, Forged Socket Weld Caps, Forged Socket Weld Cross, Forged Socket Weld Elbow, Forged Socket Weld Union .
We are famed as the most trusted Forged Pipe Fittings Supplier in China, Carbon Steel Forged Pipe Fittings, Stainless Steel Forged Pipe Fittings, Stainless Steel Forged Fittings, Forged Steel Fittings Suppliers, Industrial Pipe Fittings Manufacturers, Carbon Steel Forged Fittings, Forged Steel Pipe Suppliers The material used in the manufacturing of the Carbon Steel Forged Pipe Fittings are of optimum quality that ensures notable features like high durability, strength and resistivity to abrasion and corrosion. Additionally, customers are eased with the availability of the Stainless Steel Forged Pipe Fittings as per the specifications and drawings provided by the clients.
We hold expertise to manufacture and export an extensive range of Forged Pipe Fitting, which is widely appreciated by our world wide clientele.
FORGED STEEL FITTING SHAPES/TYPES
Forged steel fittings are manufactured in a number of shapes:
TEES
Tees are a forged steel fitting used to combine or divide process flow, and Reducing Tees additionally allow for pipe size change. The run outlets of the tee are the two in-line outlets, and the branch is the third outlet. The branch outlet is the reducing outlet in a Reducing Tee.
ELBOWS
A Pipe Elbow is a forged steel itting installed between two lengths of pipe or tube allowing a change of direction, usually in the 90° or 45° direction. Similar to a reducing tee, reducing elbows also exist to simultaneously change flow direction and reduce flow diameter. Street Elbows have one female end to accept pipe and another male end thread that is the same size as the pipe and can avoid the use of a Pipe Nipple during installation.
COUPLINGS
Couplings are a forged steel fitting used to connect two lengths of pipe, and Half-coupling is screwed onto the pipe, while the other end is made to be tightly inserted, or welded, onto the other end to pipe or vessel.
Standard Couplings have female threads or open sockets at both ends, whereas reducing couplings connect smaller pipes to larger ones.
UNIONS
Unions are a forged steel fitting similar to a coupling but allow a convenient disconnection and connection; it has 3 parts: a nut, a female end, and a male end. They allow two lengths of pipe to be assembled and detached without causing any deformation to the pipes.
BUSHINGS
Reducing inserts and Bushings are forged steel fittings that allow for a change in pipe size. Pictured here is the hex head bushing, which is most commonly used.
CAPS
Caps are forged steel fittings used to terminate the flow, inserting over the end of the pipe
PLUG
Similar to a cap, plugs are forged steel fittings that are inserted into the end of the pipe, and they come with different head types, including: hex, square, and round.
CROSS
Crosses are a 4-way forged steel fitting, with 1 inlet and 3 outlets or vice versa. These are sometimes referred to as 4-way tees.
END CONNECTION
Forged Steel fittings are available in threaded and socket weld end connections.
The dimensions for Socket Weld forged steel fitting conform to ASME B16.11 and threaded forged steel fittings conform to ASME (American Society of Mechanical Engineers) B1.20.1.
Forged Socket Weld Teeavailable in below standard and materials:
Standards – ANSI / ASME B16.11, MSS SP-79, 83, 95, 97, BS 3799
Type – Socket weld
Size : 1/2″NB TO 4″NB IN
Class: - 3000#, 6000#, 9000#
Material: Stainless Steel, Duplex, Super Duplex, Nickel Alloys, Alloy Steel, Carbon Steel, Low temperature Steel
Material Grade :
Stainless Steel Forged Socket Weld Tee: ASTM A182 304, 304L, 306, 316L, 304H, 309S, 309H, 310S, 310H, 316TI, 316H, 316LN, 317, 317L, 321, 321H, F11, F22, F91, F347, F347H, F904L, ASTM A312 / A403
Duplex & Super Duplex Steel Forged Socket Weld Tee: ASTM A182, F51 / F52 / F53 / F54 / F55 / F57 / F59 / F60 / F61.
Carbon Steel Forged Socket Weld Tee: ASTM A105, A350 LF2, A106 Gr.B, A234 WPB
Alloy Steel Forged Socket Weld Tee: ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91.
