Shijiazhuang Bang dong Pipeline Technology Co,Ltd.

Seamless Pipe BW Cross,Galvanized Steel Pipe Cross Fitting,Stainless Steel Pipe Cross

Home > Products > Butt Weld Pipe Fitting > Pipe Cross > Zinc Plated Carbon Steel Pipe Cross

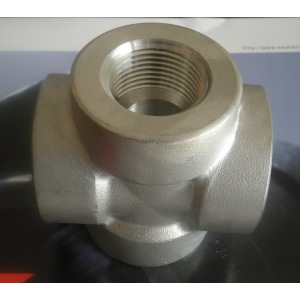

Zinc Plated Carbon Steel Pipe Cross

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Piece/Pieces
    Delivery Time: 13 Days

Basic Info

Model No.: Carbon Steel Pipe Cross

Connection: Welding

Type: Equal

Technics: Forged

Material: Stainless Steel

Certification: ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API

Color: Black

Additional Info

Packaging: Wooden Case or as per buyer's requirements

Productivity: 1000pcs/month

Brand: Bangdong

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

HS Code: 73079300

Port: Tianjin New Port,Beijing Air Port,Zhengzhou Train Station

Product Description

Zinc Plated Carbon Steel Pipe Cross


Galvanized Steel Pipe Cross. Our butt weld Pipe Cross are produced from pipe or from split tees, in stock for immediate delivery.

Seamless Pipe Cross fittings are the specialty of China Fittings. We manufacture to your specifications in stainless steel, carbon steel or aluminum. All of our

Seamless Pipe Cross are Made In The China.

Materials:

Carbon Steel: A 106 Grade B Seamless, P-9, P-11 and P-22, 2205 Duplex
Aluminum: S-40, 6061-T6
Stainless Steel: 304/L, 316/L, 317/L, A 312 Welded or Seamless Pipe. Other alloys are available upon request.
Schedules:

Carbon Steel: All Schedules
Stainless Steel: Schedules 5 thru 160
End Prep:

Beveled Ends
Squared Ends
Flanged Ends
Cut Grooves
Victaulic Grooves
Threaded Ends (Male & Female)
Radiographic Inspection available upon request to meet ASME specs.

Butt Welded Pipe Cross Production Range

Outside Diameter: Seamless Cross Fitting ( 1/2″~24″), ERW / Welded / Fabricated Cross Fitting (1/2″~48″)

Type: Seamless, Welded, Equal Cross, Reducing Cross

Wall Thickness: 3mm – 40mm / SCH5, SCH10, SCH20, SCH30, SCH40, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS

Value Added Services: Hot Dipped Galvanizing, Epoxy & FBE Coating, Electro Polish, Sand Blasting, Threading, Soldering

Production Grades: Stainless Steel, Alloy Steel, Duplex, Nickel Alloys, Low temperature Steel, Carbon Steel, Cupro Nickel

Manufacturing Standards

ASME: ANSI B16.9, ANSI B16.28, MSS-SP-43

DIN: DIN2605, DIN2615, DIN2616, DIN2617, DIN28011

EN: EN10253-1, EN10253-2

ASTM A403 – ASME SA403 – Standard Specification for Wrought Austenitic Stainless Steel Piping Fittings

Asme B16.9 – Factory-Made Wrought Fittings Buttwelding

ASME B16.25 – Buttwelding Ends ASME B16.28 – Wrought Steel Short Radius Elbows and Buttwelding Returns

MSS SP-43 – Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications

Pipe Cross Material Grades

Stainless Steel Pipe Cross; ASTM A403 WP Gr. 304, 304H, 309, 310, 316, 316L, 317L, 321, 347, 904L

Carbon Steel Pipe Cross: ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.

Low Temperature Carbon Steel Pipe Cross: ASTM A420 WPL3, A420 WPL6

Alloy Steel Pipe Cross: ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91





Butt Weld Cross
Reducing Butt Weld Cross
Manufactured from split tees.
Manufactured from pipe.

Stainless Steel Pipe cross

Reducing crosses available upon request.Per ASME B16.9 dimensions

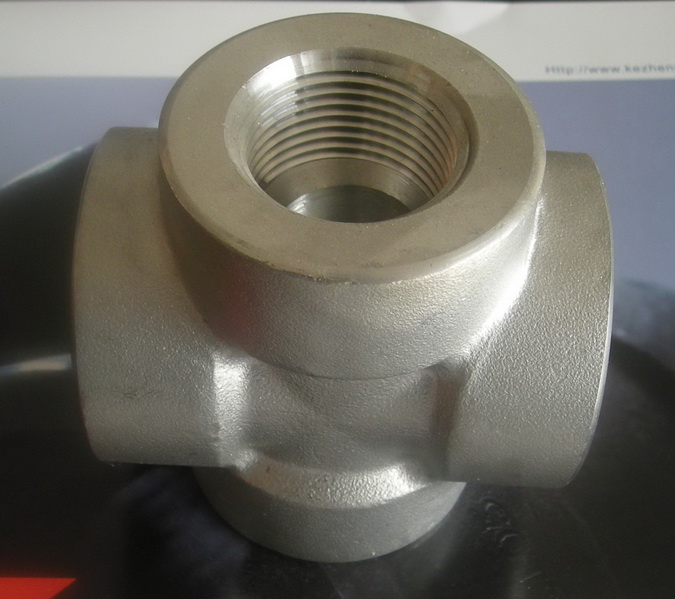

Stainless Steel Weld Fittings

Looking for ideal Seamless Pipe BW Cross Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Galvanized Steel Pipe Cross Fitting are quality guaranteed. We are China Origin Factory of Stainless Steel Pipe Cross. If you have any question, please feel free to contact us.
