ANSI B16.9 Steel Concentric Reducer

ANSI B16.9 Steel Concentric Reducer

Bangdong Supply Steel Concentric Reducer,ANSI B16.9 Reducer,Ss316 Pipe Concentric Reducer.The material used in the manufacturing of the Carbon Steel Forged Pipe Fittings are of optimum quality that ensures notable features like high durability, strength and resistivity to abrasion and corrosion. Additionally, customers are eased with the availability of the Stainless Steel Forged Pipe Fittings as per the specifications provided by the clients.

ASME / ANSI B16.9 Alloy Steel Reducer, Carbon Steel Concentric Reducer, Eccentric Reducer Manufacturer & Exporter

Bangdong Pipeline is a leading manufacturer and exporter of Concentric and Eccentric Butt weld Pipe Fittings that are being designed as per the national and international standard quality of raw materials and thus making sure of their durability and high quality. The main purpose of Concentric Reducer Butt Weld Pipe Fittings is to lessen down the curvature from a higher to lesser size of pipe, which in fact outcomes in a greater than before flow pressure. The lengths of Eccentric Reducer Butt Weld Pipe Fittings are in actual fact being set by the manufacturing standards.

Butt Weld Concentric and Butt Weld Eccentric comes in different form such as such as Stainless Steel, Carbon Steel, Alloy Steel, Duplex & Super Duplex, Nickel Alloy, and Copper Alloy Steel, in different sizes and grades respectively. These Pipe Fittings can further be customized in terms of thicknesses, sizes and specifications as per the specific requirements of our clients.

ASME / ANSI B16.9 Concentric & Eccentric Reducer Specification :

 Concentric Reducer: A concentric Reducer is also called welded concentric coupling. It allows from connecting a large pipe to a smaller pipe by means of welding. A concentric reducer allows welded connection between two pipes with the same center line.

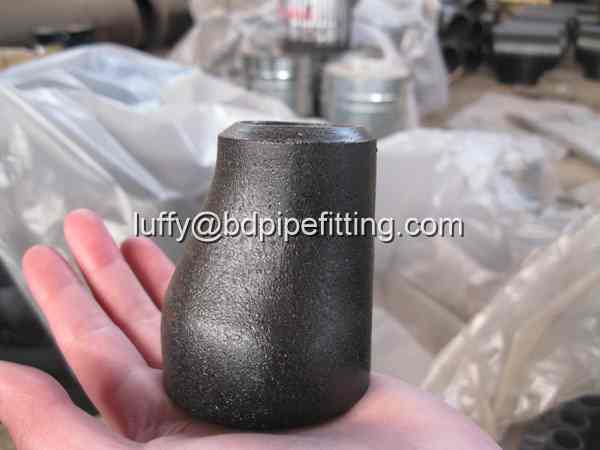

Eccentric Reducer: An eccentric reducer is also called welded eccentric coupling. It allows for welding a large pipe to a smaller pipe with an offset center line. The offset of the center line in an eccentric reducer is; Offset = 1/2 x (Largest ID - Smallest ID)

Standards : ASME / ANSI - B 16.9, ASTM A403 - ASME SA403, Asme B16.9, ASME B16.25, ASME B16.28, MSS SP-43.
Size : Seamless Reducer ( 1/2"~24"), ERW / Welded / Fabricated Reducer (1/2"~86")
Thickness : Schedule 5S, 10S, 20S, S10, S20, S30, STD, 40S, S40, S60, XS, 80S, S80, S100, S120, S140, S160, XXS and etc.
Type : Seamless / ERW / Welded / Fabricated
Form : Concentric Reducers, Eccentric Reducers

ASME / ANSI B16.9 Concentric & Eccentric Reducer Material & Grades :

Stainless Steel Concentric & Eccentric Reducer :
ASTM A403 WP316/316L, ASTM A403 SA / A 774 WP-S, WP-W, WP-WX 304/304L, ASTM A182 F316L, 304L, DIN 1.4301, DIN1.4306, DIN 1.4401, DIN 1.4404
Duplex & Super Duplex Steel Concentric & Eccentric Reducer :
ASTM A 815, ASME SA 815 UNS NO S31803, S32205. UNS S32750, S32950. Werkstoff No. 1.4462
Carbon Steel Concentric & Eccentric Reducer :
ASTM A 234 WPB , WPBW, WPHY 42, WPHY 46, WPHY 52, WPH 60, WPHY 65 & WPHY 70.
Alloy Steel Concentric & Eccentric Reducer :
ASTM / ASME A/SA 234 Gr. WP 1, WP 5, WP 9, WP 11, WP 12, WP 22, WP 91
Nickel Alloy Concentric & Eccentric Reducer :
ASTM / ASME SB 336 UNS 2200 ( NICKEL 200 ), UNS 2201 (NICKEL 201 ), UNS 4400 (MONEL 400 ), UNS 8020 ( ALLOY 20 / 20 CB 3, UNS 8825 INCONEL (825), UNS 6600 (INCONEL 600 ), UNS 6601 ( INCONEL 601 ), UNS 6625 (INCONEL 625), UNS 10276 ( HASTELLOY C 276 )

Our stainless steel and carbon steel ANSI Forged Fittings are available in 2000#, 3000#, 6000#, and 9000# pressure ratings and in either socket weld as or threaded ends. Further steel forged fittings includes a complete range of products such as 90º Elbows, 45º Elbows, Tees, Crosses, Couplings, Reducers, Inserts, Caps, Nipples, and Unions. Forged socket weld fittings are available in class 3000, 6000 and 9000. Forged Threaded Fittings are available in class 2000, 3000 and 6000.Forged Pipe Fittings – Socket Weld &Threaded, Equal Tees & Reducing Tees, 90° & 45° Elbows – Female-Female, Male-Female, Male-Male, Union, Nipples, Couplings, Plugs.

Forged Stainless Steel Fittings (Threaded and Socket Weld)

Stainless Steel ASTM A182 F304, F304L, F306, F316L, F304H, F309S, F309H, F310S, F310H, F316TI, F316H, F316LN, F317, F317L, F321, F321H, F11, F22, F91, F347, F347H, F904L, ASTM A312/A403 TP304, TP304L, TP316, TP316L

The material for forged stainless steel fittings conforms to ASME A182
The dimensions for forged stainless steel fittings conform to ASME B16.11
NPT Threads conform to ASME B1.20.1
Forged Carbon Steel Fittings (Threaded and Socket Weld)

Carbon Steel ASTM A105, A350 LF2, A106 Gr.B, A234 WPB

The material for forged carbon steel fittings conforms to the requirements of ASTM/ASME A105/SA105
The dimensions for forged carbon steel fittings conform to ASME B16.11
NPT Threads conform to ASME B1.20.1

Product Categories : Butt Weld Pipe Fitting > Pipe Con/Ecc Reducer
