ASME B16.5 Flanged Fitting

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces
    Delivery Time: 15 Days

Basic Info

Model No.: BD-L Flanged Fittings

Connection: Welding

Shape: Equal

Head Code: Round

Angle: 90 Degree

Wall Thickness: Sch80s

Material: Carbon Steel

Technics: Forged

Certification: ASME, ANSI, DIN, JIS, BS, GB, GS, KS, API

Color: Black

Additional Info

Packaging: Wooden Cases or as per buyer's requirements

Productivity: 1000pcs/month

Brand: Bangdong

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

HS Code: 73079300

Port: Beijing Air Port,Tianjin Train Station,Tianjin New Port

Product Description

Bangdong is great manufacturer of Flanged Tee & other flanged pipe fittings . If you in need of steel flanged Pipe Elbow , flanged tee , flanged reducer , flanged cap , flange ended butt weld etc , please kindly contact us freely , will do our best to offer the best qulity products to you .

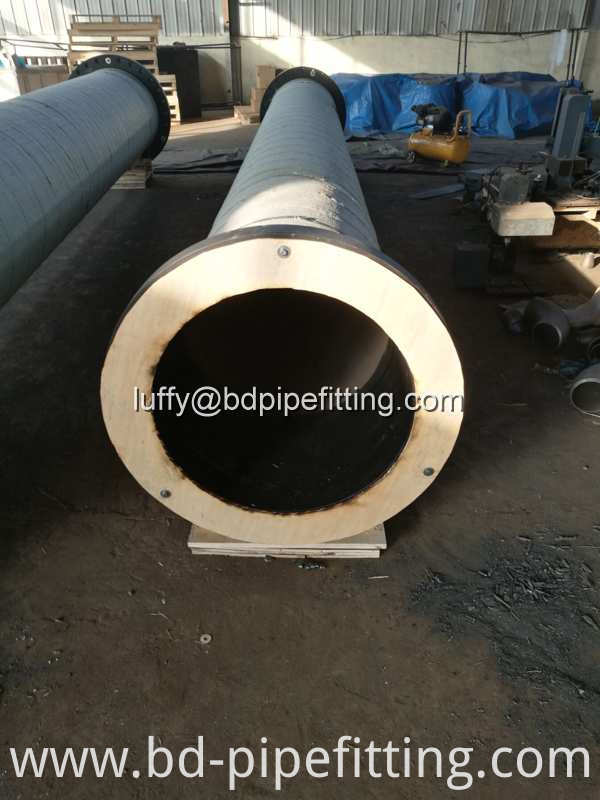

flanged pipe

BUTTWELD FITTING BRANCH FITTINGS BRANCH CONNECTIONS

STRAIGHT CROSS

A straight cross has the same branch size as the pipe. These are used for making 90 degree branching from the main run of pipe.

STRAIGHT TEE

A straight tee has the same branch size as the pipe. These are used for making 90 degree branching from the main run of pipe.

Reducing Cross

Reducing crosses have two 90 degree branches from the main run of pipe. The branch is smaller than the main run.

Reducing Tee

Reducing tees have a single 90 degree branch from the main run of pipe. The branch is smaller than the main run.

REINFORCING SADDLE

These saddles are split in two pieces that fully encircle the branch connection. They come in two types. One slides over the branch and the other fits around the branch. The saddle is split along the length of the pipe. Reinforcing saddles come both in full and reducing branches.

SADDLE

A saddle or tapping saddle is used when you do not want to shut down a pipeline, but want to add a branch. This allows a branch to be added for hot tapping an existing system. Saddles come in both full and reducing branches.

SPLIT TEE

Vertical Split Tee

BUTTWELD FITTING CAPS

DISHED HEAD CAP

These have a straight tangent with a rounded head.

FLAT CLOSURE CAP

These are flat plates normally cut for pipe at the site.

BUTTWELD FITTING ELBOWS

45 ELBOW LONG RADIUS

A 45 degree elbow "long radius" has a centerline curvature equal to 1-1/2 times the nominal pipe size (NPS) for 3/4 inch and larger sizes.

45 ELBOW LONG RADIUS LONG TANGENT

A 45 degree elbow "long radius, long tangent" is a long radius with the centerline curvature equal to 1-1/2 times the nominal pipe size (NPS) and a straight extension at both ends (long tangent) for 2 inch and larger sizes. Tangent elbows provide a straight length at the end to accept a Slip-on Flange. The tangent end for the flange is not beveled.

45 ELBOW THREE RADIUS

A 45 degree elbow "three radius" is a long radius elbow with the centerline curvature equal to 3 times the nominal pipe size (NPS).

90 ELBOW LONG RADIUS

A 90 degree elbow "long radius" has a centerline curvature equal to 1-1/2 times the nominal pipe size (NPS) for 3/4 inch and larger sizes.

90 ELBOW LONG RADIUS LONG TANGENT

A 90 degree elbow "long radius, long tangent" is a long radius with the centerline curvature equal to 1-1/2 times the nominal pipe size (NPS) and a straight extension at both ends (long tangent) for 2 inch and larger sizes. Tangent elbows provide a straight length at the end to accept a Slip-on Flange. The tangent end for the flange is not beveled.

90 ELBOW SHORT RADIUS

A 90 degree elbow "short radius" has a centerline curvature equal to 1 times the nominal pipe size (NPS) for 1 inch and larger sizes.

90 ELBOW SHORT RADIUS LONG TANGENT

A 90 degree elbow "short radius, long tangent" is a short radius with the centerline curvature equal to 1 times the nominal pipe size (NPS) and a straight extension at both ends (long tangent) for 8 inch and larger sizes. Tangent elbows provide a straight length at the end to accept a Slip-on Flange. The tangent end for the flange is not beveled.

90 ELBOW THREE RADIUS

A 90 degree elbow "three radius" is a long radius with the centerline curvature equal to 3 times the nominal pipe size (NPS).

180 RETURN LONG RADIUS

A 180 degree return "long radius" has a centerline curvature equal to 1-1/2 times the nominal pipe size (NPS) for 3/4 inch and larger sizes.

180 RETURN SHORT RADIUS

A 180 degree return "short radius" has a centerline curvature equal to 1 times the nominal pipe size (NPS) for 1 inch and larger sizes.

MITERED ELBOW

A mitered elbow is fabricated from pipe and is not a fitting. A miter is used for larger pipes, where pressure drop is not important and cost is a factor. A 2 piece 90 degree miter has 4 to 6 times hydraulic resistance of the corresponding long radius elbow. A 3 piece, 90 degree miter has about double the resistance. The normal number of miter pieces used are 3, 4, or 5.

BEND

A bend is made from a straight piece of pipe. The most common bends are 3 or 5 times the nominal pipe size (NPS) radius.

BUTTWELD FITTING REDUCERS

Concentric Reducer

The concentric reducer centerline of the inlet and outlet is at the same level.

Eccentric Reducer

The eccentric reducer (abbreviated as offset is equals 1/2 times the larger ID minus the smaller ID. The eccentric reducer is used to keep either the top or bottom of the pipe level. It is used with the flat side up (flat on top FOT) or flat side down (flat on bottom FOB). In wet gas such as casing gas applications, an eccentric reducer should be used that is flat on bottom to prevent condensing liquids from pocketing. It is common practice to install eccentric reducers on a liquid line that might have a little gas in it with the flat side of the reducer is put on the top. That ensures that any bubbles that come along the top pass immediately through the pump and not accumulate. If they accumulate, they may collect and enter the pump in bulk causing it to intermittently cavitate.

Swage - concentric (CONC SWG), eccentric (ECC SWG) . A swage is used to connect buttwelded and screwed fittings/pipe to smaller or larger buttweld or screwed fittings/pipe.

  • Concentric swage - centerline of the inlet and outlet is at the same level.

  • Eccentric swage - is offset either on the top or bottom of the line level.

Butt Weld Flanged Concentric Reducer

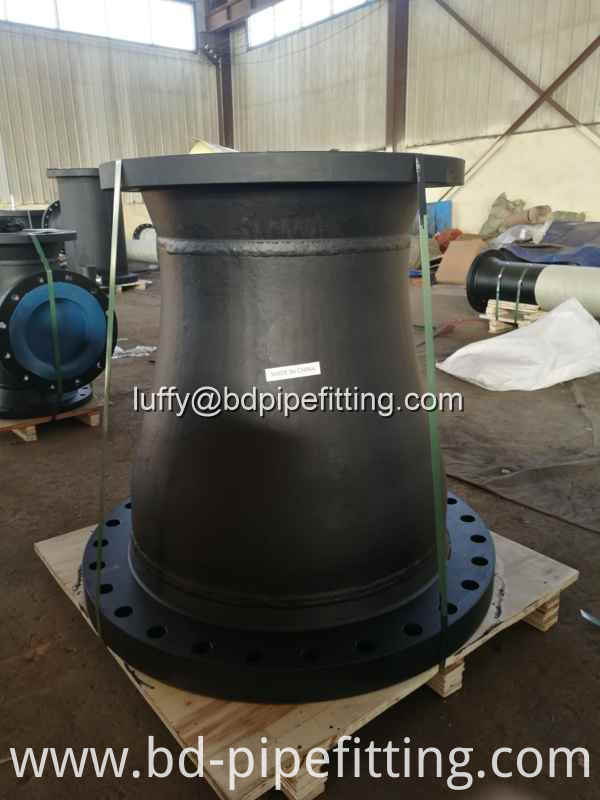

flanged bw pipe fitting (84)


Flanged Elbow

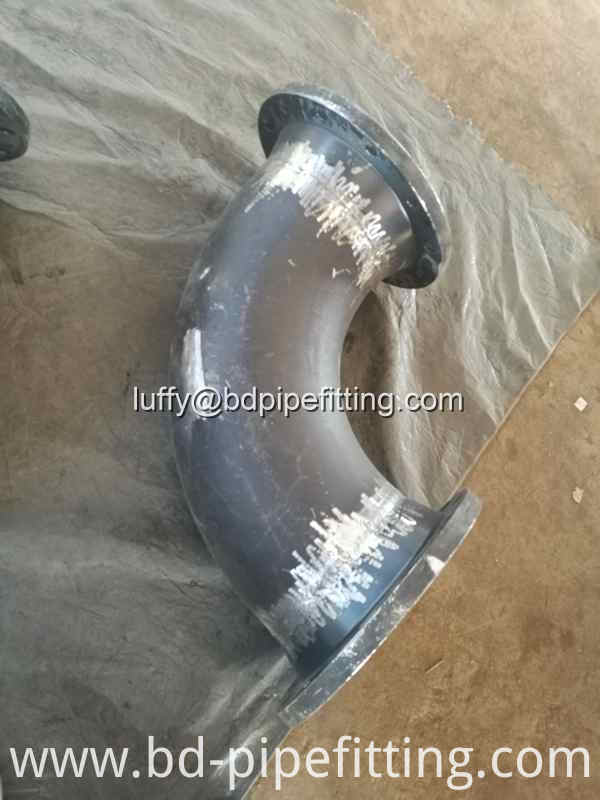

flanged bw pipe fitting (51)


Flanged Equal Tee

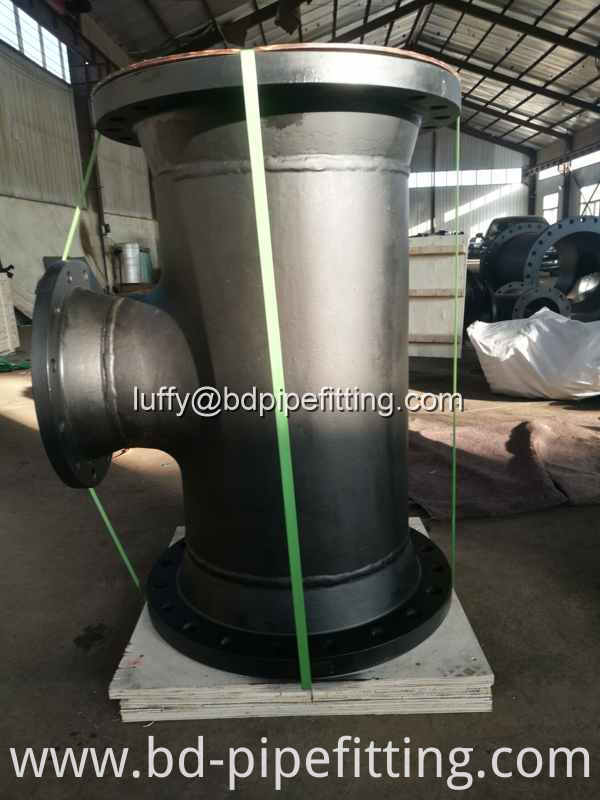

Flanged Bw Pipe Fitting 29

Flanged Pipe

flanged bw pipe fitting (80)


Should any inquiry related to flanged pipe fittings , please contact freely . We could do fittings with SO Flange , Butt Weld Pipe Fitting with WN flanges , Butt Weld Pipe Fittings with PL flange etc.


Looking for ideal B16.9 Pipe Fitting with Flange Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Flange End B16.9 Pipe Fitting are quality guaranteed. We are China Origin Factory of B16.5 Flanged Butt Weld Pipe Fitting. If you have any question, please feel free to contact us.
