Alloy Steel Forged Sockolet

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces
    Delivery Time: 15 Days

Basic Info

Model No.: Forged Sockolet

Connection: Welding

Material: Alloy

Size: 1/2"~24"

Class: 3000 LBS, 6000 LBS, 9000 LBS

Standard: B16.11

Additional Info

Packaging: Wooden Cases or as per buyer's requirements

Productivity: 1000pcs/month

Brand: Bangdong

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

HS Code: 73079300

Port: Tianjin New Port,Beijing Air Port,Zhengzhou Train Station

Product Description

Alloy Steel Forged Sockolet

Standard size of Thread Pipe Fitting ,professional supplier of Weld Threaded Socket Fittings ,good choice of Thread Steel Fitting

SOCKOLET

Our forged steel outlet fittings Sockolets (3000) is developed using different grade and material. The ideal run pipe sizes for sockolets 3000 is out let to 36". The inside bore, thread, socket bore and socket depth of sockolets 3000 is designed as per ANSI B16.11 but the pipe schedule numbers & weight designation is as per ANSI B36.10. We provide customization on our range as per the specification of clients.

Specifications

Outlet`s : 1/2" to 24" in 3000 LBS, 6000 LBS, 9000 LBS available with NACE MR 01-75.

Stainless Steel Sockolet
Standard : ASTM / ASME A/SA 182
Grade : F 304, 304L, 304H, 309S, 309H, 310S, 310H, 316, 316TI, 316H, 316L, 316LN, 317, 317L, 321, 321H, 347, 347H, 904L.



Carbon Steel Sockolet
Standard : ASTM A105/A694/ A350 LF3/A350 LF2.
Grade : F42/46/52/56/60/65/70

Alloy Steel Sockolet
Standard : ASTM A182
Grade : F1/F5/F9/F11/F22/F91


Dimensions

Dimensions reducing and size on size Sockolets® acc to MSS-SP97

REDUCING SIZES

NPS Pressure Class 3000 - NPS 1/2 up to NPS 6
A B C D E
1/2
INCH
MM
1
25.40
1-13/32
35.71
29/32
23.01
0.622
15.80
9/16
14.28
3/4
INCH
MM
1-1/16
26.98
1-23/32
43.65
1-5/32
29.36
0.824
20.93
9/16
14.28
1
INCH
MM
1-5/16
33.33
2
50.8
1-7/16
36.51
1.049
26.64
25/32
19.84
1 ¼
INCH
MM
1-5/16
33.33
2-9/16
65.08
1-3/4
44.45
1.380
35.05
3/4
19.05
1 ½
INCH
MM
1-3/8
34.92
2-27/32
72.23
2
50.8
1.610
40.89
3/4
19.05
2
INCH
MM
1-1/2
38.1
3-15/32
88.10
2-9/16
65.08
2.067
52.50
13/16
20.63
2 ½
INCH
MM
1-9/16
39.68
4-1/16
103.18
3
76.2
2.469
62.71
3/4
19.05
3
INCH
MM
1-3/4
44.45
4-13/16
122.23
3-11/16
93.66
3.068
77.93
15/16
23.81
3 ½
INCH
MM
1-11/16
42.86
5-3/8
136.52
4-7/16
112.71
3.548
90.12
11/16
17.46
4
INCH
MM
1-7/8
47.62
5-31/32
151.60
4-3/4
120.65
4.026
102.26
1-1/16
26.98
5
INCH
MM
2-5/8
66.67
7-5/16
185.73
5-9/16
141.28
5.047
128.19
1-11/32
34.13
6
INCH
MM
2-3/4
69.85
8-5/8
219.07
6-11/16
169.86
6.065
154.05
1-13/32
35.71


REDUCING SIZES

NPS Pressure Class 6000 - NPS 1/2 up to NPS 2
A B C D E
1/2
INCH
MM
1-1/4
31.75
1-23/32
43.65
3/4
19.05
0.466
11.84
7/8
22.22
3/4
INCH
MM
1-7/16
36.51
1-61/64
49.60
1
25.4
0.614
15.60
7/8
22.22
1
INCH
MM
1-9/16
39.68
2-7/16
61.91
1-5/16
33.33
0.815
20.70
15/16
23.81
1 ¼
INCH
MM
1-5/8
41.27
2-23/32
69.05
1-1/2
38.1
1.160
29.46
13/16
20.63
1 ½
INCH
MM
1-11/16
42.86
3-1/4
82.55
1-15/16
49.21
1.338
33.99
7/8
22.22
2
INCH
MM
2-1/16
52.38
4-1/32
102.39
2-3/4
69.85
1.689
42.90
1-3/16
30.16



SIZE ON SIZE

NPS Pressure Class 3000 - NPS 1/2 up to NPS 6
A B C D E
1/2
INCH
MM
1
25.4
1-3/8
34.92
15/16
23.81
0.622
15.80
17/32
13.49
3/4
INCH
MM
1-1/16
26.98
1-5/8
41.27
1-3/16
30.16
0.824
20.93
15/32
11.90
1
INCH
MM
1-5/16
33.33
2
50.8
1-7/16
36.51
1.049
26.64
23/32
18.25
1 ¼
INCH
MM
1-5/16
33.33
2-3/8
60.32
1-3/4
44.45
1.380
35.05
9/16
14.28
1 ½
INCH
MM
1-3/8
34.92
2-7/8
73.02
2
50.8
1.610
40.89
21/32
16.66
2
INCH
MM
1-1/2
38.1
3-1/2
88.9
2-9/16
65.08
2.067
52.50
15/16
23.81
2 ½
INCH
MM
1-9/16
39.68
4-1/16
103.18
3
76.2
2.469
62.71
3/4
19.05
3
INCH
MM
1-3/4
44.45
4-13/16
122.23
3-11/16
93.66
3.068
77.93
15/16
23.81
3 ½
INCH
MM
1-11/16
42.86
5-3/8
136.52
4-7/16
112.71
3.548
90.12
11/16
17.46
4
INCH
MM
1-7/8
47.62
6-1/16
153.98
4-3/4
120.65
4.026
102.26
1-1/16
26.98
5
INCH
MM
2-7/16
61.91
7-1/4
184.15
5-1/4
133.35
5.047
128.19
1
25.4
6
INCH
MM
2-11/16
68.26
8-11/16
220.66
6-1/16
153.98
6.065
154.05
1-3/16
30.16



Bangdong Supply Alloy Steel Forged Thredolet,Alloy Steel Forged Brazolet,Steel Welding Boss.Forged Weldolet,Our production range includes Olet Pipe Fittings such as weldolet, sockolet, Threadolet , laterolet, elbolet, nipolets and sweepolets. We can also manufacture and supply forged Flanged Outlet fitting in Class 150 to Class 2500 flange ratings. Lateral and elbow olets can be supplied in butt-weld, socket-weld, and threaded end connections. Weld pipe Olet or Weldolet is one of the most commonly used branch connection fitting. It is widely considered a buttweld fitting, as it is welded onto the outlet of the pipe. A welding outlet helps in minimizing the stress concentrations and provides integral reinforcement without the need for reinforcing the weld.


Carbon Steel Pipe Welding Outlet Key Specifications / Features

Type: Pipe Welding Outlet / Pipe Olet/Weldolet Threadolet Socket Fittings
Manufacturing standards: ANSI/ASME B16.11/MSS-SP-79/MSS-SP-83/MSS-SP-95/MSS-SP-97
Size range: 1/8 to 4 inches (DN6-DN100)
Pressure: 2,000, 3,000, 6,000, 9,000lbs (Sch40, Sch80/Xs Sch160 Xxs)
Materials: carbon steel, stainless steel
Applications industries: petroleum, electric power, chemical industry, light industry, metallurgy, the shipping, urban construction and other professions

Type: Pipe Weldolet / Pipe Olet
Manufacturing standards: ANSI/ASME B16.11/MSS-SP-79/MSS-SP-83/MSS-SP-95/MSS-SP-97/ Msssp75 Olet
Size range: 1/8 to 4 inches (DN6-DN100)
Pressure: 2,000, 3,000, 6,000, 9,000lbs (Sch40, Sch80/Xs Sch160 Xxs)
Materials: carbon steel, stainless steel
Applications industries: petroleum, electric power, chemical industry, light industry, metallurgy, the shipping, urban construction and other professions

ASTM A105 Weldolet Specification
Variations:

3000# & 6000#
But-weld : SCH10S – SCH40S – SCH80S – SCH160 – SCHXXS
Standards:
ASTM B564 – ASME SB564 – `Standard Specification for Nickel Alloy Forgings`
ASME B16.11 – `Forged Fittings Socket – Welding and Threaded`
MSS SP-97 – `Integrally Reinforced Forged Branch Outlet Fittings – Socket Welding, Threaded and Buttwelding Ends`
Size : 1/8″ NB to 4″ NB. (Socket weld & Threaded)
Class : 150, 3000, 6000, 9000
Dimensions:
Outlet : 1/2″ à 8″

Run pipe : 1/2″ à 60″

Stainless Steel – ASTM / ASME SA 182 F304, 304L, 304H, 309H, 310H, 316, 316H, 316L, 316 LN, 317, 317L, 321, 321H, 347, 347 H.
Carbon Steel – ASTM / ASME A105N Weldolet / ASME A 350 LF 2.
Alloy Steel – ASTM / ASME A 182 GR F 5, F 9, F 11, F 12, F 22, F 91.

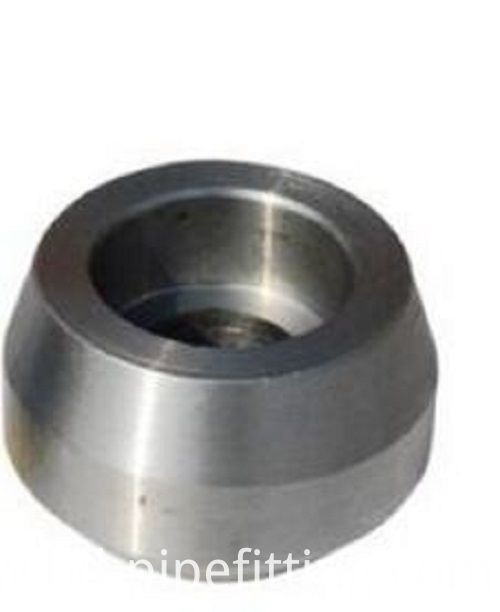

Socket Weld Reducing Branch Fittings

Looking for ideal Forged A105n Weldolet Threadolet Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Msssp75 Flanged Olet are quality guaranteed. We are China Origin Factory of NPT Olet Pipe Socket Fittings. If you have any question, please feel free to contact us.
