ASTM A105 Carbon Steel Mss Sp97 Weldolet

Share to:
    Unit Price: USD 23.76 / Piece/Pieces
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces

Basic Info

Model No.Weldolet

BrandBangdong

MaterialCarbon Steel

ConnectionFemale

Additional Info

PackagingWooden Cases or as per buyer's requirements

Productivity1000pcs/month

TransportationOcean,Land,Air,Train/TNT/DHL

Place of OriginCangzhou,China

Supply Ability1000pcs/month

CertificateISO/CE/API

HS Code73079300

PortTianjin New Port,Beijing Air Port,Zhengzhou Train Station

Payment TypeL/C,T/T

IncotermFOB,CFR,CIF

Product Description

ASTM A105 Carbon Steel Mss Sp97 Weldolet



Model No.: A105-Weldolet-3-2.5

China Weldolet Manufacturer  offers MSS SP-97 ASTM A105 Weldolet, Run Size 3 Inch, Branch 2.5 Inch, Class 6000, XXS.

Key Specifications / Features

Type: Weldolet
Material: A105
Wall Thickness: XXS
Size: 3 Inch X 2.5 Inch
Standard: MSS SP-97
Ends: BW Ends


Chemical Composition and Mechanical Property For ASTM A105
Steel Grade Chemical Composition Hardness Mechanical performance
C(Max) Mn P(Max) S(Max) Si Cu(Max) Ni(Max) Cr(Max) Mo(Max) V(Max) HB, max Tensile strength
(Min)
Yield Strength
(Min)
psi Mpa psi Mpa
A105 0.35 0.6-1.05 0.035 0.04 0.1-0.35 0.4 0.4 0.3 0.12 0.12 187 70000 485 36000 250


Olets

Weldolet Threadolet Socket Fittings

Msssp75 Olet

A105N Weldolet


We offer olets below :


Forged Weldolet , an economical butt-weld branch connection, is designed to minimize stress concentrations and provide integral reinforcement. manufactured to meet your specific reinforcement requirements.



Threadolet

Threadolet utilizes the basic Weldolet configuration, provides a threaded outlet branch connection. manufactured in 3000# and 6000# classes.



Sockolet

Sockolet  utilizes the basic Weldolet  design configuration and incorporates a socket-weld outlet. manufactured in 3000#, 6000# and 9000# classes.



Latrolet

Latrolet , used for 45deg lateral connections, is available butt-weld to meet your specific reinforcement requirements, and 3000# or 6000# classes for socket weld and threaded applications.



 Elbolet

Elbolet is used on 90Deg Long Radius Elbows (can be manufactured for Short Radius Elbows) for thermowell and instrumentation connections. Available butt-weld to meet your specific reinforcement requirements, and 3000# and 6000# classes for socket weld and threaded applications.



Sweepolet

Sweepolet is a contoured, integrally reinforced, butt-weld branch connection with a low stress intensification factor for low stresses and long fatigue life. The attachment weld is easily examined by radiography, ultrasound and other standard non-destructive techniques. Manufactured to meet your specific reinforcement requirements.



Nipolet

Nipolet is a one piece fitting for valve take-offs, drains and vents. Manufactured for Extra Strong and Double Extra Strong applications in 3 1/2" to 6 1/2" lengths. Available with male-socket-weld or male threaded outlets.



If you require any Olet Pipe Fittings , please call me freely . Weld Threaded Socket Fittings in stock ,We have mss sp97 olets in stock .

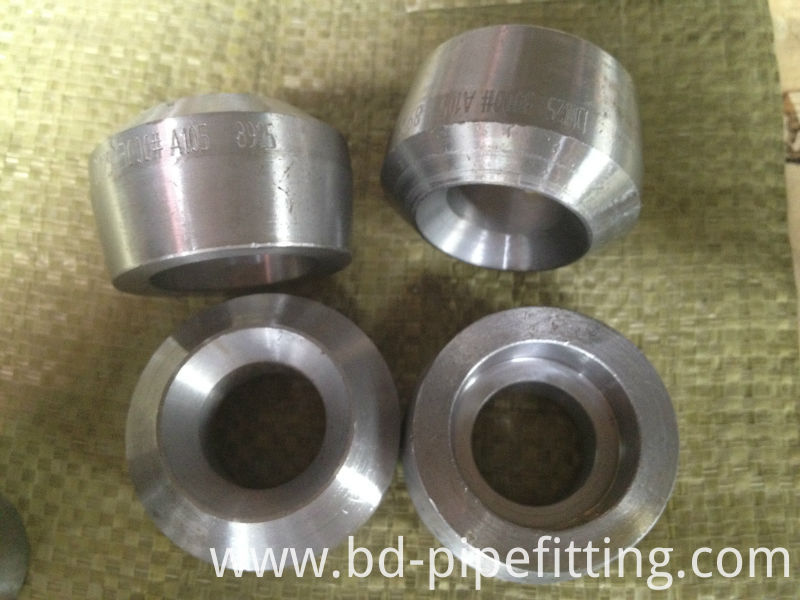

Mss Sp97 3000lbs A105 Weldolet Sockolet Thredolet
