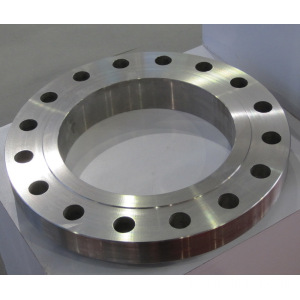

Carbon Steel Lap Joint Plate Flanges ANSI B16.5

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces
    Delivery Time: 25 Days

Basic Info

Model No.:  Plate Flanges

Standard: DIN, GB, JIS, ANSI, GOST, BSW

Type: Welding Flange

Material: Carbon Steel

Structure: Flanges

Connection: Welding

Sealing Surface: RF

Manufacturing Way: Forging

Additional Info

Packaging: Wooden Case or as per buyer's requirements

Productivity: 1000pcs/month

Brand: Bangdong

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

HS Code: 73072100

Port: Tianjin New Port,Beijing Air Port,Zhengzhou Train Station

Product Description

Carbon Steel Lap Joint Plate Flanges ANSI B16.5


Bangdong Supply Raised Face Lap Joint Flange,Forged Steel Lap Joint Flange,Oriface Lap Joint Nozzle Flange.Lap Joint Flanges The lap joint flange is practically identical to the slip-on flange except it has a radius at the intersection of the bore and flange face. This radius is necessary to have the flange accommodate a lap joint stub end. Normally, a lap joint flange and the lap joint stub end are mated together in an assembly system.


FORGED FLANGES
Standard:ASME/ANSI B16.5,ASME/ANSI B16.36,ASME/ANSI B16.47 SERIES A(MSS SP-44),SERIES B(API 605),BS4504,EN1092-01,AWWA C207,UNI 2276-67,DIN,JIS,BS 10:1962,IS:6392-1971,API 6A.etc.
CLASES:ASA(150#,300#,400#,600#,900#,1500#,2500#),BS 4504/EN 1092-01-(PN2.5,PN6,PN10,PN16,PN25,PN40,PN63/64,PN100,PN160,PN250,PN320,PN400),(JIS B2220,B2210),(UNI 2276-67,2278-67,2278-67),(IS TABLE 5,11,17),BS 10(TABLE D,E,F,H,J,K,R),DIN(2576,2527,2641,2642,2638,2628,2629,2630,2631,2632,2633,2634,2635,2627,28115)AWWA (C207 CLASSB,D,E,),API 6A (2000PSI,3000PSI,5000PSI,10000PSI),SAE FLAGES 3000PSI,6000PSI.etc.
TYPE: WELD-NECK,SLIP-ON,BLIND,SOCKET-WELD,THREADED,LAP-JOINT,LONG WELD-NECK,ORIFFICE,SPACER,SPADE,SPECTECLE BLIND,SQUARE FLANGES & AS PER YOUR DRAWINGS/REQUIREMENTS.etc.
SIZE:1/2"TO 60"(150#,300#400#,600#)ALL TYPE.
½"TO 48" (900# ) ALL TYPE
½"TO 24" (1500#,2500# ) ALL TYPE
FACE:RAISED-FACE,FLAT-FACE,RING-JOINT,LARGE MALE-FEMALE,SMALL MALE-FEMALE,LARGE TONGUE-GROOVE,SMALL TONGUE-GROOVE,O-RING SPIGOT,O-RING GROOVE,SPIGOT,RECESS etc.


WELDING NECK FLANGES are distinguished from other types by their long tapered hub and gentle transition of thickness in the region of the butt weld joining them to the pipe. The long tapered hub provides an important reinforcement of the flange proper from the standpoint of strength and resistance to dishing.

The smooth transition from flange thickness to pipe wall thickness effected by the taper is extremely beneficial under conditions of repeated bending, caused by line expansion or other variable forces and produces an endurance strength of welding neck flanged assemblies equivalent to that of a butt welded joint between pipes, which, in practice, is the same as that of unwelded pipe. Thus this type of flange is preferred for every severe service condition, whether this results from high pressure or from sub-zero or elevated temperature, and whether loading conditions are substantially constant or fluctuate between wide limits.

We have stock for :
Blind Flange
Ansi Blind Flange
Stainless Steel Blind Flange
Raised Face Blind Flange
Slip On Flange
Slip On Weld Flange
SO Flange
Slip On Pipe Flange
Weld Neck Flange


Carbon Steel Lap Joint Plate Flanges ANSI B16.5

Looking for ideal Raised Face Lap Joint Flange Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Forged Steel Lap Joint Flange are quality guaranteed. We are China Origin Factory of Oriface Lap Joint Nozzle Flange. If you have any question, please feel free to contact us.
