Company Details
Shijiazhuang Bang dong Pipeline Technology Co,Ltd.
Payment Type: | L/C,T/T |
---|---|
Incoterm: | FOB,CFR,CIF |
Min. Order: | 10 Piece/Pieces |
Model No.: Steel Pipe Fittings
Brand: Bangdong
Connection: Male
Shape: Reducing
Head Code: Round
Angle: 90 Degree
Wall Thickness: XS
Material: Alloy
Technics: Forged
Certification: API
Color: Black
Packaging: Wooden Cases or as per buyer's requirements
Productivity: 1000pcs/month
Transportation: Ocean,Land,Air,Train/TNT/DHL
Place of Origin: Cangzhou,China
Supply Ability: 1000pcs/month
Certificate: ISO/CE/API
HS Code: 73079300
Port: Tianjin New Port,Beijing Air Port,Wuhan Train Station
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF

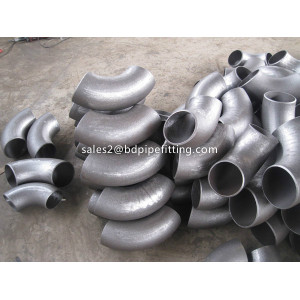

Hot Galvanized Butt Weld Carbon Steel Pipe Fittings
Describe of 90 Degree steel Iron Pipe Fitting
We are one of the 90 Degree Galvanized Steel Radius Elbows
manufacturers, which`s in the 90 Degree Galvanized Pipe Fittings field over 30 years. The factorycore culture is regarding create best quality 90 Degree steel Iron Pipe Fitting to 90 Degree steel Iron Pipe Fitting wholesalers, 90 Degree Galvanized Elbows Fittings vendors, 90 Degree Hot Galvanized Fitting retailers.
Measurement chart of 90 Degree steel Iron Pipe Fitting
Size | Inch | 3/8X1/4 | 1/2x1/4 | 1/2x3/8 | 3/4x3/8 | 3/4x1/2 |
mm | 10X8 | 15X8 | 15X10 | 20X10 | 20X15 | |
Dim. (mm) | A | 23 | 26 | 26 | 28 | 30 |
B | 23 | 26 | 26 | 28 | 31 | |
Size | Inch | 1x1/2 | 1x3/4 | 11/4x1/2 | 11/4x3/4 | 11/4x1 |
mm | 25X15 | 25X20 | 32X15 | 32X20 | 32x25 | |
Dim. (mm) | A | 32 | 35 | 34 | 36 | 40 |
B | 34 | 36 | 38 | 41 | 42 |
90 Degree Male Female Elbow Galvanized Steel Iron Pipe Fitting From China
Higher heating value gas annealing furnace for 90 Degree Steel Iron Pipe Fitting was assembled in product-line of 90 Degree Steel Iron Pipe Fitting to improve material physical characteristics.
The equipments from DISA Denmark, DJ AMF Japan, SINTOKOGIO Japan widely used in our Steel iron elbow productline, ensures the stability of product quality of 90 Degree Steel Iron Pipe Fitting .
Our production equipments for 90 Degree Steel Iron Pipe Fitting are advanced,we import fully automated production line of 90 Degree Steel Iron Pipe Fitting to make the shaping mold of superior quality and high efficient.
The final casting fittings of 90 Degree Steel Iron Pipe Fitting are made of close-grained, high strength, impeccable steel & plate scrap.
Our accurate threads are complied with strict standard ,such as AME,EN,BS,DIN etc.The threads of 90 Degree Hot Galvanized Fitting
have an accurate structure,make sure that the thread length and straightness are easier to coincide with thread pipe.
The pipe fittings` size of 90 Degree Steel Iron Pipe Fitting ranging from 1/8" to 8"
Bangdong Supply Hot Galvanized Steel Fittings,Butt Weld Carbon Steel Fittings,Weld Carbon Steel Pipe Fittings.Piping systems joined by welding offer considerable advantage over other types of systems. A welded system is permanent, leak-proof and requires little or no maintenance. Welding construction uses a minimum of space, enabling it to be nested in corners or fitted against ceilings, walls or equipment.
Sizes:
1/2" to 48"
Larger sizes available on request.
Wall Thickness:
Standard
Extra Heavy
True and Special Schedules
Configurations:
45°, 90°, and 180° Elbows (Other degrees available on request and POA)
3R Elbows - 45° & 90°, segmentable and non-segmentable.
Straight Tees
Reducing Tees and Elbows
Concentric and Eccentric Reducers
Caps and Stub Ends
Crosses and Laterals
Specifications governing the properties of weld fittings are:
Physical and Chemical: ASTM A/SA234-WPB and WPB-X produced from plate fittings up to 24″ considered to be seamless. Fittings 26″ and higher are generally constructed from plate and welded such as ASTM A-516.
Dimensional: ANSI B16.9, B16.11, B16.25, B16.28, and MSS SP-25, MSS SP-48 and Mss Sp-75 (for higher yield fittings), WPH-Y42 through WPH-Y70+
A420-WPL6, & A860 304(L), 316(L) and other alloys are available by special order
Product Categories : Butt Weld Pipe Fitting > Hot Galvanized Fitting
