Company Details
Shijiazhuang Bang dong Pipeline Technology Co,Ltd.
Payment Type: | L/C,T/T |
---|---|
Incoterm: | FOB,CFR,CIF |
Min. Order: | 10 Piece/Pieces |
Model No.: P-Steel Flanges
Brand: Bangdong
Standard: BSW
Type: Welding Flange
Material: Carbon Steel
Structure: Lateral
Connection: Welding
Sealing Surface: RF
Manufacturing Way: Forging
Packaging: Wooden Cases or as per buyer's requirements
Productivity: 1000pcs/month
Transportation: Ocean,Land,Air,Train/TNT/DHL
Place of Origin: Cangzhou,China
Supply Ability: 1000pcs/month
Certificate: ISO/CE/API
HS Code: 73043990
Port: Tianjin New Port,Beijing Air Port,Zhengzhou Train Station
Payment Type: L/C,T/T
Incoterm: FOB,CFR,CIF

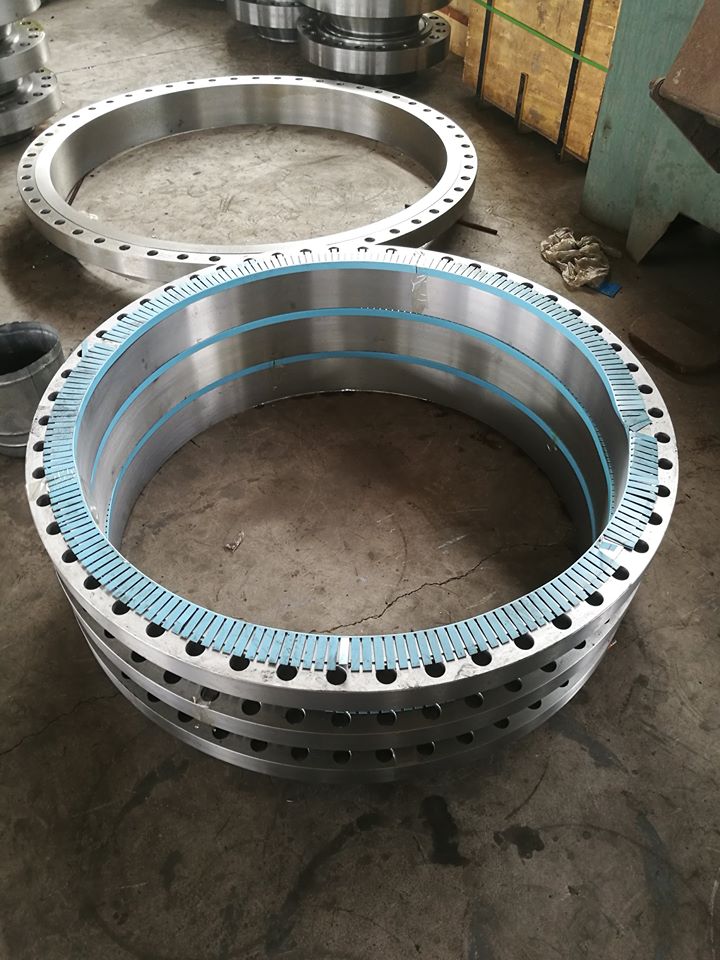

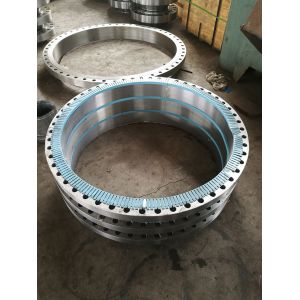

A694 F42/ 46/52/56 Steel Flanges
Bangdong Supply ASTM A182 316L Flanges,ASTM A182 F304 Flanges,ASTM A182 904L Flanges.Used in conjunction with a "Lap Joint Stub End," these flanges are nearly identical to a slip-on flange with the exception of a radius at the intersection of the flange face and the bore to accommodate the flanged portion of the stub end. These flanges are used in applications where the joint must be frequently disassembled for cleaning or where there is a need to facilitate bolt alignment.
TYPE OF FLANGES
· Slip on
· Screwed
· Blind
· Socket Weld
· Reducing
· Weld Neck
· Lap Joint
· Ring Type Joint
· Spectacle
· Orifice
· Etc.
Sizes
:
1/2" NB TO 24" NB.
Class
:
150#, 300#, 400#, 600#, 900#, 1500# & 2500#.
Materials
:
Carbon Steel, Stainless Steel, Low Temperature Carbon Steel, Alloy Steel, Steam Boiler Quality, Plus "Exotic" Materials I.E Various Grades Nickel, Monel, Incoloy, Hastelloy, Inconel, Cupronickel & Titanium
MATERIALS GRADES / STANDARD / SPECIFICATION:
Stainless Steel
:
ASTM A182 F304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904Letc.
Carbon Steel
:
ASTM A105/ A694 F42/ 46/52/56/60/65/70/A350 LF3/A350 LF2, etc.
Alloy Steel
:
ASTM A182 F1/ F5/ F9/ F11/ F22/ F91 etc.
Others
:
Monel, Nickel, Inconel, Hastalloy, Copper, Brass, Bronze, Titanium, Tantalum, Bismuth, Aluminium, High Speed Steel, Zinc, Lead, etc.
DIMENSIONS
:
ANSI B 16.5, BS 1560. BS 10, IS 6392, B-2.1 NPT, API, DIN, JIS. MSS SP 44
Flange Type :
Thread Flange
Blind Flange
Slip On Flange
Weld Neck Flange
Spacer & Spade
LWN Flange
Orifice Flange
Spectacle Blind Flange
Product Categories : Steel Flange > Flanged Outlet
