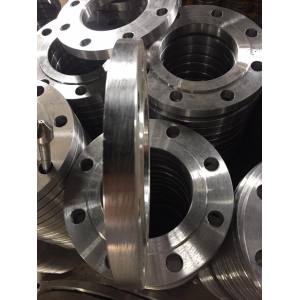

carbon steel Ring Type Joint Steel Flanges

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces
    Delivery Time: 15 Days

Basic Info

Model No.: P-Steel Flanges

Standard: DIN, GB, JIS, ANSI, GOST, BSW

Type: Welding Flange

Material: Carbon Steel

Structure: Lateral

Connection: Welding

Sealing Surface: RF

Manufacturing Way: Forging

Additional Info

Packaging: Wooden Cases or as per buyer's requirements

Productivity: 1000pcs/month

Brand: Bangdong

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

HS Code: 73043990

Port: Tianjin New Port,Beijing Air Port,Zhengzhou Train Station

Product Description

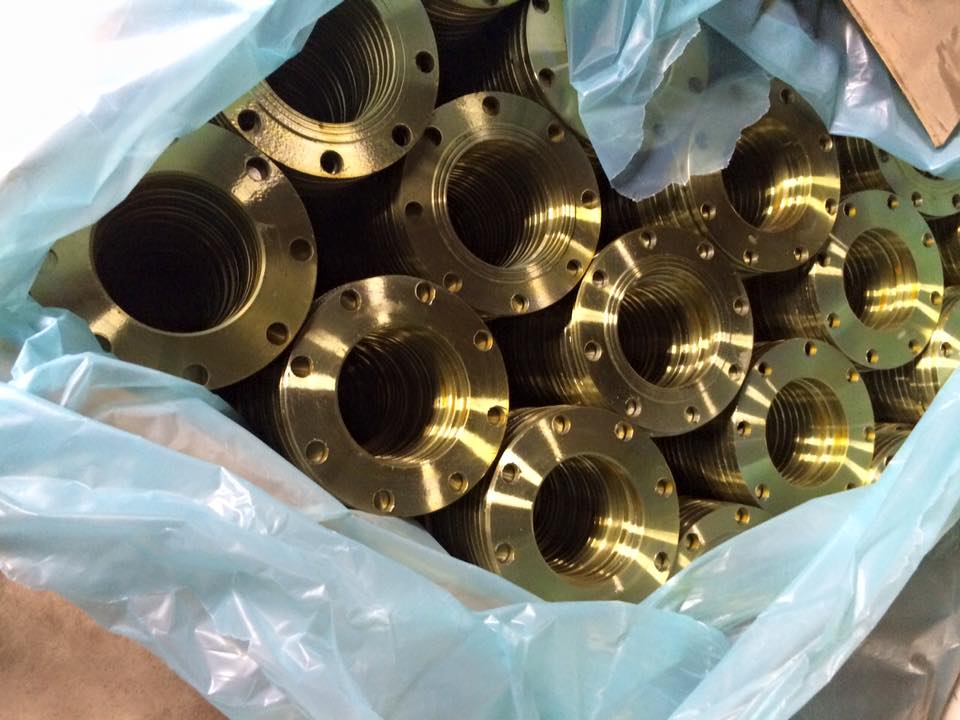

Ring Type Joint Steel Flanges


Bangdong Supply Ring Type Joint Steel Flanges,Steel forged Flanges,Screwed Steel Flanges.This group of flanges is designed with a hub on the backside tapering to a diameter that will match the pipe to which it will be welded. The lighter the pipe is, the larger the bore, conversely, the heavier the pipe, the small the bore. These flanges are bored to match the inside diameter of the mating pipe so there will be no restriction of product flow. This prevents turbulence at the joint and reduces erosion. Welding neck flanges are preferred for use in severe service applications involving high pressure, cold or hot temperatures. They also provide excellent stress distribution through the tapered hub and are easily radiographed for flaw detection.


TYPE OF FLANGES

Slip on

Screwed Blind Socket Weld
Reducing Weld Neck Lap Joint Ring Type Joint
Spectacle Orifice Etc.

SIZES : 1/2” NB TO 24” NB.
CLASS : 150#, 300#, 400#, 600#, 900#, 1500# & 2500#.
MATERIALS : Carbon Steel, Stainless Steel, Low Temperature Carbon Steel, Alloy Steel, Steam Boiler Quality, Plus "Exotic" Materials I.E Various Grades Nickel, Monel, Incoloy, Hastelloy, Inconel, Cupronickel & Titanium
MATERIALS GRADES / STANDARD / SPECIFICATION:
STAINLESS STEEL: ASTM A182 F304/ 304L/ 304H/ 316/ 316L/ 317/ 317L/ 321/ 310/ 347/ 904Letc.
CARBON STEEL: ASTM A105/ A694 F42/ 46/52/56/60/65/70/A350 LF3/A350 LF2, etc.
ALLOY STEEL: ASTM A182 F1/ F5/ F9/ F11/ F22/ F91 etc.
OTHERS : Monel, Nickel, Inconel, Hastalloy, Copper, Brass, Bronze, Titanium, Tantalum, Bismuth, Aluminium, High Speed Steel, Zinc, Lead, etc.
DIMENSIONS : ANSI B 16.5, BS 1560. BS 10, IS 6392, B-2.1 NPT, API, DIN, JIS. MSS SP 44


Lap Joint Flange Stub End
Lap Joint Flange
Stainless Steel Lap Joint Flange
Alloy Lap Joint Flange
Raised Face Threaded Flange
Blind Flange

Astm A105 Carbon Steel Pipe Rf Blind Flange20169231712019214

Ring Type Joint Steel Flanges

Looking for ideal Ring Type Joint Steel Flanges Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the Steel Forged Flanges are quality guaranteed. We are China Origin Factory of Screwed Steel Flanges. If you have any question, please feel free to contact us.
