ANSI B16.5 NPT weldneck Flange

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 1 Piece/Pieces
    Delivery Time: 20 Days

Basic Info

Model No.: weldneck Flange

Standard: DIN, GB, JIS, ANSI, GOST

Type: Welding Flange

Material: Alloy Steel

Structure: Flanges

Connection: Welding

Sealing Surface: RF

Manufacturing Way: Forging

Additional Info

Packaging: Wooden Case or as per buyer's requirements

Productivity: 1000pcs/month

Brand: Bangdong

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

Product Description

ANSI B16.5 NPT neck Flange

Bangdong produce all kinds of flange ,and sell the product to many countries. we Manufacturing inventories an entire line of Carbon and Asme B16.5 Stainless Steel pipe flanges. flange include: A350 Lf2 Lwn Flange,A105n Weld Neck Flange,Asme B16.5 Forged Flange,Thread Steel Fitting & Flange,Ansi Slip On Pipe Flange

Stainless Steel Raised Facethreaded Flange, Steel Flange Weld Neck Flange,Spectacle Blank Spectacle Blind Flange.



weldneckedit

Product Description

The welding neck flange derives its name from the neck portion of the flange that is welded to the end of a piping system. It is designed to transfer stress to the pipe, thereby reducing high stress concentrations at the base of the flange. Weldneck Flanges are costlier due to their design and engineering, and increased material

Our weldneck Flanges are available with raised, flat, or RTJ faces, and are also available in Orific configurations.

These Flange are available in all of our stainless steel and chrome-moly grades, from ½" to 36" and beyond, class 150 to 2500. We also stock large diameter Series A B16.47 Weldneck Flanges in A105N, and can supply Series B weldnecks with longer lead times. We can also source many of your other specification requirements.


Standards: ANSI, AS2129, JIS, DIN, EN-1092-1, BS10, BS4504 etc

Nominal Pressure: PN0.25-PN42, 150LB-900LB, 5K--30K.

Nominal Diameter: DN10A-DN600A, NPS:3/8"-24".

Materials: Carbon steel, stainless steel and alloy steel.

Printing: Carbon steel and alloy steel with yellow print, black print, oil or zinc.

Packing: Plywooden case.

Payment terms: both L/C at sight and T/T before shipment.



Flange Type :

Thread Flange

Blind Flange

Slip On Flange

Weld Neck Flange

Spectacle Blind Flange

Spacer & Spade

LWN Flange

Orifice Flange

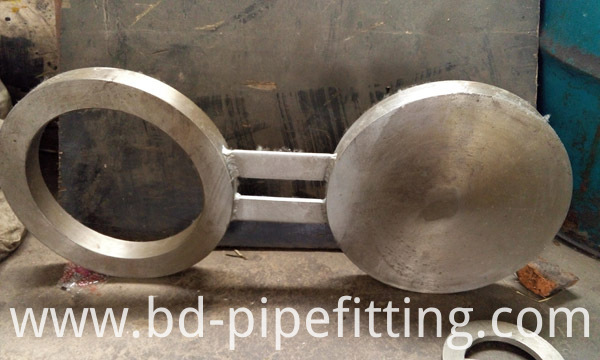

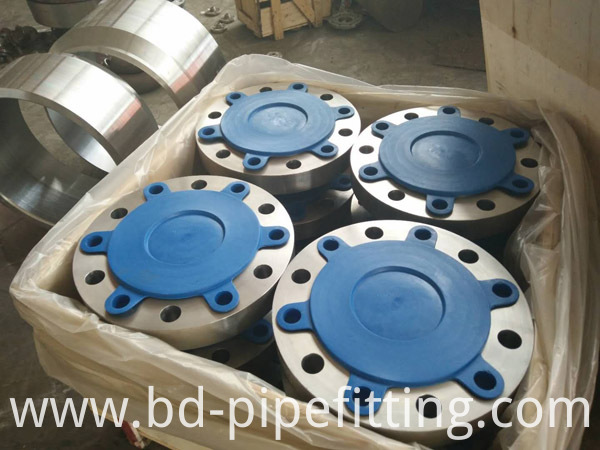

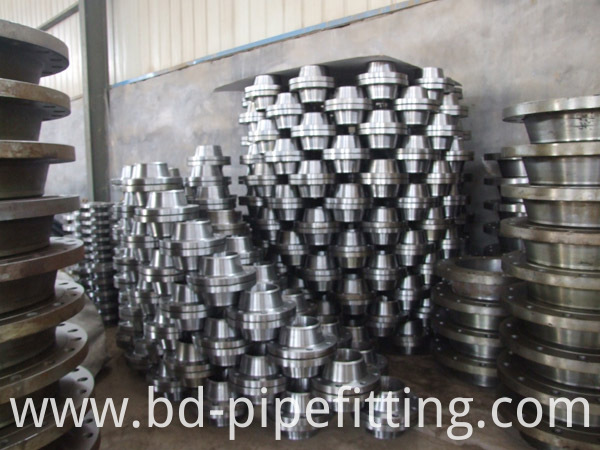

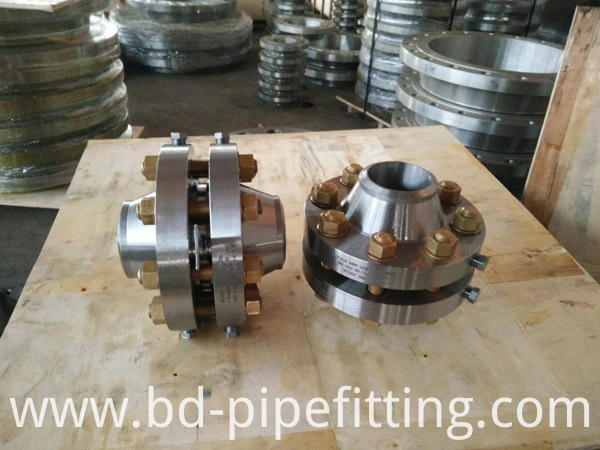

21199488 113564279361954 2852051090199505214 O21246507 113563452695370 2506064620281713801 ODscf9057Figure 8 Blind21167747 113563446028704 5339469380696656900 O

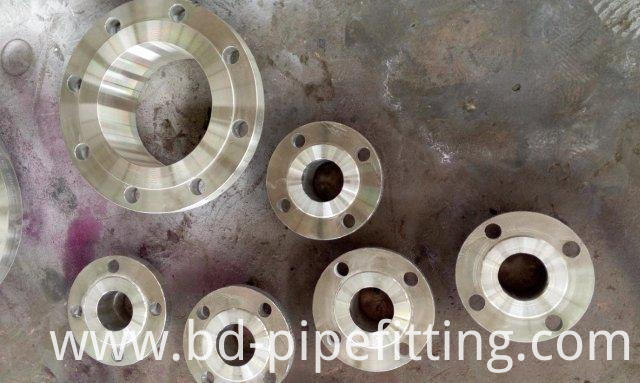

Screwed Steel Flange

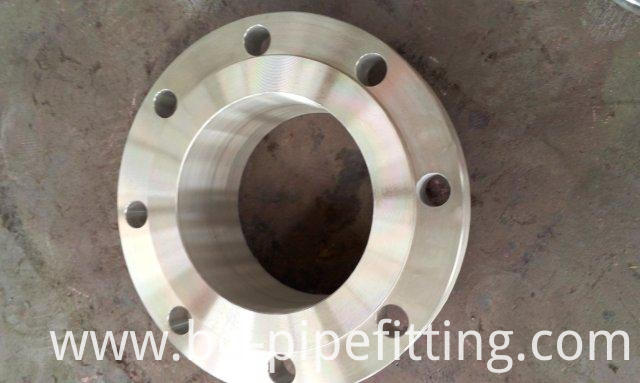

Screwed Steel Flange

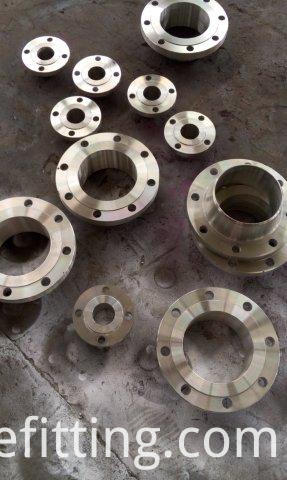

Threaded Steel Flange

Looking for ideal Caton Steel Weld Neck Flange Manufacturer & supplier ? We have a wide selection at great prices to help you get creative. All the FNPT Steel Flange are quality guaranteed. We are China Origin Factory of Weld Neck Steel Flange. If you have any question, please feel free to contact us.

Product Categories : Steel Flange > Flanged Outlet
