A106 Seamless Carbon Steel Pipes

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Meter

Basic Info

Model No.Carbon Steel Pipes

BrandBangdong

TypeSeamless

CertificationCE

ApplicationDrill Pipe

Section ShapeRound

Surface TreatmentGalvanized

UsageConstruction & Decoration

TechniqueHot Rolled

MaterialCarbon Steel

Additional Info

PackagingBundled or as per buyer's requirements

Productivity1000mtr/month

TransportationOcean,Land,Air,Train/TNT/DHL

Place of OriginCangzhou,China

Supply Ability1000mtr/month

CertificateISO/CE/API

HS Code73043990

PortZhengzhou Train Station,Tianjin New Port,Beijing Air Port

Payment TypeL/C,T/T

IncotermFOB,CFR,CIF

Product Description

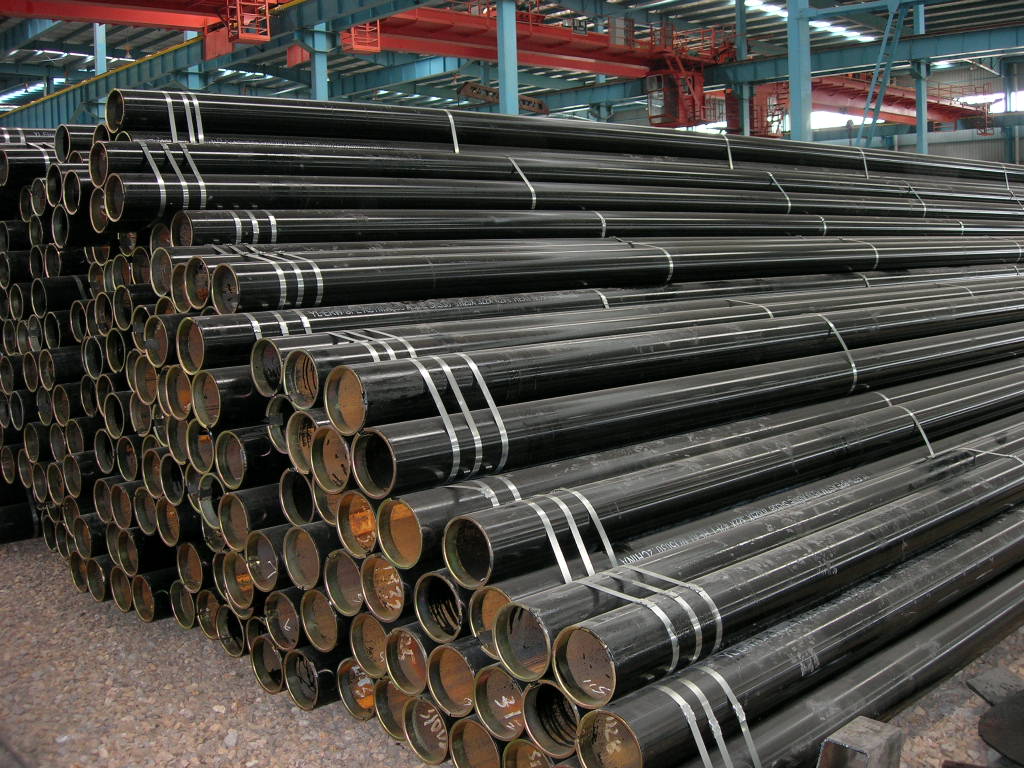

 A106 Seamless Carbon Steel Pipes


ASTM A106 pipe is always produced by the seamless method and can be bent, coiled and flanged. In sizes less than 2" is it usually produced as a cold drawn product. 2" and up are usually hot finished.

APPLICATIONS

A106 pipe is intended for use in high temperature applications.


A/SA106

NPS 1/4″- 30″

Schedules 10 through 160, STD, XH and XXH

ASTM A106 seamless pressure pipe (also known as ASME SA106 pipe) is commonly used in the construction of oil and gas refineries, power plants, petrochemical plants, boilers, and ships where the piping must transport fluids and gases that exhibit higher temperatures and pressure levels.

China Piping Products stocks a full range of A106 pipe (SA106 Pipe) in:
Grades B and C
NPS ¼" to 30" diameter
Schedules 10 through 160, STD, XH and XXH
Schedules 20 through XXH
Wall Thickness beyond XXH, including:
– Up to 4" wall in 20" through 24" OD
– Up to 3" wall in 10" through 18" OD
– Up to 2" wall in 4" through 8" OD
A106 B Steel Pipe  specs are listed below. If you`re looking for Grade B-specific product offerings

Scope
ASTM A106 Seamless Pressure Pipe (also known as ASME SA106 pipe) covers seamless carbon steel nominal wall pipe for high-temperature service. Suitable for bending, flanging and similar forming operations.

NPS 1-1/2″ and under may be either hot finished or cold drawn. NPS 2″ and larger shall be hot finished unless otherwise specified.

Looking for specific post-production services? See our full list.

Process
Killed steel, with primary melting process being open-hearth, basic-oxygen, or electric-furnace, possibly combined with separate degassing or refining.

Steel cast in ingots or strand cast is permissible.

Hot-finished pipe need not be heat treated.

Cold-drawn pipe shall be heat treated after the final cold draw pass.

Grade A Grade B Grade C
Carbon max. % 0.25 0.30 0.35
*Manganese % 0.27 to 0.93 *0.29 to 1.06 0.29 to 1.06
Phosphorous, max. % 0.035 0.035 0.035
Sulfur, max. % 0.035 0.035 0.035
Silicon, min.% 0.10 0.10 0.10
Chrome, max. % 0.40 0.40 0.40
Copper, max. % 0.40 0.40 0.40
Molybdenum, max. % 0.15 0.15 0.15
Nickel, max. % 0.40 0.40 0.40
Vanadium, max.% 0.08 0.08 0.08

Total of Cr, Cu, Mo, Ni, and V shall not exceed 1%

We supply Api5l Steel Pipe , S355 ST52 LSAW SSAW Spiral Welded Carbon Steel Pipes  Carbon Steel Pipe carbon steel pipe and steel tubing in an extraordinary range of grades and specifications. Seamless steel pipe and tubing is stocked in outer diameters (OD`s) through 36", ERW (Electric Resistance Welded) pipe, including rolled and Welded Pipe and spiral weld pipe, is stocked in OD`s through 60". As a specialist in schedule and non-schedule heavy wall pipe and tubing, including API 5L (X-grades), ASTM (A106 B/C, A53, A519, A513 Type 5 DOM), and ASME specifications.



Seamless and Welded Carbon Products
Size range: ½" nominal through 60" OD
Wall Thickness up through 4" thick & heavier upon request
Specifications & Grades:
A-106 Grade B/C
SA-106 Grade B/C
A-333, Grade 1/6
API 5L & X-Grades through X-80
A-53 Grade B
SA-53 Grade B
A-519
A-513 Type 5 (DOM)
Rolled and Welded A-671 & A672
A-106/SA-106 Seamless Pipe is one of our most popular products.  We carry Schedules STD through XXH and Sch 160.

A-106 Grade B/C
This American Society for Testing and Materials (ASTM) specification covers seamless steel pipe for high temperature service in the size range of 1/8" NPS to 48" NPS. Federal Steel Supply is a stocking distributor of carbon steel pipes to this specification in sizes from ¼" NPS to 36" NPS, specializing in heavy wall pipe. Seamless steel pipe ordered under this specification is suitable for bending, flanging, forming, and welding. Key applications for A106 and SA106 include refineries, power plants, boilers, ship building, and other specialized applications. Pressure pipe applications also include heat exchangers, condenser and boilers.

SA-106 Grade B/C
This is an ASME specification covering manufacture and installation of pressure piping and is tightly regulated by the ASME (American Society of Mechanical Engineers) Boiler and Pressure Vessel Code. Pressure piping is generally pipe that must carry pressures greater than 10 to 25 atmospheres, although definitions vary. To ensure safe operation of the system, the manufacture, storage, welding, testing, etc. of pressure piping must meet stringent quality standards.
