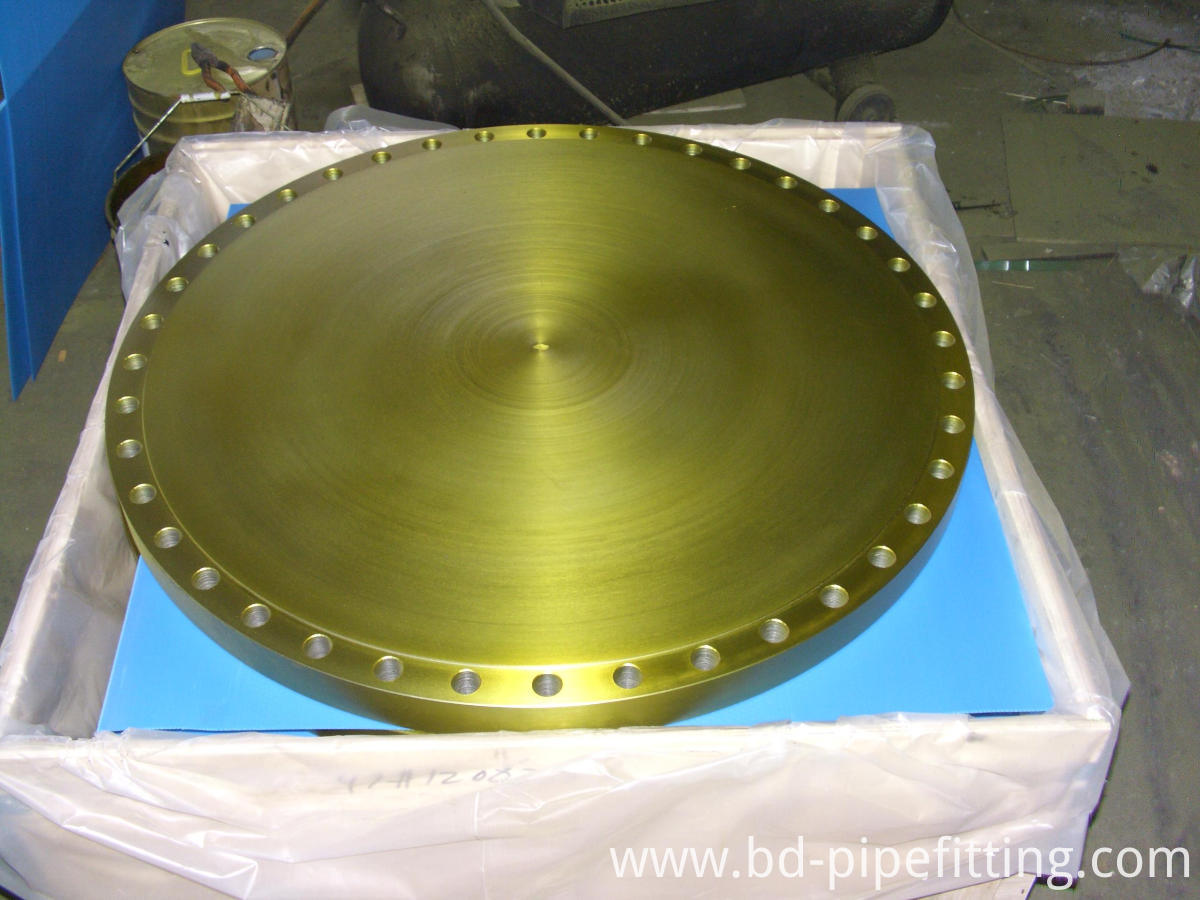

BL blind stainless steel RF flanges
Blind flanges are used to blank off pipelines, valves and pumps. They can also be used as an inspection cover. It is sometimes referred to as a blanking flange.
Blind Flange - A Blind flange is round plate which has all of the relevant boltholes but no centre hole, and because of this feature this flange is used to close off the ends of a piping systems and pressure vessel openings. It also permits easy access to vessels or Piping systems for inspection purposes.
Standards: ASME B16.47, ANSI B16.5, DIN, UNI, BS, JIS, GB.if you are intered in our product, you may go to website:www.bd pipefitting.com
Pressure classes range: from 150lbs to 2,500lbs.
Sizes range: 1/2" - 24" .
Materials: F316, F304, F316L, F304L, A105, F5, F11, F22, 15CrMo, 12CrMoV, Q235, 16Mn, 20#.
Printing: Carbon steel and alloy steel with yellow print, black print, oil or zinc.
Blind Flanges Class 150LB | Blind forged flanges of class 150LB |
---|---|
Standard | Asme B16.5 |
Core Material | Carbon steel and stainless steel |
Connecting Finish | Stock finish, spiral serration (or phonographic), concentric serration and smooth surface |
Pipe Schedule | See sheets of pipe schedule for carbon steel , and for stainless steel |

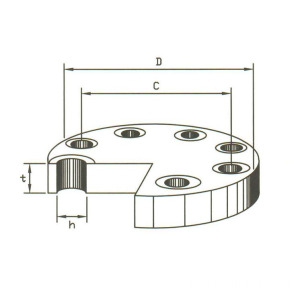

Size inch | D mm | G mm | t mm |
---|---|---|---|
1/2 | 89 | 35.1 | 11.2 |
3/4 | 99 | 42.9 | 12.7 |
1 | 108 | 50.8 | 14.2 |
1¼ | 117 | 63.5 | 15.7 |
1½ | 127 | 73.2 | 17.5 |
2 | 152 | 91.9 | 19.1 |
2½ | 178 | 104.6 | 22.4 |
3 | 191 | 127.0 | 23.9 |
3½ | 216 | 139.7 | 23.9 |
4 | 229 | 157.2 | 23.9 |
5 | 254 | 185.7 | 23.9 |
6 | 279 | 215.9 | 25.4 |
8 | 343 | 269.7 | 28.4 |
10 | 406 | 323.9 | 30.2 |
12 | 483 | 381.0 | 31.8 |
14 | 533 | 412.8 | 35.1 |
16 | 597 | 469.9 | 36.6 |
18 | 635 | 533.4 | 39.6 |
20 | 699 | 584.2 | 42.9 |
24 | 813 | 692.2 | 47.8 |
Size | Drilling | Bolting | |||||
---|---|---|---|---|---|---|---|
inch | Bolt circle Ø mm | Qty of holes | Holes Ø mm | Bolt Ø inch | Length mach bolt (RF) | Length Stud Bolt (RF) | Length stud bolt (RJ) |
1/2 | 60.5 | 4 | 15.7 | 1/2 | 50.8 | 57.2 | - |
3/4 | 69.9 | 4 | 15.7 | 1/2 | 50.8 | 63.5 | - |
1 | 79.2 | 4 | 15.7 | 1/2 | 57.2 | 63.5 | 76.2 |
1¼ | 88.9 | 4 | 15.7 | 1/2 | 57.2 | 69.9 | 82.6 |
1½ | 98.6 | 4 | 15.7 | 1/2 | 63.5 | 69.9 | 82.6 |
2 | 120.7 | 4 | 19.1 | 5/8 | 69.9 | 82.6 | 95.3 |
2½ | 139.7 | 4 | 19.1 | 5/8 | 76.2 | 88.9 | 101.6 |
3 | 152.4 | 4 | 19.1 | 5/8 | 76.2 | 88.9 | 101.6 |
3½ | 177.8 | 8 | 19.1 | 5/8 | 76.2 | 88.9 | 101.6 |
4 | 190.5 | 8 | 19.1 | 5/8 | 76.2 | 88.9 | 101.6 |
5 | 215.9 | 8 | 22.4 | 3/4 | 82.6 | 95.3 | 108.0 |
6 | 241.3 | 8 | 22.4 | 3/4 | 82.6 | 101.6 | 114.3 |
8 | 298.5 | 8 | 22.4 | 3/4 | 88.9 | 108.0 | 120.7 |
10 | 362.0 | 12 | 25.4 | 7/8 | 101.6 | 114.3 | 127.0 |
12 | 431.8 | 12 | 25.4 | 7/8 | 101.6 | 120.7 | 133.4 |
14 | 476.3 | 12 | 28.4 | 1 | 114.3 | 133.4 | 146.1 |
16 | 539.8 | 16 | 28.4 | 1 | 114.3 | 133.4 | 146.1 |
18 | 577.9 | 16 | 31.8 | 11/8 | 127.0 | 146.1 | 158.8 |
20 | 635.0 | 20 | 31.8 | 11/8 | 139.7 | 158.8 | 171.5 |
24 | 749.3 | 20 | 35.1 | 1¼ | 152.4 | 171.5 | 184.2 |
Blind Flanges Class 300LB | Blind forged flanges of class 300LB |
---|---|
Standard | ASME B16.5 |
Core Material | Carbon steel and stainless steel |
Connecting Finish | Stock finish, spiral serration (or phonographic), concentric serration and smooth surface |
Pipe Schedule | See sheets of pipe schedule for carbon steel here, and for stainless steel here |
Size inch | D mm | G mm | t mm |
---|---|---|---|
1/2 | 95 | 35.1 | 14.2 |
3/4 | 117 | 42.9 | 15.7 |
1 | 124 | 50.8 | 17.5 |
1¼ | 133 | 63.5 | 19.1 |
1½ | 155 | 73.2 | 20.6 |
2 | 165 | 91.9 | 22.4 |
2½ | 191 | 104.6 | 25.4 |
3 | 210 | 127.0 | 28.4 |
3½ | 229 | 139.7 | 30.2 |
4 | 254 | 157.2 | 31.8 |
5 | 279 | 185.7 | 35.1 |
6 | 318 | 215.9 | 36.6 |
8 | 381 | 269.7 | 41.1 |
10 | 445 | 323.9 | 47.8 |
12 | 521 | 381.0 | 50.8 |
14 | 584 | 412.8 | 63.8 |
16 | 648 | 469.9 | 57.2 |
18 | 711 | 533.4 | 60.5 |
20 | 775 | 584.2 | 63.5 |
24 | 914 | 692.2 | 69.9 |
Size | Drilling | Bolting | |||||
---|---|---|---|---|---|---|---|
inch | Bolt circle Ø mm | Qty of holes | Holes Ø mm | Bolt Ø inch | Length mach bolt (RF) | Length stud bolt (RF) | Length stud bolt (RJ) |
1/2 | 66.5 | 4 | 15.7 | 1/2 | 57.2 | 63.5 | 76.2 |
3/4 | 82.6 | 4 | 19.1 | 5/8 | 63.5 | 76.2 | 88.9 |
1 | 88.9 | 4 | 19.1 | 5/8 | 63.5 | 76.2 | 88.9 |
1¼ | 98.6 | 4 | 19.1 | 5/8 | 69.9 | 82.6 | 95.3 |
1½ | 114.3 | 4 | 22.4 | 3/4 | 76.2 | 88.9 | 101.6 |
2 | 127.0 | 8 | 19.1 | 5/8 | 76.2 | 88.9 | 101.6 |
2½ | 149.4 | 8 | 22.4 | 3/4 | 82.6 | 101.6 | 114.3 |
3 | 168.1 | 8 | 22.4 | 3/4 | 88.9 | 108.0 | 120.7 |
3½ | 184.2 | 8 | 22.4 | 3/4 | 95.3 | 108.0 | 127.0 |
4 | 200.2 | 8 | 22.4 | 3/4 | 95.3 | 114.3 | 127.0 |
5 | 235.0 | 8 | 22.4 | 3/4 | 108.0 | 120.7 | 133.4 |
6 | 269.7 | 12 | 22.4 | 3/4 | 108.0 | 120.7 | 139.7 |
8 | 330.2 | 12 | 25.4 | 7/8 | 120.7 | 139.7 | 152.4 |
10 | 387.4 | 16 | 28.4 | 1 | 139.7 | 158.8 | 171.5 |
12 | 450.9 | 16 | 31.8 | 11/8 | 146.1 | 171.5 | 184.2 |
14 | 514.4 | 20 | 31.8 | 11/8 | 158.8 | 177.8 | 190.5 |
16 | 571.5 | 20 | 35.1 | 1¼ | 165.1 | 190.5 | 203.2 |
18 | 628.7 | 24 | 35.1 | 1¼ | 171.5 | 196.9 | 209.6 |
20 | 685.8 | 24 | 35.1 | 1¼ | 184.2 | 203.2 | 222.3 |
24 | 812.8 | 24 | 41.1 | 1½ | 203.2 | 228.6 | 254.0 |
Blind Flanges Class 600LB | Blind forged flanges of class 600LB |
---|---|
Standard | ASME B16.5 |
Core Material | Carbon steel and stainless steel |
Connecting Finish | Stock finish, spiral serration (or phonographic), concentric serration and smooth surface |
Pipe Schedule | See sheets of pipe schedule for carbon steel , and for stainless steel |
Size inch | D mm | G mm | t mm |
---|---|---|---|
1/2 | 95 | 35.1 | 14.2 |
3/4 | 117 | 42.9 | 15.7 |
1 | 124 | 50.8 | 17.5 |
1¼ | 133 | 63.5 | 20.6 |
1½ | 155 | 73.2 | 22.4 |
2 | 165 | 91.9 | 25.4 |
2½ | 191 | 104.6 | 28.4 |
3 | 210 | 127.0 | 31.8 |
3½ | 229 | 139.7 | 35.1 |
4 | 273 | 157.2 | 38.1 |
5 | 330 | 185.7 | 44.5 |
6 | 356 | 215.9 | 47.8 |
8 | 419 | 269.7 | 55.6 |
10 | 508 | 323.9 | 63.5 |
12 | 559 | 381.0 | 66.5 |
14 | 603 | 412.8 | 69.9 |
16 | 686 | 469.9 | 76.2 |
18 | 743 | 533.4 | 82.6 |
20 | 813 | 584.2 | 88.9 |
24 | 940 | 692.2 | 101.6 |
Size | Drilling | Bolting | |||||
---|---|---|---|---|---|---|---|
inch | Bolt circle Ø mm | Qty of holes | Holes Ø mm | Bolt Ø inch | Length mach bolt (RF) | Length stud bolt (RF) | Length stud bolt (RJ) |
1/2 | 66.5 | 4 | 15.7 | 1/2 | 76.2 | 69.9 | 76.2 |
3/4 | 82.6 | 4 | 19.1 | 5/8 | 88.9 | 82.6 | 88.9 |
1 | 88.9 | 4 | 19.1 | 5/8 | 88.9 | 82.6 | 88.9 |
1¼ | 98.6 | 4 | 19.1 | 5/8 | 95.3 | 88.9 | 95.3 |
1½ | 114.3 | 4 | 22.4 | 3/4 | 108.0 | 101.6 | 108.0 |
2 | 127.0 | 8 | 19.1 | 5/8 | 108.0 | 101.6 | 108.0 |
2½ | 149.4 | 8 | 22.4 | 3/4 | 120.7 | 114.3 | 120.7 |
3 | 168.1 | 8 | 22.4 | 3/4 | 127.0 | 120.7 | 127.0 |
3½ | 184.2 | 8 | 25.4 | 7/8 | 139.7 | 133.4 | 139.7 |
4 | 215.9 | 8 | 25.4 | 7/8 | 146.1 | 139.7 | 146.1 |
5 | 266.7 | 8 | 28.4 | 1 | 165.1 | 158.8 | 165.1 |
6 | 292.1 | 12 | 28.4 | 1 | 171.5 | 165.1 | 171.5 |
8 | 349.3 | 12 | 31.8 | 11/8 | 190.5 | 184.2 | 196.9 |
10 | 431.8 | 16 | 35.1 | 1¼ | 215.9 | 209.6 | 215.9 |
12 | 489.0 | 20 | 35.1 | 1¼ | 222.3 | 215.9 | 222.3 |
14 | 527.1 | 20 | 38.1 | 13/8 | 235.0 | 228.6 | 235.0 |
16 | 603.3 | 20 | 41.1 | 1½ | 254.0 | 247.7 | 254.0 |
18 | 654.1 | 20 | 44.5 | 15/8 | 273.1 | 266.7 | 273.1 |
20 | 723.9 | 24 | 44.5 | 15/8 | 285.8 | 279.4 | 292.1 |
24 | 838.2 | 24 | 50.8 | 17/8 | 330.2 | 323.9 | 336.6 |
Blind Flanges Class 900LB | Blind forged flanges of class 900LB |
---|---|
Standard | ASME B16.5 |
Core Material | Carbon steel and stainless steel |
Connecting Finish | Stock finish, spiral serration (or phonographic), concentric serration and smooth surface |
Pipe Schedule | See sheets of pipe schedule for carbon steel and for stainless steel |
Size inch | D mm | G mm | t mm |
---|---|---|---|
1/2 | 121 | 35.1 | 22.4 |
3/4 | 130 | 42.9 | 25.4 |
1 | 149 | 50.8 | 28.4 |
1¼ | 159 | 63.5 | 28.4 |
1½ | 178 | 73.2 | 31.8 |
2 | 216 | 91.9 | 38.1 |
2½ | 244 | 104.6 | 41.1 |
3 | 241 | 127.0 | 38.1 |
4 | 292 | 157.2 | 44.5 |
5 | 349 | 185.7 | 50.8 |
6 | 381 | 215.9 | 55.6 |
8 | 470 | 269.7 | 63.5 |
10 | 546 | 323.9 | 69.9 |
12 | 610 | 381.0 | 79.2 |
14 | 641 | 412.8 | 85.9 |
16 | 705 | 469.9 | 88.9 |
18 | 787 | 533.4 | 101.6 |
20 | 857 | 584.2 | 108.0 |
24 | 1041 | 692.2 | 139.7 |
Size | Drilling | Bolting | |||||
---|---|---|---|---|---|---|---|
inch | Bolt circle Ø mm | Qty of holes | Holes Ø mm | Bolt Ø inch | Length mach bolt (RF) | Length stud bolt (RF) | Length stud bolt (RJ) |
1/2 | 82.6 | 4 | 22.4 | 3/4 | 108.0 | 101.6 | 108.0 |
3/4 | 88.9 | 4 | 22.4 | 3/4 | 114.3 | 108.0 | 114.3 |
1 | 101.6 | 4 | 25.4 | 7/8 | 127.0 | 120.7 | 127.0 |
1¼ | 111.3 | 4 | 25.4 | 7/8 | 127.0 | 120.7 | 127.0 |
1½ | 124.0 | 4 | 28.4 | 1 | 139.7 | 133.4 | 139.7 |
2 | 165.1 | 8 | 25.4 | 7/8 | 146.1 | 139.7 | 146.1 |
2½ | 190.5 | 8 | 28.4 | 1 | 158.8 | 152.4 | 158.8 |
3 | 190.5 | 8 | 25.4 | 7/8 | 146.1 | 139.7 | 146.1 |
4 | 235.0 | 8 | 31.8 | 11/8 | 171.5 | 165.1 | 171.5 |
5 | 279.4 | 8 | 35.1 | 1¼ | 190.5 | 184.2 | 190.5 |
6 | 317.5 | 12 | 31.8 | 11/8 | 190.5 | 184.2 | 196.9 |
8 | 393.7 | 12 | 38.1 | 13/8 | 222.3 | 215.9 | 222.3 |
10 | 469.9 | 16 | 38.1 | 13/8 | 235.0 | 228.6 | 235.0 |
12 | 533.4 | 20 | 38.1 | 13/8 | 254.0 | 247.7 | 254.0 |
14 | 558.8 | 20 | 41.1 | 1½ | 273.1 | 266.7 | 292.1 |
16 | 616.0 | 20 | 44.5 | 15/8 | 285.8 | 279.4 | 298.5 |
18 | 685.8 | 20 | 50.8 | 17/8 | 323.9 | 317.5 | 333.6 |
20 | 749.3 | 20 | 53.8 | 2 | 349.3 | 342.9 | 362.0 |
24 | 901.7 | 20 | 66.5 | 1½ | 438.2 | 431.8 | 457. |
