Carbon Steel Line Pipe

Share to:
    Payment Type: L/C,T/T
    Incoterm: FOB,CFR,CIF
    Min. Order: 10 Piece/Pieces
    Delivery Time: 15 Days

Basic Info

Model No.: Line Pipe

Type: Welded

Certification: API, CE, BSI, UL

Application: Structure Pipe, Fluid Pipe, Oil Pipe, Boiler Pipe, Chemical Fertilizer Pipe, Gas Pipe, Hydraulic Pipe, Drill Pipe

Section Shape: Round

Surface Treatment: Black

Usage: Pipeline Transport, Special Purpose, Oil&Gas Well Drilling, Machinery Industry, Chemical Industry, Thermal Equipment, Mining, Construction & Decoration

Technique: SAW

Material: Carbon Steel

Additional Info

Packaging: Wooden Cases or as per buyer's requirements

Productivity: 1000pcs/month

Brand: Bangdong

Transportation: Ocean,Land,Air,Train/TNT/DHL

Place of Origin: Cangzhou,China

Supply Ability: 1000pcs/month

Certificate: ISO/CE/API

HS Code: 73043990

Port: Tianjin New Port,Wuhan Train Station,Zhengzhou Train Station

Product Description

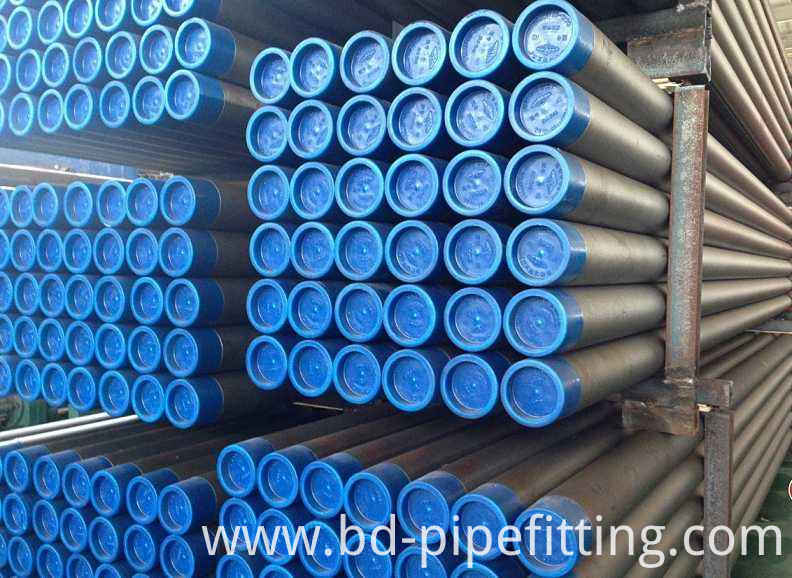

Carbon Steel Line Pipe


Bangdong Supply Steel Line Pipe,Weld Alloy Steel Pipe,DSAW Steel Pipe.The most easily distinguishable manufacturing method for Carbon Steel Pipe is spiral weld.pipe include: A182 F91 54 Inch Forged Pipe,Forged Alloy Steel Pipe,54 Inch Forged Alloy Steel Pipe,A182 F91 Forged Pipe,Saw Alloy Steel Pipes,Astm A 335 - P5 Pipes


CHARACTERISTICS

A500 steel pipes can be subjected to most of the usual fabricating operations. Ductility is good. It bends well, flattens, cuts, punches, flares and flanges easily, and can be welded by the commonly-used techniques and practices.

OD and Nominal Pipe Size

Tubing is measured by the OUTSIDE DIAMETER (O.D.), specified in inches (e.g., 1.250) or fraction of an inch (eg. 1-1/4″).

Pipe is usually measured by NOMINAL PIPE SIZE (NPS). Although it is related to the outside diameter, it is significantly different. For example, a 1-1/2″ pipe size actually has an outside diameter of 1.9″ NOT 1.5″. The table below cross-references the nominal dimension of a PIPE with its actual outside diameter.

For sizes from 1/8-inch through 12-inch, the NPS corresponds to the nominal inside diameter, but differs somewhat from its actual inside diameter. Early pipe manufacturers made the walls in the smaller sizes much too thick, and in correcting this error in design, they took the excess from the inside to avoid changing the sizes of the companion fittings.

For sizes larger than 12-inch, NPS corresponds to the actual outside diameter. For each nominal pipe size, the outside diameter (O.D.) remains relatively constant; the variations in wall thickness affect only the inside diameter (I.D.).

The chart on the below, shows the relationship between NPS and the diameter.

NOMINAL PIPE SIZE OUTSIDE DIAMETER (INCHES)
1/2" 0.84
3/4" 1.05
1" 1.315
1-1/4" 1.66
1-1/2" 1.9
2" 2.375
2-1/2" 2.875
3" 3.5
3-1/2" 4

Wall Thickness and Pipe Schedule

The wall thickness of tubing is measured in inches (.0035″), or by standard gauge from 7 (heaviest) to 22 (lightest) which correspond to a range of wall thicknesses. You can see by the chart at the right, not all 12 Gauge allows a thickness between 0.101 to 0.111. The typical value, which is not half way between, is used for calculation of section properties.

Once again, pipe wall thickness is a bit more complicated. Three long standing traditional designations are used to indicate wall thickness:

  • Standard wall (STD)
  • Extra Strong wall (XS), sometimes referred to as Extra Heavy wall (XH)
  • Double Extra Strong wall (XXS), sometimes referred to as Double Extra Heavy wall (XXH)

For the purpose of standardizing pipe dimensions, the American National Standards Institute (ANSI) published ANSI B36.10. That standard broadened the range of wall thicknesses, schedule numbers from schedule 10 (SCH10) through schedule 160 (SCH160). These schedule numbers indicate approximate values for 1000 times pressure-stress ratios.

Stainless steel schedule numbers from Schedule 5S through schedule 80S were added by ANSI B36.19 for sizes through 12-inch. The addition of the letter [S" after the schedule number identified it as pertaining to stainless steel.

GAUGE THICKNESS RANGE(INCHES) TYPICAL VALUE (INCHES)
22 0.025 through 0.029 0.028
20 0.031 through 0.035 0.035
19 0.038 through 0.042 0.042
18 0.044 through 0.049 0.049
17 0.053 through 0.058 0.058
16 0.060 through 0.065 0.065
15 0.066 through 0.074 0.072
14 0.075 through 0.085 0.083
13 0.087 through 0.097 0.095
12 0.101 through 0.111 0.109
11 0.112 through 0.122 0.12
10 0.126 through 0.136 0.134
9 0.140 through 0.150 0.148
8 0.157 through 0.167 0.165
7 0.175 through 0.185 0.18

Certain relationships exist among the traditional designations of STD, XS, and XXS, the ANSI schedule numbers, and the actual wall thicknesses. STD and SCH 40 are the same in sizes through 10-inch; in sizes above 10-inch, STD has a wall of 3/8-inch. XS has a wall thickness of 1/2-inch. XXS has no corresponding schedule number, but in sizes through 6-inch, XXS has a wall thickness twice as thick as XS. Stainless steel schedules 40S and 80S are identical with carbon steel designations Std and XS, respectively, through 12-inch.

References to pipe wall thickness typically mean the nominal, or average, wall thickness. Most ASTM tolerances on regular pipe products specify that wall thickness of pipe at any point is to be no more than 12 1/2% under the nominal wall thickness specified. This means that a minimum wall of 0.875 times the nominal wall could apply for regular mill rolled steel.

The following chart shows the relationship of the various NPS sizes and Schedules and the actual Outside Diameter and Wall Thickness.

NOMINAL PIPE SIZE OD SCH 5 SCH 10 SCH 40 SCH 80
1/2" 0.84 0.065 0.083 0.109 0.147
3/4" 1.05 0.065 0.083 0.113 0.154
1" 1.315 0.065 0.109 0.133 0.179
1-1/4" 1.66 0.065 0.109 0.14 0.191
1-1/2" 1.9 0.065 0.109 0.145 0.2
2" 2.375 0.083 0.109 0.154 0.218
2-1/2" 2.875 0.083 0.12 0.203 0.276
3" 3.5 0.083 0.12 0.216 0.3
3-1/2" 4 0.083 0.12 0.226 0.318
4" 4.5 0.083 0.12 0.237 0.337


APPLICATIONS

Common uses for ASTM A500 pipe include hand rails, posts, storage racks, displays, furniture, etc.
